Page Background www.flexco.com

• phone: 1-630-971-0150

155

Replacement

Parts List

EZIB-L

Flexco Impact Beds

All Bars - Light Duty

in.

24

30

36

42

48

54

60

72

mm

600

750

900

1050

1200

1350

1500

1800

BARS REQUIRED SLIDER

2

2

2

2

2

2

2

2

IMPACT

4

4

5

7

8

10

11

12

BAR BOLT KITS REQUIRED

16

16

19

25

28

34

37

40

BAR SUPPORTS REQUIRED

4

4

5

7

8

10

11

12

IMPACT BED

SIZE

CEMA C OR D, 5” (125mm)

Idlers

CEMA C OR D, 6” (150mm)

IDLERS

24"-36"

(600-900mm)

Shim idler up .5" (12.5mm)

No Kits Required

42"-72"

(1050-1800mm)

No Kits Required

Use (1) SHIM-KITL;

Shim up .5" (12.5mm)

Shim Requirements

IMPACT BED

SIZE

CEMA E, 6” (150mm)

IDLERS

CEMA E, 7” (175mm)

IDLERS

36"-60"

(900-1500mm)

Use (3) SHIM-KITL; Shim

up 1.5" (37.5mm)

Use (4) SHIM-KITL;

Shim up 2" (50mm)

72"

(1800mm)

Use (4) SHIM-KITL; Shim

up 2" (50mm)

Use (5) SHIM-KITL;

Shim up 2.5" (62.5mm)

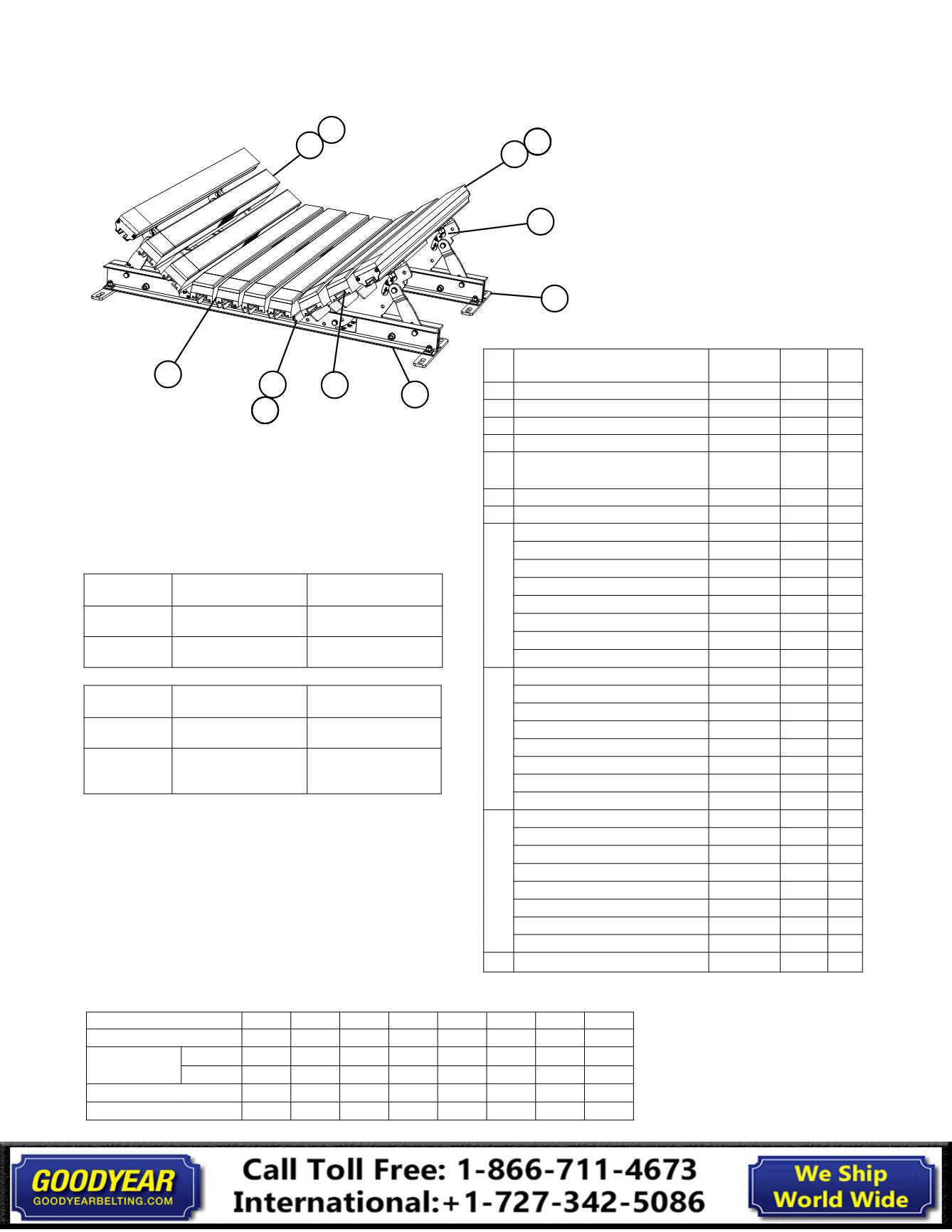

Replacement Quantities for EZIB-L

1

2

2a

6

8

1a

3

(hidden)

(hidden)

5

7

4

4a

U.S. Patent pending

P R O D U C T H A N D B O O K

Replacement Parts

REF DESCRIPTION

ORDERING

NUMBER

ITEM

CODE

WT.

LBS.

1

Slider Bar, 4' (1.2M)

SB4

78789 20.0

1a

Slider Bar, 5' (1.5M)

SB5

78790 24.1

2

Impact Bar, 4’ (1.2M)

IB4

76926 17.0

2a

Impact Bar, 5’ (1.5M)

IB5

76927 21.0

3

Bar Bolt Kit

(incl. 1 ea. 5/8” (15mm) carriage

bolt, square washer, flat washer, lock washer,

Nylock nut)

IBBK

76928

0.5

4

Impact Bar Support - L 4’ (1.2M) *

EZBS-L4

78953 16.1

4a

Impact Bar Support - L 5’ (1.5M) *

EZBS-L5

78954 20.4

5

Center Bar Mount Kit 24" (600mm) *

EZBMK-24

78944

5.2

Center Bar Mount Kit 30" (750mm) *

EZBMK-30

78945

5.7

Center Bar Mount Kit 36" (900mm) *

EZBMK-36

78946

7.5

Center Bar Mount Kit 42" (1050mm) *

EZBMK-42

78947

8.0

Center Bar Mount Kit 48" (1200mm) *

EZBMK-48

78948

9.8

Center Bar Mount Kit 54" (1350mm) *

EZBMK-54

78949 10.5

Center Bar Mount Kit 60" (1500mm) *

EZBMK-60

78950 12.3

Center Bar Mount Kit 72" (1800mm) *

EZBMK-72

78951 14.6

6

Wing Plate Kit 24" (600mm) *

EZWPK-24

78970 16.9

Wing Plate Kit 30" (750mm) *

EZWPK-30

78971 17.4

Wing Plate Kit 36" (900mm) *

EZWPK-36

78972 21.2

Wing Plate Kit 42" (1050mm) *

EZWPK-42

78973 26.2

Wing Plate Kit 48" (1200mm) *

EZWPK-48

78974 30.1

Wing Plate Kit 54" (1350mm) *

EZWPK-54

78975 35.6

Wing Plate Kit 60" (1500mm) *

EZWPK-60

78976 39.0

Wing Plate Kit 72" (1800mm) *

EZWPK-72

78977 46.7

7

Cross Stringer Kit 24" (600mm) *

EZCSK-24

78978

49.2

Cross Stringer Kit 30" (750mm) *

EZCSK-30

78979

56.5

Cross Stringer Kit 36" (900mm) *

EZCSK-36

78980

63.8

Cross Stringer Kit 42" (1050mm) *

EZCSK-42

78981

70.8

Cross Stringer Kit 48" (1200mm) *

EZCSK-48

78982

78.5

Cross Stringer Kit 54" (1350mm) *

EZCSK-54

78983

85.8

Cross Stringer Kit 60" (1500mm) *

EZCSK-60

78984

93.1

Cross Stringer Kit 72" (1800mm) *

EZCSK-72

78985

99.1

8

Shim Kit Light Duty

(incl. 4 shims)

SHIM-KITL 77548

13.6

*Hardware Included

Lead time: 1 working day
