Replacement
Parts List
EZSB-C
Flexco Slider Beds
CoreTech™ Rolls
IMPACT BED
SIZE
CEMA C OR D, 5” (125mm)
Idlers
CEMA C OR D, 6” (150mm)
IDLERS
24"-36"
(600-900mm)
Shim idler up .5" (12.5mm)
No Kits Required
42"-72"
(1050-1800mm)
No Kits Required Use (1) SHIM-KITL; Shim
up .5" (12.5mm)
in.
24
30
36
42
48
54
60
72
mm
600
750
900
1050 1200 1350 1500 1800
ROLLS REQUIRED
2
2
2
2
2
2
2
2
BARS REQUIRED SLIDER
4
4
4
6
6
8
8
8
BAR BOLT KITS REQUIRED
8
8
8
12
12
16
16
16
Shim Requirements
IMPACT BED
SIZE
CEMA E, 6” (150mm)
IDLERS
CEMA E, 7” (175mm)
IDLERS
36"-60"
(900-1500mm)
Use (3) SHIM-KITL; Shim
up 1.5" (37.5mm)
Use (4) SHIM-KITL; Shim
up 2" (50mm)
72"
(1800mm)
Use (4) SHIM-KITL; Shim
up 2" (50mm)
Use (5) SHIM-KITL; Shim
up 2.5" (62.5mm)

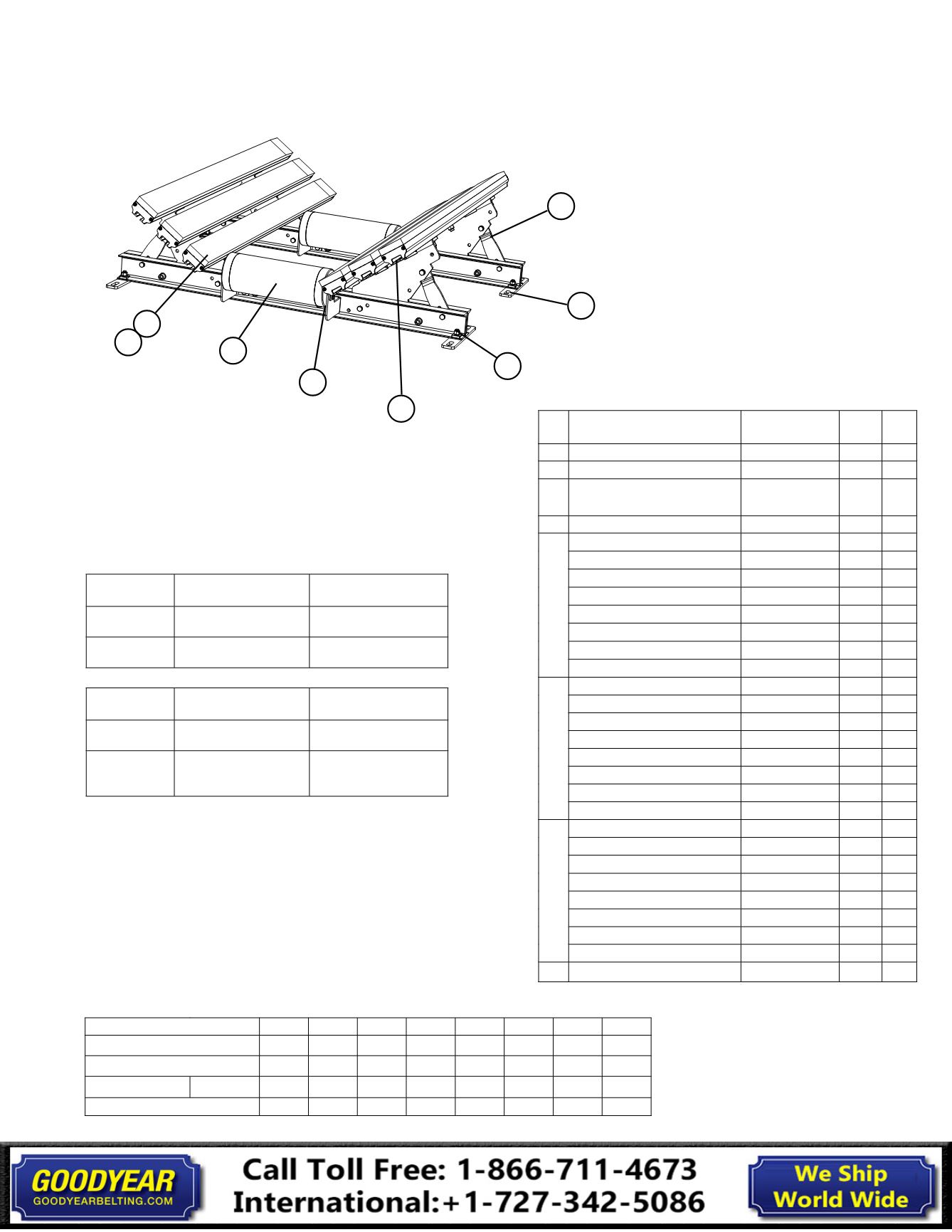

Replacement Quantities for EZSB-C
1
1a
4
2
3
(hidden)
5
6
7
U.S. Patent pending
P R O D U C T H A N D B O O K
Replacement Parts
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
Slider Bar, 4' (1.2M)
SB4
78789 20.0
1a
Slider Bar, 5' (1.5M)
SB5
78790 24.1
2
Bar Bolt Kit
(incl. 1 ea. 5/8" (15mm)
carriage bolt, square washer, flat washer,
lock washer, Nylock nut)
IBBK
76928
0.5
3
Slider Roll Mount Kit *
EZRMK
78952
5.1
4
CoreTech
™
Roll 24" (600mm)
N6D3T-24-9-A45 26107
9.1
CoreTech Roll 30" (750mm)
N6D3T-30-11-A45 26108 10.6
CoreTech Roll 36" (900mm)
N6D3T-36-13-A45 26109 12.3
CoreTech Roll 42" (1050mm)
N6D3T-42-15-A45 26110 13.9
CoreTech Roll 48" (1200mm)
N6D3T-48-17-A45 26111 16.1
CoreTech Roll 54" (1350mm)
N6D3T-54-19-A45 26112 17.0
CoreTech Roll 60" (1500mm)
N6D3T-60-21-A45 26113 18.1
CoreTech Roll 72" (1800mm)
N6D3T-72-25-A45 26114 21.6
5
Wing Plate Kit 24" (600mm) *
EZWPK-24
78970 16.9
Wing Plate Kit 30" (750mm) *
EZWPK-30
78971 17.4
Wing Plate Kit 36" (900mm) *
EZWPK-36
78972 21.2
Wing Plate Kit 42" (1050mm) *
EZWPK-42
78973 26.2
Wing Plate Kit 48" (1200mm) *
EZWPK-48
78974 30.1
Wing Plate Kit 54" (1350mm) *
EZWPK-54
78975 35.6
Wing Plate Kit 60" (1500mm) *
EZWPK-60
78976 39.0
Wing Plate Kit 72" (1800mm) *
EZWPK-72
78977 46.7
6
Cross Stringer Kit 24" (600mm) *
EZCSK-24
78978 49.2
Cross Stringer Kit 30" (750mm) *
EZCSK-30
78979 56.5
Cross Stringer Kit 36" (900mm) *
EZCSK-36
78980 63.8
Cross Stringer Kit 42" (1050mm) *
EZCSK-42
78981 70.8
Cross Stringer Kit 48" (1200mm) *
EZCSK-48
78982 78.5
Cross Stringer Kit 54" (1350mm) *
EZCSK-54
78983 85.8
Cross Stringer Kit 60" (1500mm) *
EZCSK-60
78984 93.1
Cross Stringer Kit 72" (1800mm) *
EZCSK-72
78985 99.1
7
Shim Kit Light Duty
(incl. 4 shims)
SHIM-KITL
77548 13.6
*Hardware Included
Lead time: 1 working day
