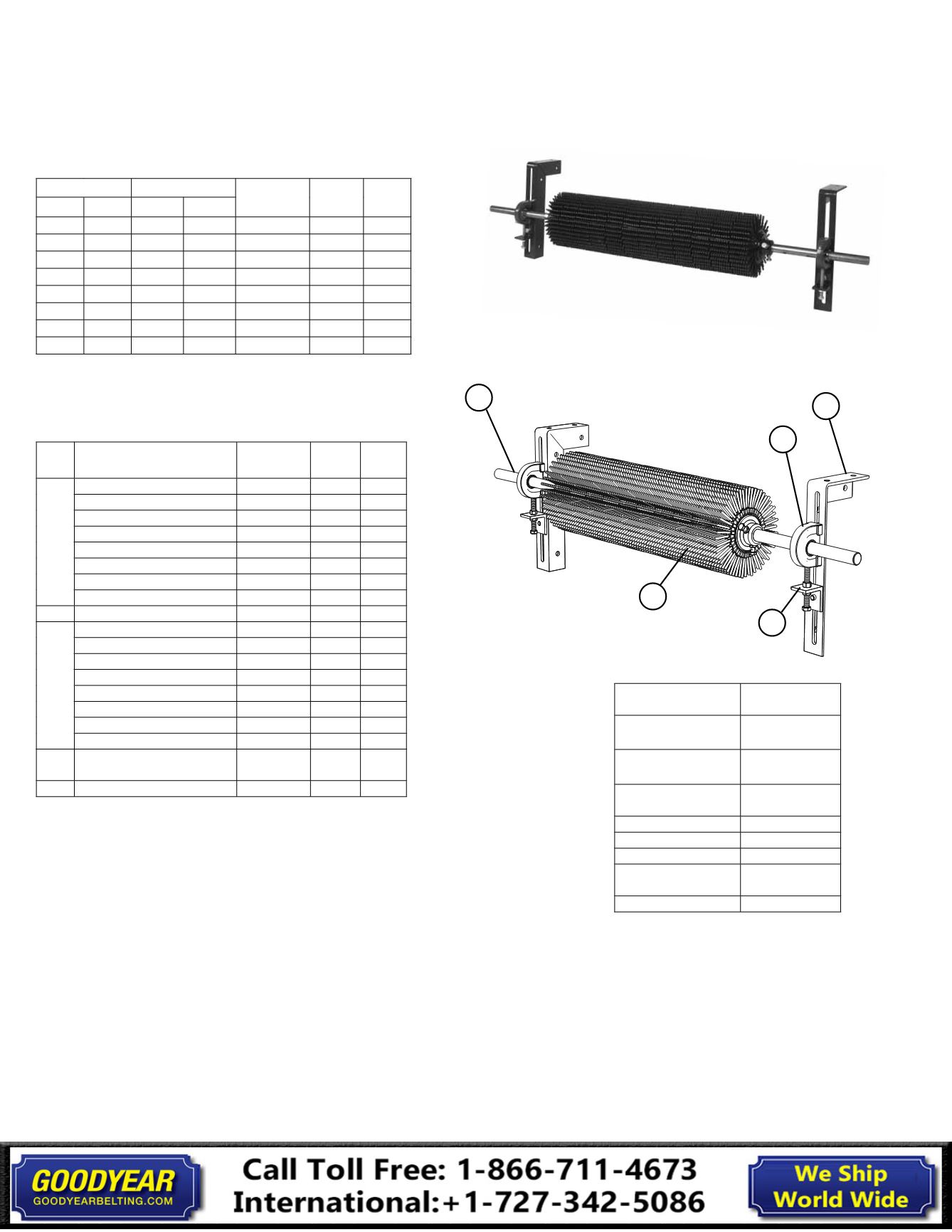

Chevron Belt Cleaner
Product Notes:
• Free-rotating. Works only when the belt is running.
• Self-cleaning. Finger length, spacing and the rotary action allows carryback to fall
free instead of clogging.
• Easy to install. Few parts and step-by-step instructions make the job simple.
• Long-wearing SBR rubber. Drum life ranges from 1 to 3 years depending upon the
application conditions and the material being conveyed.
• Works on reversing belts.
Replacement Parts
Specifications
2
3
1
4
5
Product Ordering
Information
Chevron
Belt Cleaner
Belt Speed
Up to 500 fpm
(2.5M/sec)
Vertical and
Horizontal Clearance 10" (250mm)
Temperature Range -30ºF to 180ºF
(-35ºC to 82ºC)
Maximum Chevron or
Cleat Height
1" (25mm)
Finger Length
2" (50mm)
Rubber Durometer
45A
Overall Diameter
9-1/2" (238mm)
Shaft Length
Belt Width plus
30" (750mm)
Shaft Diameter
1-3/16" (30mm)
P R O D U C T H A N D B O O K
BELT WIDTH DRUM WIDTH ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
in.
mm in.
mm
18
450
18
450
CBC18
76668 76.7
24
600
24
600
CBC24
76669 87.9
30
750
30
750
CBC30
76670 99.0
36
900
36
900
CBC36
76671 110.1
42
1050
42
1050
CBC42
76672 121.2
48
1200
48
1200
CBC48
76673 132.4
54
1350
54
1350
CBC54
76674 143.5
60
1500
60
1500
CBC60
76675 154.6
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
18" (450mm) Drum Shaft
CDS18
76684 15.1
24" (600mm) Drum Shaft
CDS24
76685 17.0
30" (750mm) Drum Shaft
CDS30
76686 18.9
36" (900mm) Drum Shaft
CDS36
76687 20.8
42" (1050mm) Drum Shaft
CDS42
76688 22.7
48" (1200mm) Drum Shaft
CDS48
76689 24.6
54" (1350mm) Drum Shaft
CDS54
76690 26.4
60" (1500mm) Drum Shaft
CDS60
76691 28.3
2
Chevron Pillow Block*
CPB 76692
1.2
3
18" Replacement Drum*
CRD18
76676 27.7
24" Replacement Drum*
CRD24
76677 37.0
30" Replacement Drum*
CRD30
76678 46.2
36" Replacement Drum*
CRD36
76679 55.4
42" Replacement Drum*
CRD42
76680 64.7
48" Replacement Drum*
CRD48
76681 73.9
54" Replacement Drum*
CRD54
76682 83.2
60" Replacement Drum*
CRD60
76683 92.4
4
Mounting Bracket Kit
(1 Right and 1 Left)
EZS2MBK 75666 13.0
5
Adjusting Bracket Kit*
(1 ea.)
EZS2ABK 75664
2.0
Lead time: 1 working day
*Hardware Included
Lead time: 1 working day
