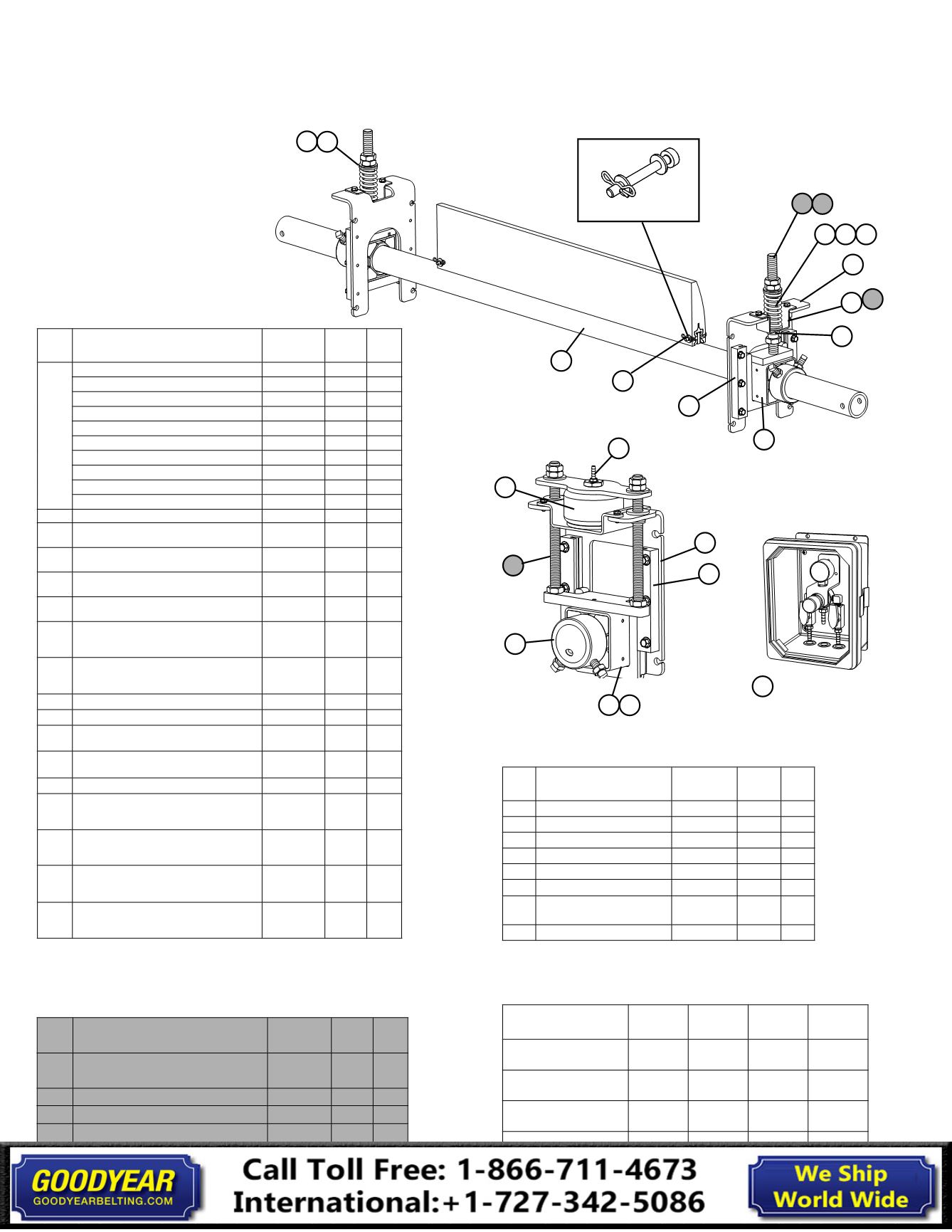

Replacement Parts
Spring Tensioner Selection Chart
Replacement
Parts List
MDWS
Secondary Cleaner
DryWipe for Removing Water
Secondary Air Tensioner 2
Replacement Parts
PAT Control Box
3
1
3a
2
4
Detail view of Item 2
3b
CLEANER SIZE
77879
SST2HD-W
77880
SST2HD-S
77881
SST2HD-B
79041
SST2HD-G
MDWS 24" - 30"
(600 - 750 mm)
X
MDWS 36" - 60"
(900 - 1500 mm)
X
MDWS 72" - 84"
(1800 - 2100 mm)
X
MDWS 96" (2400 mm)
X
10
6
11
12
9
13
14
15
16
17
5
8 8a
For replacement
blades see page 118
7
L1 L2
L4
L3
Legacy Replacement Parts for Tensioners
shipped prior to Dec. 31, 2014*
* See note on page 110 to verify if legacy parts are needed.
P R O D U C T H A N D B O O K
L1
Adjusting Rod Kit
(includes 1 rod, 2 nuts, 1 bushing, 1 washer)
for belts 24" - 60" (600-1500mm)
STAK
75847 2.9
L2
HD Adjusting Rod Kit
(includes 1 rod, 2 nuts, 1 HD bushing, 1 washer)
for belts 72"-84" (1800-2100mm)
STAKHD 75892 3.0
L3 Legacy SST Hat Channel Kit
SSTHK 79070 1.5
L4 SAT2 Adjusting Rod Kit
SAT2AK 78733 5.0
–
SST Tensioner Bushing Update Kit
(includes 2 lower bushings, 2 sleeves, 2 nuts)
SST-BUK 76943 0.3
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
24" (600mm) Pole
MSPP30 75804 46.0
30" (750mm) Pole
MSPP36 75805 50.5
36" (900mm) Pole
MSPP42 75806 55.5
42" (1050mm) Pole
MSPP48 75807 60.0
48" (1200mm) Pole
MSPP54 75808 64.0
54" (1350mm) Pole
MSPP60 75809 67.0
60" (1500mm) Pole
MSPP66 76695 76.0
72" (1800mm) Pole
DWP-72 75883 90.0
84" (2100mm) Pole
DWP-84 76815 100.0
96 (2400mm) Pole
DWP-96 79060 110.0
2 Blade Pin Kit*
(1 ea.)
MSPBPK 75831 0.1
3 Tension Spring - White
(1 ea.)
for belts 18" - 30" (450-750mm)
STS-W 75846 0.5
3a Tension Spring - Silver
(1 ea.)
for belts 36" - 60" (900-1500mm)
STS-S 75843 0.8
3b Tension Spring - Black
(1 ea.)
for belts 72" - 84" (1800-2100mm)
STS-B 75844 1.0
3c Tension Spring - Gold
(1 ea.)
for belts 96" (2400mm)
STS-G 78142 1.3
4
HD Torsion Pole Mount*
(1 ea.)
(includes adjusting rod, 3 nuts & sleeve)
(See 8 & 8a for bushings)
SSTHDPM 77868 15.0
5
SST HD Mounting Base Kit*
(includes 1 mounting base, 2 slide guides, top
hat bracket & bottom bushing)
SSTHDMK 77870 10.2
6 SST Hat Bracket
(pair)
SSTHB 79582 3.5
7 SST Slide Guide Kit*
(incl. 2 slide guides)
STGK2 77867 1.1
8 SST Bushing Kit - White/Silver
(includes 2 bushings)
SSTBK-W 76636 0.1
8a SST Bushing Kit - Black/Gold
(includes 2 bushings)
SSTBK-B 76637 0.1
9 SST Lower Bushing Kit
(pair)
SSTLBK 79493 0.1
–
HD Spring Tensioner* - White
includes 2 each items 3, 4, 5 & 8)
for belts 18" - 30" (450-750mm)
SST2HD-W 77879 60.6
–
HD Spring Tensioner* - Silver
(includes 2 each items 3a, 4, 5 & 8)
for belts 36" - 60" (900-1500mm)
SST2HD-S 77880 61.4
–
HD Spring Tensioner* - Black
(includes 2 each items 3b, 4, 5 & 8a)
for belts 72" - 84" (1800-2100mm)
SST2HD-B 77881 62.0
–
HD Spring Tensioner* - Gold
(includes 2 each items 3c, 4, 5 & 8a)
for belts 96" (2400mm)
SST2HD-G 79041 62.6
*Hardware Included
Lead time: 1 working day
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
10 SAT2 w/PAT Control Box SAT2PAT 78735 43.5
11 SAT2 w/o Control Box
SAT2NCB 78703 41.0
12 SAT Air/Water Bag Kit
SATB 76083 5.1
13 SAT 1/8" Hose Barb Kit
SATHB 76084 0.1
14 SAT2 Mounting Base Kit
SAT2MK 78704 11.6
15 ST Slide Guide Kit
STGK2 77867 1.1
16 SAT2 Torsion Pole Mount
(incl. threaded rods & 6 nuts)
SAT2PM 78732 11.1
17 PAT Control Box
PACB 78683 11.0
