Specifications
& Guidelines

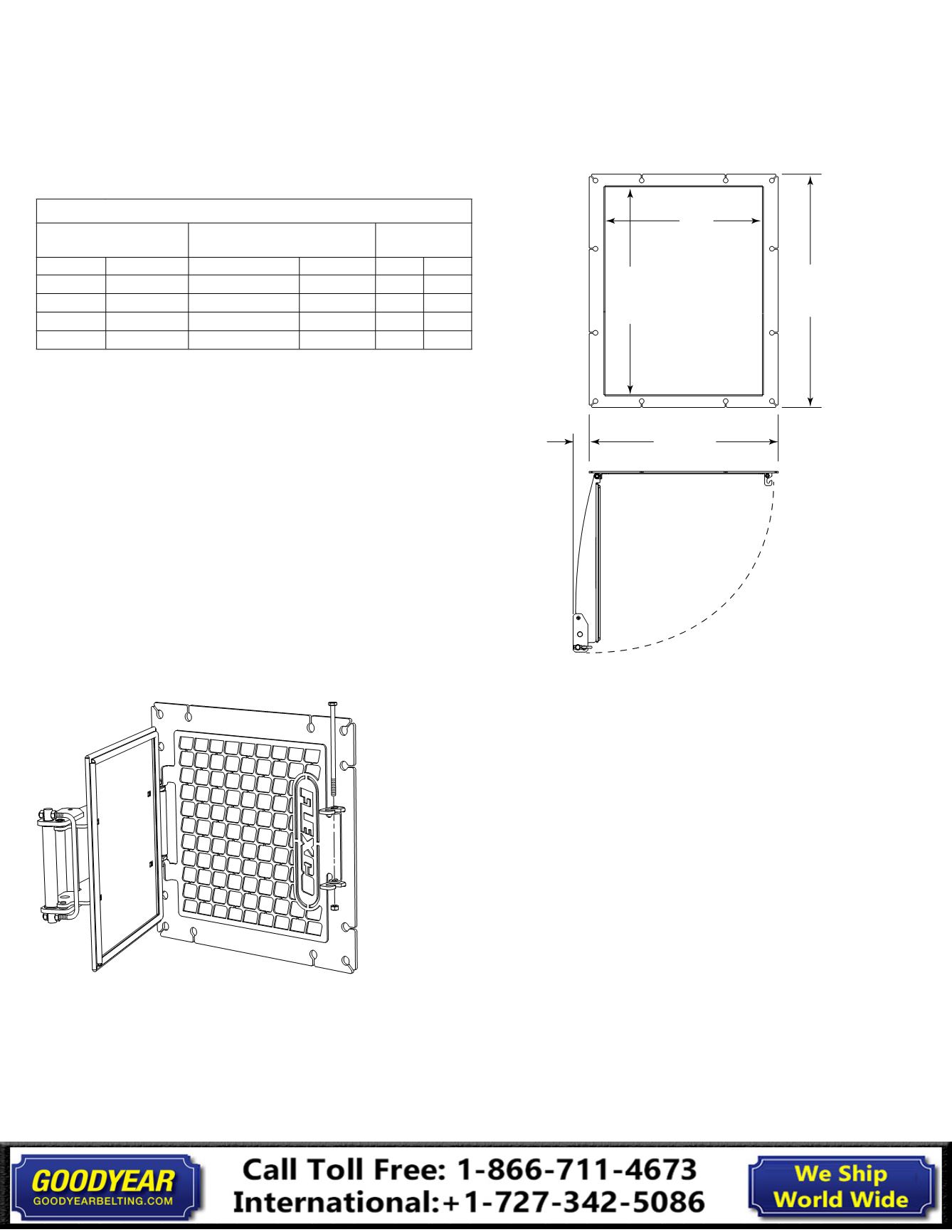

Inspection Door
Specifications:
• Temperature Rating ........................................-70°F to 350°F (-55°C to 175°C)
Inspection Door Specifications
Door (Opening) Size
(Width, Length)
Outer Dimensions
(Width, Length)
Height
in.
mm
in.
mm
in.
mm
12 W x 12 L 300 W x 300 L 16-5/16 W x 15-3/4 L 415 W x 400 L 3-7/16
90
12 W x 18 L 300 W x 450 L 16-5/16 W x 21 3/4 L 415 W x 555 L 3-7/16
90
18 W x 24 L 450 W x 600 L 22-5/16 W x 27 3/4 L 570 W x 705 L 3-7/16
90
24 W x 24 L 600 W x 600 L 28-5/16 W x 27 3/4 L 720 W x 705 L 3-7/16
90
W
Width
W
Width
Opening
Size
L
Length
L
Length
H
Height
Screen (Optional)
Screen serves as a guard that helps keep hands and tools from being placed
into the chute/enclosure, but still allows visual access. Screen is hinged on
the same side as the door and bolted in place on the other side so it does not
require full removal for accessing the chute/enclosure. A wrench is required
to remove the bolt that holds the screen in place as a safety feature. (Holes are
sized per ANSI B11.)
