Replacement Parts - Poles
Replacement Parts - UST Tensioner
Replacement Parts - J-bolt Tensioner
† Standard components for blade widths 18"-60" (450-1500mm)
§ HD components for blade widths 72"-84" (1800-2100mm)
J-Bolt Tensioner
UST Spring Tensioner
For use in changing UST Spring
Tensioner to a J-Bolt Tensioner
14
13
15
15a
16
16a
For replacement blades
see page 108
4
9
3 8
2
5
6
2a
3a
11 11a
11b
5a
6a
1

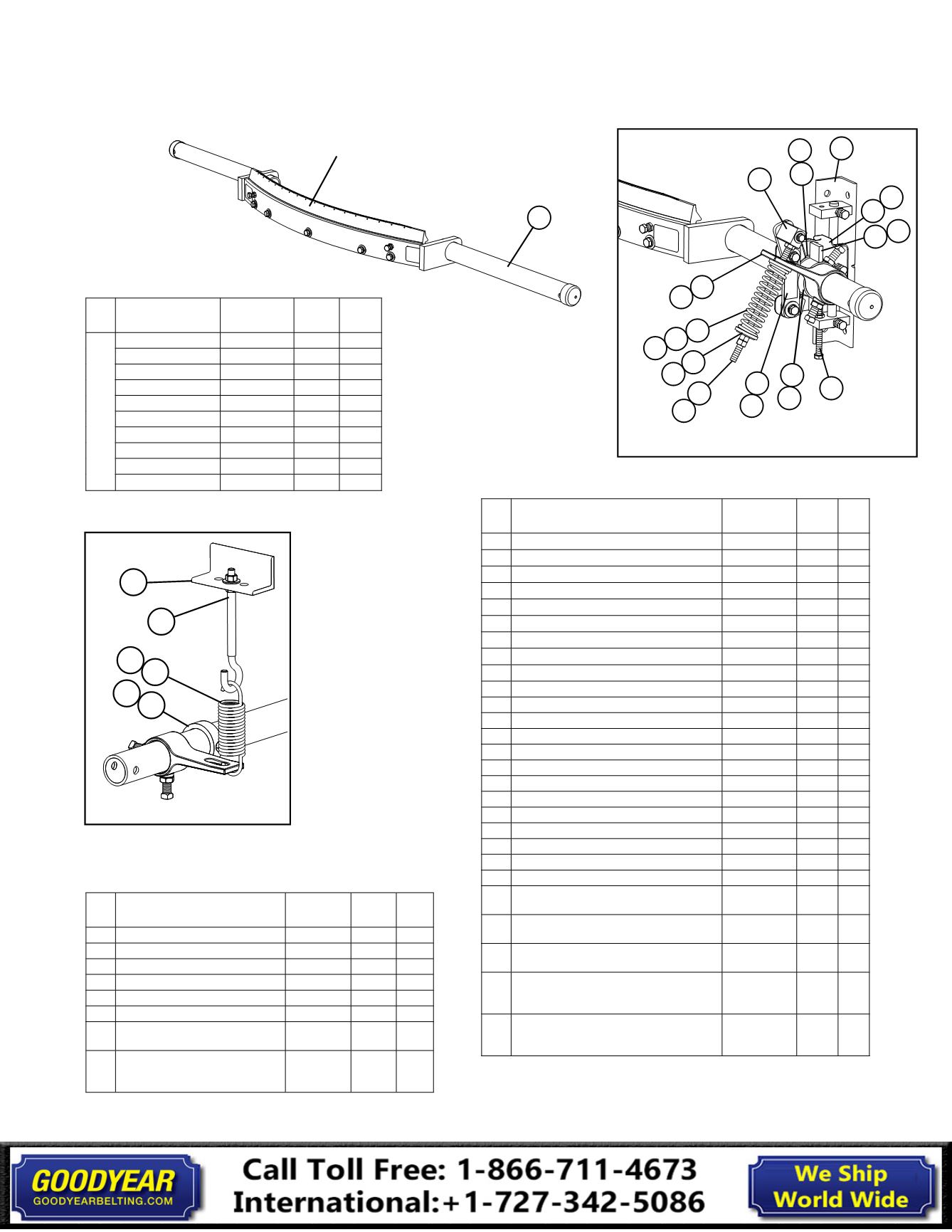

Replacement
Parts List
U-Type®
Secondary Cleaner with USTTensioner
7
10
13
7a
10a
13a
12
12a
P R O D U C T H A N D B O O K
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
13 J-Bolt (incl. locknut & washer) STJK 74417 0.7
14 J-Bolt Mount (1 ea.) STJM 74775 3.0
15 Tension Spring (1 ea.) † STTS 74419 1.4
15a HD Tension Spring (1 ea.) § HDTS 74502 2.0
16 Pole Lock Collar † EZP1PL 75641 1.1
16a HD Pole Lock Collar § MSPPL 75816 1.9
— J-Bolt Tensioner Kit † (Optional)
(incl. 2 ea. items 13, 14, 15, 16) UBTK 76977 4.7
—
HD J-Bolt Tensioner Kit §
(Optional)
(incl. 2 ea. items 13, 14, 15a, 16a)
UHDBTK 76978 5.2
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
2 Torque Arm Kit* (1 ea.) †Δ ESTAK-EST 76406 3.6
2a Torque Arm Kit HD* (1 ea.) § PSTA 75896 11.4
3 Pivot Shaft Bracket Kit* (1 ea.) †Δ UPSBK 76784 1.7
3a Pivot Shaft Bracket Kit HD* (1 ea.) § QMTPSBK 76099 4.3
4 Pivot Block Kit* (1 ea.) †Δ UPBK 76785 1.0
5 Pivot Rod Kit* (1 ea.)†Δ ESPRK 76409 1.2
5a Pivot Rod Kit HD* (1 ea.) § QMTPAK 76096 4.3
6 Bushing Kit (incl. 2 bushings) †Δ ESBK-PS 76410 0.1
6a Bushing Kit HD (incl. 2 bushings) § QMTBK-W 76098 0.1
7 Standard Pole Bearing (1 ea.) †Δ USPB2 79206 0.1
7a HD Pole Bearing (1 ea.) § UHPB2 79207 0.2
8 Adjusting Bolt Kit (1 ea.) (incl. locknut) ABU 76788 0.2
9 Mounting Bracket Kit*(1 ea.) UMBK 76789 9.7
10 Slide Plate Kit* (1 ea.) †Δ USPK 76790 4.6
10a HD Slide Plate Kit* (1 ea.) § UHSPK 76791 5.2
11 Tension Spring - Purple (1 ea.) † QMTS-P 75845 0.6
11a Tension Spring - Silver (1 ea.) Δ ESS-S 76412 1.2
11b Tension Spring - White (1 ea.) § PSTS-W 75898 1.7
12 UST Stop Collar Retrofit Kit* †Δ USTSCK 79202 5.0
12a HD UST Stop Collar Retrofit Kit* § USTSCKHD 79204 7.4
13 Stop Collar* USTSC 79299 1.5
13a HD Stop Collar* USTSCHD 79300 2.0
– UST Spring Tensioner* - Purple †(incl. 1 ea. items 2, 3, 4, 5, 6, 8, 9, 10, 11) UST-P 76794 25.0
– UST Spring Tensioner* - Silver Δ(incl. 1 ea. items 2, 3, 4, 5, 6, 8, 9, 10, 11a) UST-S 77757 25.0
– UST Spring Tensioner* - White §(incl. 1 ea. items 2a, 3a, 4, 5a, 6a, 8, 9, 10a, 11b) UST-W 76795 40.0
–
Standard Mounting Kit*
(incl. 1 ea. items 8, 9, 10) † Δ
(for blade widths 18"- 60" (450 - 1500mm)
USMK 76792 14.6
–
HD Mounting Kit*
(incl. 1 ea. items 8, 9, 10a) §
(for blade widths 72"- 96" (1800 - 2400mm)
UHMK 76793 15.5
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
18" (450mm) Pole USP18/450 76772 45.0
24" (600mm) Pole USP24/600 76773 50.0
30" (750mm) Pole USP30/750 76774 56.0
36" (900mm) Pole USP36/900 76775 60.0
42" (1050mm) Pole USP42/1050 76776 65.0
48" (1200mm) Pole USP48/1200 76777 71.0
54" (1350mm) Pole USP54/1350 76778 76.0
60" (1500mm) Pole USP60/1500 76779 82.0
72" (1800mm) Pole USP72/1800 76780 125.0
84" (2100mm) Pole USP84/2100 76781 138.0
*Hardware included
† Standard components for blade widths 18"-42" (450-1050mm)
Δ Standard components for blade widths 48"-60" (1200-1500mm)
§ HD components for blade widths 72"-84" (1800-2100mm)
