35

DQC116

877.963.4966 •

dixonvalve.com

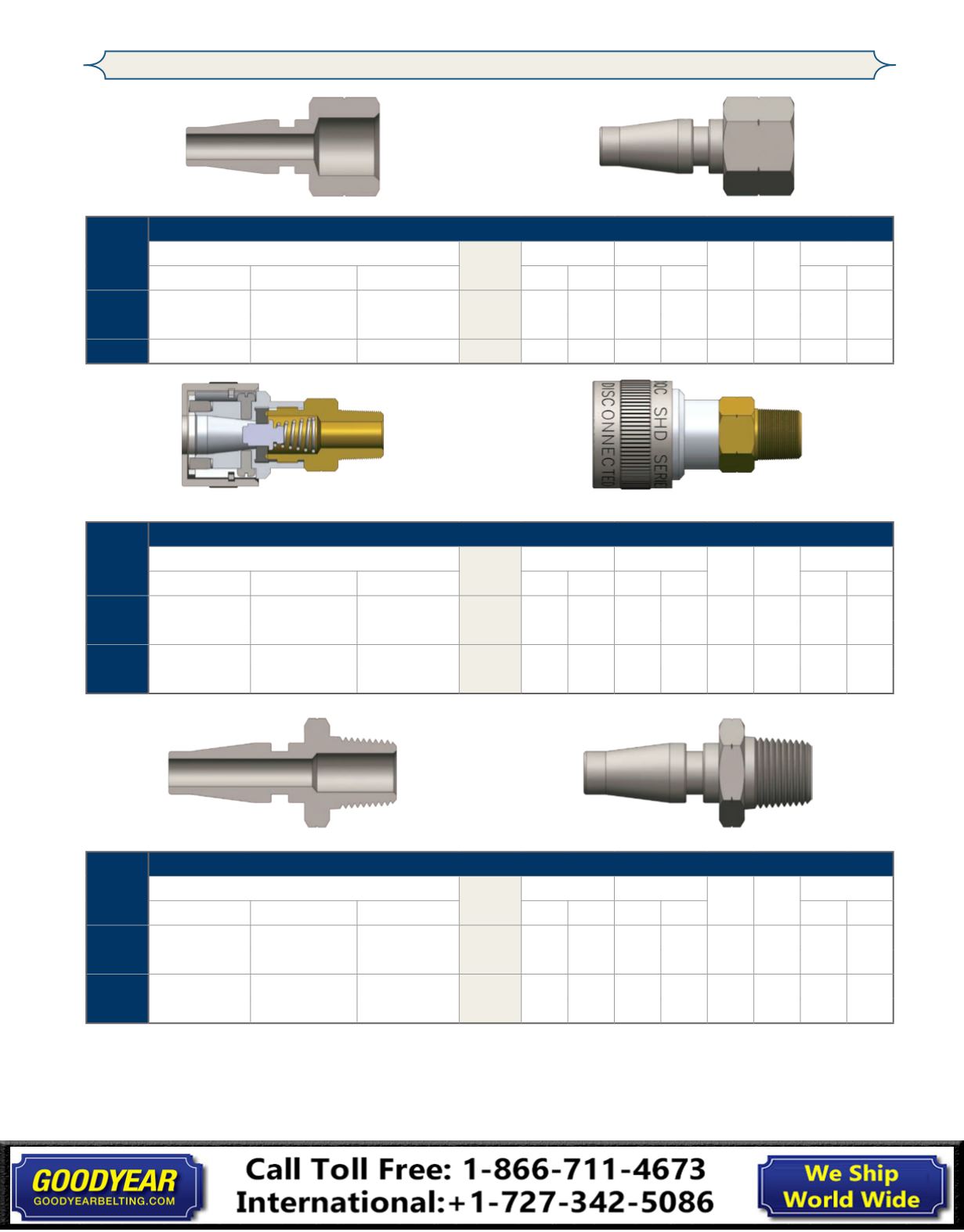

SHD-Series Pneumatic Couplings

Body

Size

SHD-Series Schrader Interchange Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

SHD2F1 1/8" - 27 NPT

steel

$3.62

1.49 37.9 0.79 20.1 11/16" 0.04 10 100

1/4"

SHD2F2 1/4" - 18 NPT

steel

3.62

1.62 41.2 0.79 20.1 11/16" 0.07 10 100

1/2"

SHD4F3 3/8" - 18 NPT

steel

7.40

1.79 45.5 1.01 25.7 7/8" 0.14 10 50

Body

Size

SHD-Series Schrader Interchange Coupler (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2SHDM2 1/4" - 18 NPT aluminum

$18.55

2.22 56.4 1.12 28.4 11/16" 0.21 10 100

1/4"

2SHDM3 3/8" - 18 NPT aluminum

20.35

2.28 57.9 1.12 28.4 11/16" 0.22 10 100

1/2"

4SHDM3 3/8" - 18 NPT aluminum

33.68

2.55 64.8 1.50 38.1 1-1/8" 0.39 5 30

1/2"

4SHDM4 1/2" - 14 NPT aluminum

33.68

2.61 66.3 1.50 38.1 1-1/8" 0.40 5 30

Body

Size

SHD-Series Schrader Interchange Nipple (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

SHD2M1 1/8" - 27 NPT

steel

$3.58

1.54 39.1 0.79 20.1 11/16" 0.05 10 100

1/4"

SHD2M2 1/4" - 18 NPT

steel

3.58

1.72 43.7 0.79 20.1 11/16" 0.05 10 100

1/2"

SHD4M3 3/8" - 18 NPT

steel

7.18

1.81 46.0 1.01 25.7 7/8" 0.12 10 50

1/2"

SHD4M4 1/2" - 14 NPT

steel

7.40

1.87 47.5 1.01 25.7 7/8" 0.12 10 50
