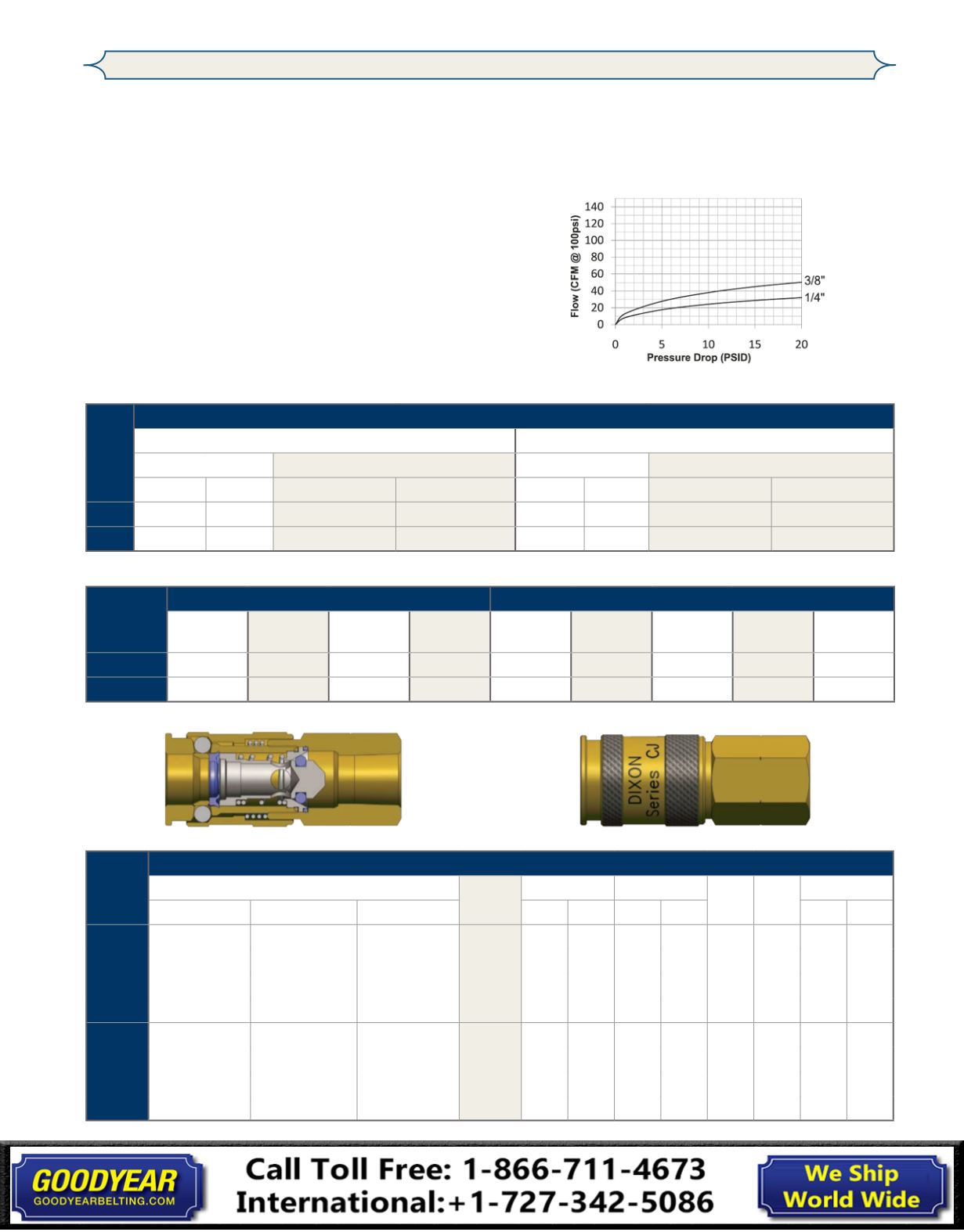

CJ-Series Pneumatic Couplings

Interchange Data:

European High-Flow Interchange

¼" interchanges with Coilhose Megaflow, CEJN 320, and

Rectus 25KA/26KA

⅜" interchanges with Rectus 27KA and Series 410

Materials:

Machined components are manufactured using solid steel or

brass bar stock.

Stainless steel springs. Carbon steel balls and retaining

rings.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

Seal Components:

Nitrile (Buna-N) pneumatically energized seals are standard,

providing a temperature range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Rated Pressure Chart:

Body

Size

CJ-Series European High-Flow Interchange (Connected)

Brass Coupler/Steel Plug

Brass Coupler/Plug

Maximum Working

Burst

Maximum Working

Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

1/4"

300

20

9,500

655

300

20

7,200

500

3/8"

300

20

8,000

552

300

20

4,400

300

Technical Specifications:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking Ball

Quantity

Air

Inclusion

Fluid

Loss

Vacuum

Rating

Flow

ΔP = 15 PSI

1/4"

-

-

-

-

6

N/A

N/A

N/R 37 CFM

3/8"

-

-

-

-

6

N/A

N/A

N/R 67 CFM

Body

Size

CJ-Series European Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2CJF2-B 1/4" - 18 NPT

brass

$16.15

2.32 59.0 0.92 23.4 3/4" 0.26 10 100

1/4"

2CJBF2-B 1/4" - 19 BSPP brass

16.15

2.32 59.0 0.92 23.4 3/4" 0.26 10 100

1/4"

2CJF3-B 3/8" - 18 NPT

brass

23.21

2.32 59.0 0.92 23.4 3/4" 0.27 10 100

1/4"

2CJBF3-B 3/8" - 19 BSPP brass

23.21

2.32 59.0 0.92 23.4 3/4" 0.27 10 100

3/8"

3CJF3-B 3/8" - 18 NPT

brass

33.00

2.54 64.5 1.091 27.7 15/16" 0.46 10 50

3/8"

3CJBF3-B 3/8" - 19 BSPP brass

33.00

2.54 64.5 1.09 27.7 15/16" 0.46 10 50

3/8"

3CJF4-B 1/2" - 14 NPT

brass

35.34

2.68 68.0 1.09 27.7 15/16" 0.51 10 50

3/8"

3CJBF4-B 1/2" - 14 BSPP brass

35.34

2.68 68.0 1.09 27.7 15/16" 0.51 10 50
