38

DQC116

877.963.4966 •

dixonvalve.com

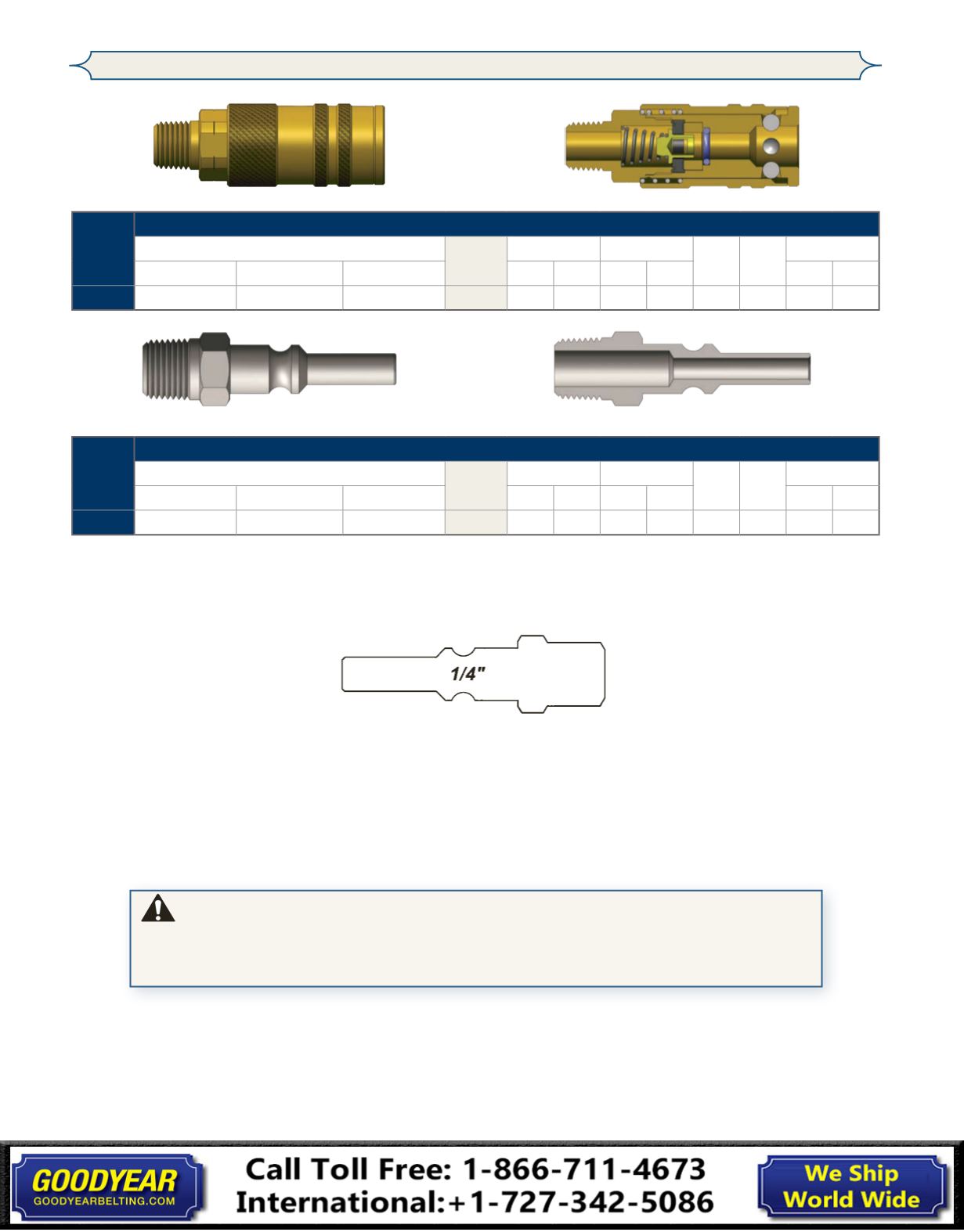

L-Series Pneumatic Couplings

Body

Size

L-Series Lincoln Interchange Coupler (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2LM2-B 1/4"-18 NPT

brass

$14.19

2.62 66.5 0.90 22.9 3/4" 0.24 10 100

Body

Size

L-Series Lincoln Interchange Nipple (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

L2M2

1/4" - 18 NPT

steel

$4.83

2.25 57.2 0.65 16.5 9/16" 0.06 10 100

L Series Profile

It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never

install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long,

between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety

devices, such as a safety check valve and safety cable should be installed in case there is a hose or

coupling failure.
