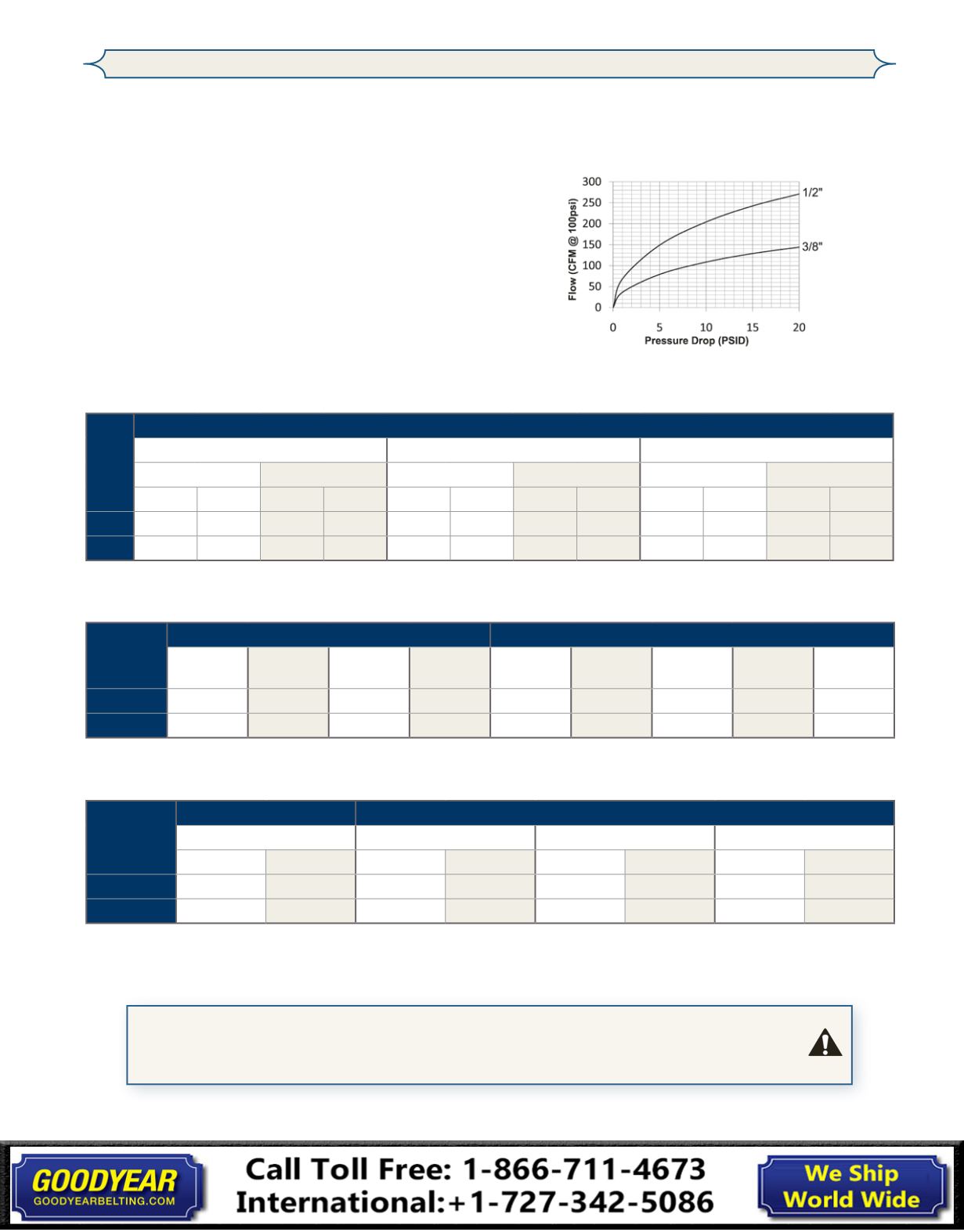

DQC116

877.963.4966 •

dixonvalve.com

Interchange Data:

Bowes Interchange Bayonet Style

Interchangeable with Bowes 51000-Series, National

Series 'B', Dixlock™, MacDonald Quick-Action

Materials:

Machined components are manufactured using solid steel,

brass, or 303 stainless steel bar stock.

Phosphor Bronze retaining ring and spring maximize

corrosion resistance and extend service life.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

Dust cap bead chain constructed of stainless steel.

Nitrile (Buna-N) pneumatically energized seals are standard,

temperature range

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Seal Components:

N-Series Pneumatic Couplings

Rated Pressure Chart:

Body

Size

N-Series Bowes Interchange (Connected)

Steel Coupler/Plug

Brass Coupler/Plug

303 Stainless Steel Coupler/Plug

Max. Working

Burst

Max. Working

Burst

Max. Working

Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

3/8"

500

35 7,000 480

-

-

-

-

-

-

-

-

1/2"

500

35 11,000 755

300

20 8,200 565

500

35 12,600 865

Technical Specifications:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking

Mechanism

Air

Inclusion

Fluid

Loss

Vacuum

Rating

Flow

ΔP = 10 PSI

3/8"

-

-

-

-

Latch Tabs N/A

N/A

N/R 108 CFM

1/2"

MIL-C-3486 A-A-50431A -

-

Latch Tabs N/A

N/A

N/R 204 CFM

List Price Option Adders:

Body

Size

Seals

Staked Ferrule Option

FKM

1/2" Barb

3/4" Barb

3/4" Stainless Barb

Prefix

Add $

Suffix

Add $

Suffix

Add $

Suffix

Add $

3/8"

F-

N/A

-

N/A

-

N/A

-

N/A

1/2"

F-

$5.80

-WF43

$8.15

-WF63

$8.15

-WFS63

$10.80

It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never

install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between

the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such

as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
