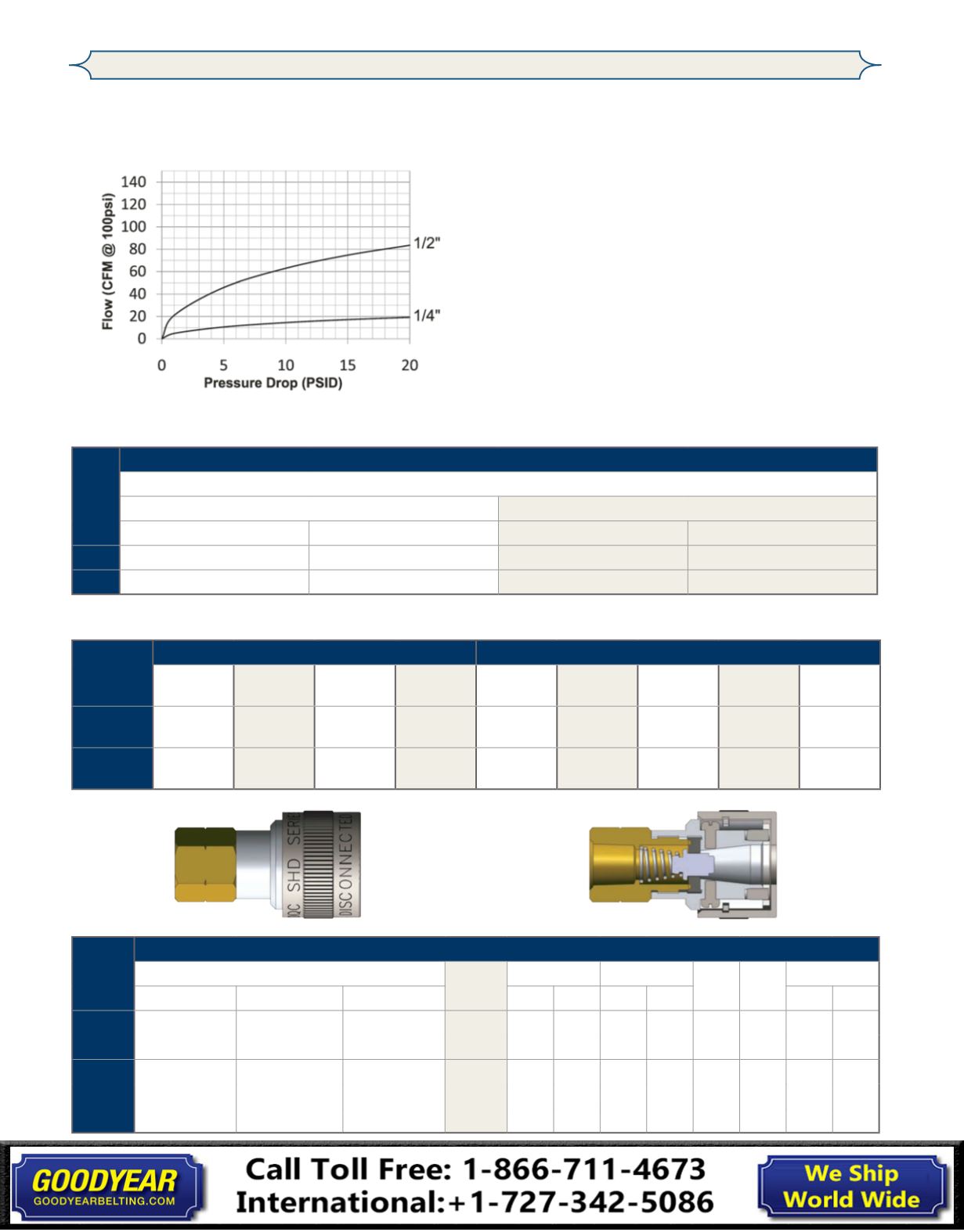

SHD-Series Pneumatic Couplings

Interchange Data:

Schrader Twist-Lock Interchange

Parker Twist-Lock, Tomco Series-TL, Foster SHD

Materials:

Machined components are manufactured using solid steel,

brass, or aluminum bar stock.

Stainless steel toggle-pawls and springs. Carbon steel

retaining rings.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

Adapter components are constructed of brass.

Sleeves are constructed of steel.

Nitrile (Buna-N) seals are standard providing a temperature

range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Seal Components:

Body

Size

SHD-Series Schrader Interchange (Connected)

Coupler/Steel Plug

Maximum Working

Burst

PSI

Bar

PSI

Bar

1/4"

300

20

6,500

448

1/2"

300

20

13,400

924

Rated Pressure Chart:

Technical Specifications:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking

Mechanism

Air

Inclusion

Fluid

Loss

Vacuum

Rating

Flow

ΔP = 15 PSI

1/4"

-

-

-

-

Toggle-

Pawls

N/A

N/A

N/R 17 CFM

1/2"

-

-

-

-

Toggle-

Pawls

N/A

N/A

N/R 75 CFM

Body

Size

SHD-Series Schrader Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2SHDF2 1/4" - 18 NPT aluminum

$18.55

2.10 53.3 1.12 28.4 11/16" 0.21 10 100

1/4"

2SHDF3 3/8" - 18 NPT aluminum

20.35

2.18 55.4 1.12 28.4 11/16" 0.24 10 100

1/2"

4SHDF3 3/8" - 18 NPT aluminum

33.68

2.59 65.8 1.50 38.1 1-1/8" 0.44 5 30

1/2"

4SHDF4 1/2" - 14 NPT aluminum

33.68

2.66 67.6 1.50 38.1 1-1/8" 0.44 5 30

1/2"

4SHDF6 3/4" - 14 NPT aluminum

34.80

2.81 71.4 1.50 38.1 1-1/8" 0.44 5 30
