36

DQC116

877.963.4966 •

dixonvalve.com

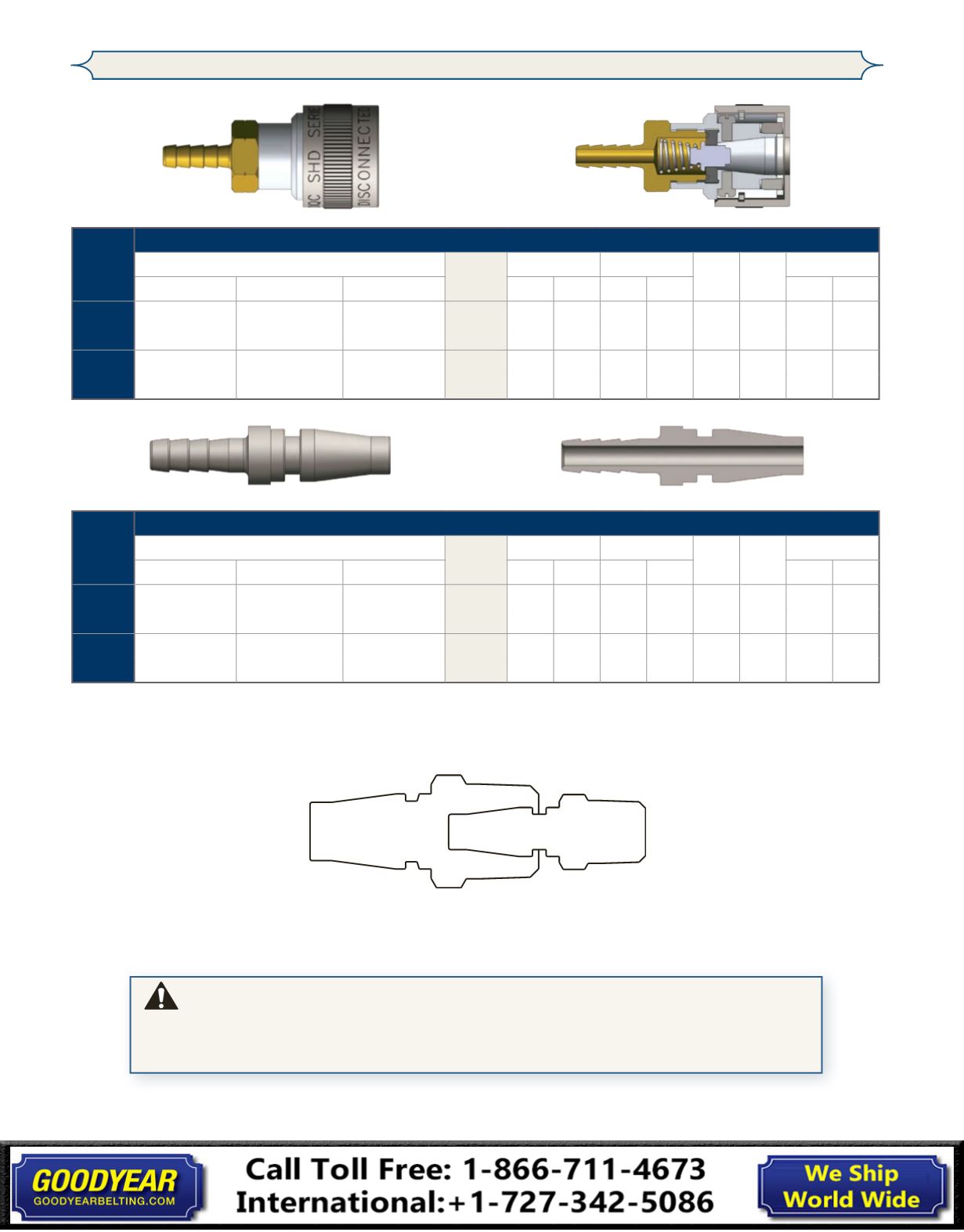

SHD-Series Pneumatic Couplings

Body

Size

SHD-Series Schrader Interchange Coupler (Standard Hose Barb)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Hose ID

Material

Inch mm Inch mm

Bag Box

1/4"

2SHDS2

1/4"

aluminum

$20.18

2.54 64.5 1.12 28.4 11/16" 0.22 10 100

1/4"

2SHDS3

3/8"

aluminum

21.97

2.67 67.8 1.12 28.4 11/16" 0.21 10 100

1/2"

4SHDS3

3/8"

aluminum

35.03

2.99 76.0 1.50 38.1 1-1/8" 0.39 5 30

1/2"

4SHDS4

1/2"

aluminum

35.40

4.23 107.4 1.50 38.1 1-1/8" 0.40 5 30

Body

Size

SHD-Series Schrader Interchange Nipple (Standard Hose Barb)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Hose ID

Material

Inch mm Inch mm

Bag Box

1/4"

SHD2S2

1/4"

steel

$3.58

2.03 51.6 0.65 16.5 -

0.04 10 100

1/4"

SHD2S3

3/8"

steel

4.76

2.22 56.4 0.65 16.5 -

0.06 10 100

1/2"

SHD4S3

3/8"

steel

8.18

2.34 59.4 0.8 20.3 -

0.11 10 50

1/2"

SHD4S4

1/2"

steel

8.55

2.53 64.3 0.8 20.3 -

0.12 10 50

SHD Series Profile

Operating pressure for couplings utilizing hose barb end connections may be dramatically reduced

to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's

catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to

application. Dixon Quick Coupling cannot assume liability for misapplication of production resulting in

equipment down-time, lost production, and/or personal injury including death.

1/4"

1/2"
