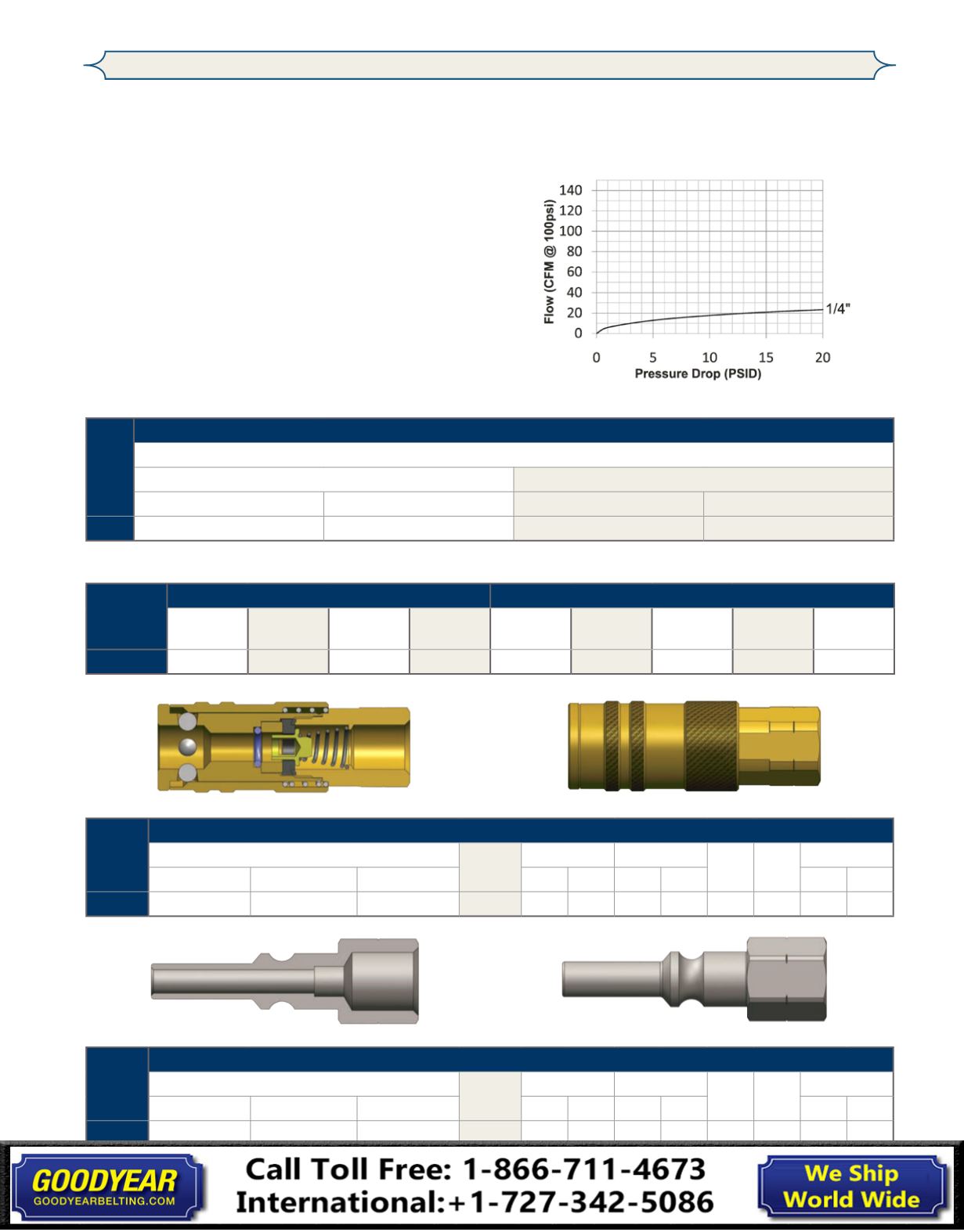

dixonvalve.comL-Series Pneumatic Couplings
Interchange Data:
•
Lincoln Long-Nose Automotive Interchange
•
Parker 70-Series, Tomco Series-1110, Coilhose Type-17
Materials:
•
Machined components are manufactured using solid brass
or steel bar stock.
•
Stainless steel springs. Carbon steel balls and retaining
rings.
•
Steel componentry is plated using ROHS Compliant
Trivalent Chrome.
•
Nitrile (Buna-N) seals are standard, providing a temperature
range of
-40°F
to
+250°F
(
-40°C
to +
121°C
).
Seal Components:
Body
Size
L-Series Lincoln Interchange (Connected)
Brass Coupler/Steel Plug
Maximum Working
Burst
PSI
Bar
PSI
Bar
1/4"
300
21
5,000
345
Rated Pressure Chart:
Technical Specifications:
Body
Size
Interchange Standards
Functional Parameters
U.S.
Military
U.S.
Government
International
Standards
ANSI/NFPA
Standards
Locking Ball
Quantity
Air
Inclusion
Fluid
Loss
Vacuum
Rating
Flow
ΔP = 15 PSI
1/4"
-
-
-
-
4
N/A
N/A
N/R 21 CFM
Body
Size
L-Series Lincoln Interchange Coupler (Female Threads)
Part Detail
List
Price
Length Maximum OD Hex
Inch
Weight
Lb
Package Qty
Part Number
Threads
Material
Inch mm Inch mm
Bag Box
1/4"
2LF2-B 1/4" - 18 NPT
brass
$14.19
2.40 61.0 0.90 22.9 3/4" 0.26 10 100
Body
Size
L-Series Lincoln Interchange Nipple (Female Threads)
Part Detail
List
Price
Length Maximum OD Hex
Inch
Weight
Lb
Package Qty
Part Number
Threads
Material
Inch mm Inch mm
Bag Box
1/4"
L2F2
1/4" - 18 NPT
steel
$4.83
2.10 53.3 0.72 18.3 5/8" 0.05 10 100
