30

DQC116

877.963.4966 •

dixonvalve.com

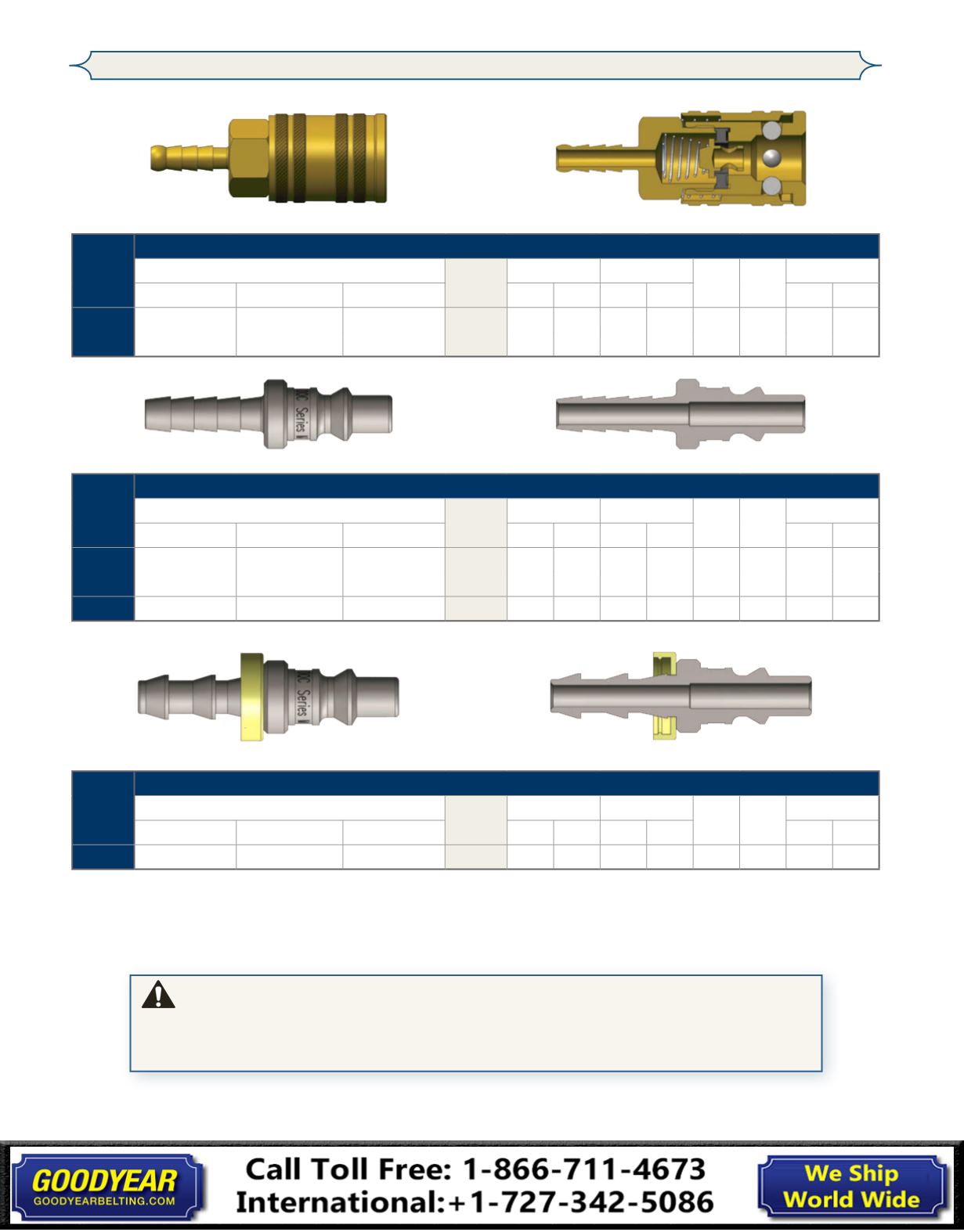

M-Series Pneumatic Couplings

Body

Size

M-Series Manual ARO Interchange Coupler (Standard Hose Barb)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Hose ID

Material

Inch mm Inch mm

Bag Box

1/4"

2MS2-B

1/4"

brass

$13.28

2.36 60.0 0.87 22.0 3/4" 0.20 10 100

1/4"

2MS3-B

3/8"

brass

14.04

2.76 70.0 0.87 22.0 13/16" 0.20 10 100

Body

Size

M-Series ARO Interchange Nipple (Standard Hose Barb)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Hose ID

Material

Inch mm Inch mm

Bag Box

1/4"

M2S2

1/4"

steel

$4.20

2.00 50.8 0.56 14.2 -

0.03 10 100

1/4"

M2S3

3/8"

steel

5.06

2.00 50.8 0.56 14.2 -

0.05 10 100

3/8"

M3S3

3/8"

steel

7.34

2.25 57.2 0.88 22.4 -

0.09 10 50

Body

Size

M-Series ARO Interchange Nipple (Push-Loc Barb)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Hose ID

Material

Inch mm Inch mm

Bag Box

1/4"

M2B2

1/4"

steel

$3.37

2.09 53.1 0.69 17.5 -

0.03 10 100

It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never

install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long,

between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety

devices, such as a safety check valve and safety cable should be installed in case there is a hose or

coupling failure.
