61
13
1
12
11
7
5
6
9 9a
10
10a
9b
8
14
(hidden)

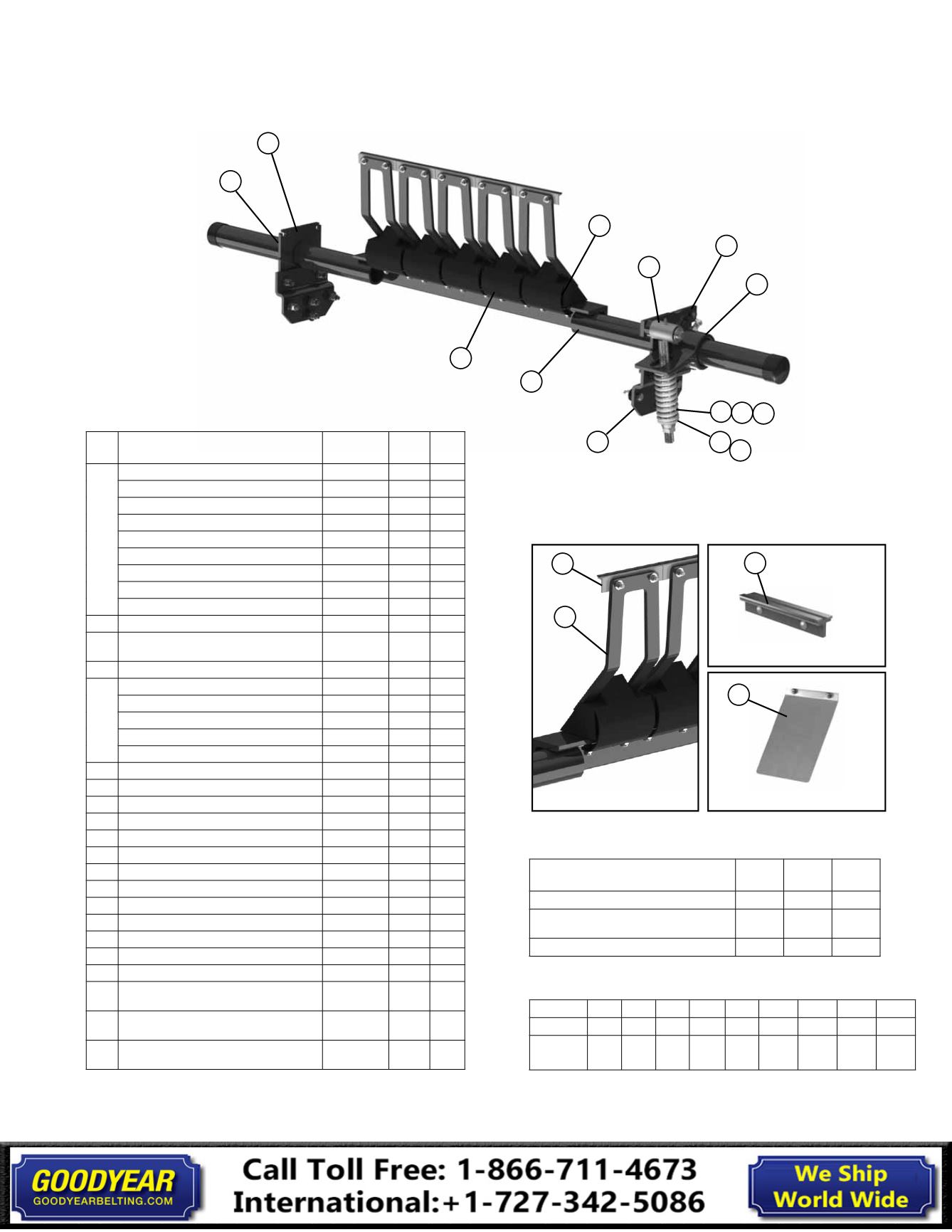

Replacement
Parts List
HV2
Segmented Blade Precleaner
HV2 Tips and Arms
HV2 Protected V-Tip
S/S Tip Shield (Optional)
Spring Tensioner Selection Chart
HV2 Precleaner Size
76074
QMT-P
76075
QMT-W
76402
QMT-S
18" SS,S,M; 24” S,S; 30" SS,S
X
24" M; 30" M; 36" SS-L; 42” SS-L; 48" SS-LL;
54" S-L; 60" S; 72” S
X
54" LL; 60" M-LL; 72" M-LL
X
2
4
3
2a
Tips Required per Cleaner Size
in.
18 24 30 36 42 48
54
60
72
mm 450 600 750 900 1050 1200 1350 1500 1800
HV2-Tips
Required
2
3
4
5
6
7
8
9
11
P R O D U C T H A N D B O O K
Replacement Parts
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
18" (450mm) Pole
H2P18
79358 49.8
24" (600mm) Pole
H2P24
79359 55.0
30" (750mm) Pole
H2P30
79360 60.1
36" (900mm) Pole
H2P36
79361 65.3
42" (1050mm) Pole
H2P42
79362 70.5
48" (1200mm) Pole
H2P48
79363 75.6
54" (1350mm) Pole
H2P54
79364 80.8
60" (1500mm) Pole
H2P60
79365 86.0
72" (1800mm) Pole
H2P72
79366 96.3
2 HV2 Tip (6”/150mm Tip, 1 ea.)
HV2T-S/S 79367
0.6
2a HV2 Protected V-Tip* (6”/150mm Tip, 1 ea.)
(for vulcanized belts only) (for abusive wear)
HV2PT 79368
0.8
3 HV2-S/S Tip Shield (optional)
HV2SSTS 79375
0.5
4
HV2 SS Suspension Arm*
H2SA6SS 79369
2.5
HV2 S Suspension Arm*
H2SA6S
79370
3.2
HV2 M Suspension Arm*
H2SA6M 79371
3.6
HV2 L Suspension Arm*
H2SA6L
79372
3.8
HV2 LL Suspension Arm*
H2SA6LL 79373
4.5
5 HV2 Cushion
H2RC 79374
4.3
6 HV2 Urethane Cushion Cover
UHVC 79453
0.5
7 Pole Lock Collar* (1 ea.)
MSPPL
75816 1.9
8 Pivot Arm Kit* (1 ea.)
QMTPAK 76096 4.3
9a Tension Spring - Purple (1 ea.)**
QMTS-P 75845 0.6
9b Tension Spring - White (1 ea.)**
PSTS-W 75898 1.7
9c Tension Spring - Silver (1 ea.)**
PSTS-S 75899 3.0
10a Bushing Kit - Purple (2 ea.) (for Item 9a)
QMTBK-P 76097 0.1
10b Bushing Kit - White (2 ea.) (for Items 9b & 9c) QMTBK-W 76098 0.2
11 Pivot Shaft Bracket Kit* (1 ea.)
QMTPSBK 76099 4.3
12 Torque Arm Kit* (1 ea.)
PSTA 75896 11.4
13 Mounting Plate Kit* (2 ea.)
MSPMPK 75811 8.3
14 Offset Bracket Kit* (1 ea.)
HOBK 76399 12.4
-
QMT Spring Tensioner* - Purple
(incl. 1 ea. Items 9a, 10a, 11, 12, 13)
QMT-P 76074 20.4
-
QMT Spring Tensioner* - White
(incl. 1 ea. Items 9b, 10b, 11, 12, 13)
QMT-W 76075 21.8
-
QMT Spring Tensioner* - Silver
(incl. 1 ea. Items 9c, 10b, 11, 12, 13)
VQMT-S 76402 23.9
*Hardware included
Note: All poles and tensioners are heavy-duty style.
Lead time: 1 working day
