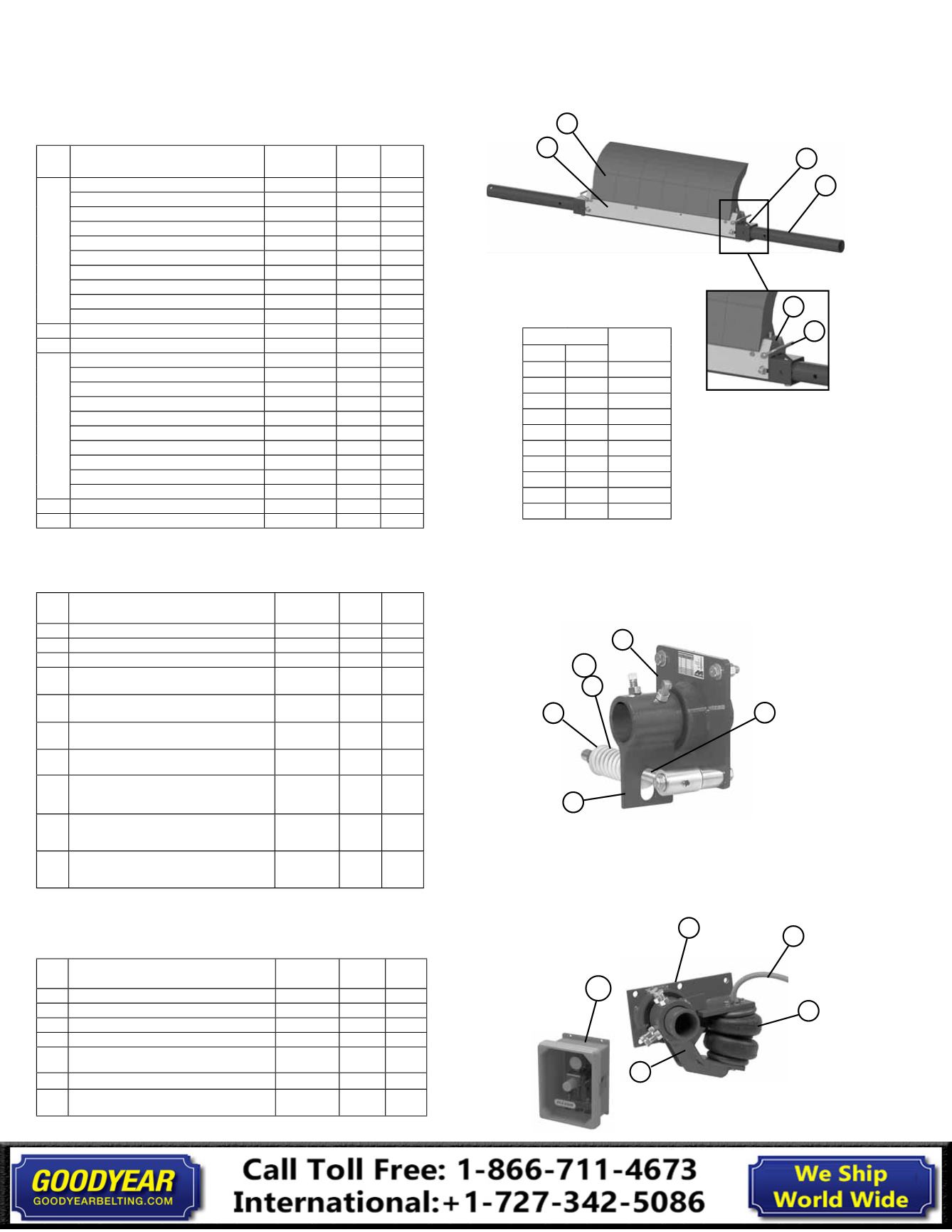

Replacement Parts List
PST Spring Tensioner Replacement Parts
4
3
1
10
7
9
8
Blades Required
per Belt Width
Blades and cartridges can be purchased
separately (see chart at left) or
preassembled as a Blade Cartridge Kit
(page 56).
11
2
5
6
10a
BELT WIDTH BLADES
REQUIRED
in.
mm
24
600
3
30
750
4
36
900
5
42 1050
6
48 1200
7
54 1350
8
60 1500
9
72 1800
11
84 2100
13
96 2400
15
Replacement
Parts List
MHCP
Heavy-Duty Cartridge Precleaner
Air/Water Tensioner Replacement Parts
12
13
14
15
16
P R O D U C T H A N D B O O K
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
24" (600mm) Center Pole *
MHP-CP24 75961 19.0
30" (750mm) Center Pole *
MHP-CP30 75962 23.1
36" (900mm) Center Pole *
MHP-CP36 75963 27.2
42" (1050mm) Center Pole *
MHP-CP42 75964 31.2
48" (1200mm) Center Pole *
MHP-CP48 75965 35.3
54" (1350mm) Center Pole *
MHP-CP54 75966 39.4
60" (1500mm) Center Pole *
MHP-CP60 75967 43.5
72" (1800mm) Center Pole *
MHP-CP72 75968 51.6
84" (2100mm) Center Pole *
MHP-CP84 76811 60.2
96" (2400mm) Center Pole *
MHP-CP96 78958
68.8
2
MHCP Extender Poles
(2 ea.)
MHP-EP 76392 54.0
3
SuperShear
™
Blade
SSRB
75978
6.6
4
24" (600mm) 2-Piece Blade Cartridge *
MHCP-2BC24 76638 13.2
30" (750mm) 2-Piece Blade Cartridge *
MHCP-2BC30 76639 17.6
36" (900mm) 2-Piece Blade Cartridge *
MHCP-2BC36 76640 22.0
42" (1050mm) 2-Piece Blade Cartridge * MHCP-2BC42 76641 26.4
48" (1200mm) 2-Piece Blade Cartridge * MHCP-2BC48 76642 30.8
54" (1350mm) 2-Piece Blade Cartridge * MHCP-2BC54 76643 35.2
60" (1500mm) 2-Piece Blade Cartridge * MHCP-2BC60 76644 39.6
72" (1800mm) 2-Piece Blade Cartridge * MHCP-2BC72 76645 48.4
84" (2100mm) 2-Piece Blade Cartridge * MHCP-2BC84 76812 56.5
96" (2400mm) 2-Piece Blade Cartridge * MHCP-2BC96 78986
64.6
5
MHCP Cartridge Handle *
MHCP-CH 76393
0.4
6
MHCP Cartridge Blade Stop *
MHCP-BS 76394
0.4
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
7
Mounting Plate Kit *
(2 ea.)
MHPMPK 77727 44.4
8
Torque Arm *
(1 ea.)
PSTA 75896 11.4
9
Torque Pivot Kit
(1 ea.) (no spring)
PTPK 75897
7.0
10 Tension Spring - White
(1 ea.)
for belts 24" - 48" (600-1200mm)
PSTS-W 75898
1.7
10a Tension Spring - Silver
(1 ea.)
for belts 54" - 84" (1350-2100mm)
PSTS-S 75899
3.0
10b Tension Spring - Red (1 ea.)
for belts 96" (2400mm)
PSTS-R 77726
3.0
11 Bushing Kit
(2 ea.) (for White, Silver, & Red
Tensioners)
QMTBK-W 76098
0.2
–
PST Spring Tensioner* - White
(includes 2 each items 7, 8, 9, 10 & 11)
for belts 24" - 48" (600-1200mm)
PST2-W 77723 86.1
–
PST Spring Tensioner* - Silver
(includes 2 each items 7, 8, 9, 10a & 11)
for belts 54" -84" (1350-2100mm)
PST2-S 77724 86.2
-
PST Spring Tensioner* - Red
(incl. 2 each items 7, 8, 9 ,10b &11
for belts 96" (2400mm)
PST-R 77725 86.2
*Hardware Included Lead time: 1 working day
*Hardware Included Lead time: 1 working day
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
12 Air/Water Bag
(1 ea.)
AWTB 75905
3.8
13 Mounting Base
(1 ea.)
AWTMB 75906
22.9
14 Torque Arm *
(1 ea.)
AWTA 75907
11.6
15 Hose Kit
(50' of hose and 6 hose clamps)
AWTHK 75909
6.7
– AWT Air/Water Tensioner w/o Control Box
(includes 2 each items 12, 13, 14 & 1 each item 15)
AWTNCB 76069
75.2
16
PAT Control Box
PACB 78683
11.0
– PAT Kit- PAT Tensioner
(includes 2 each items
12, 13, 14 & 1 each items 15 & 16)
PAK
78705
86.2
*Hardware Included Lead time: 1 working day
