Product Ordering
Information

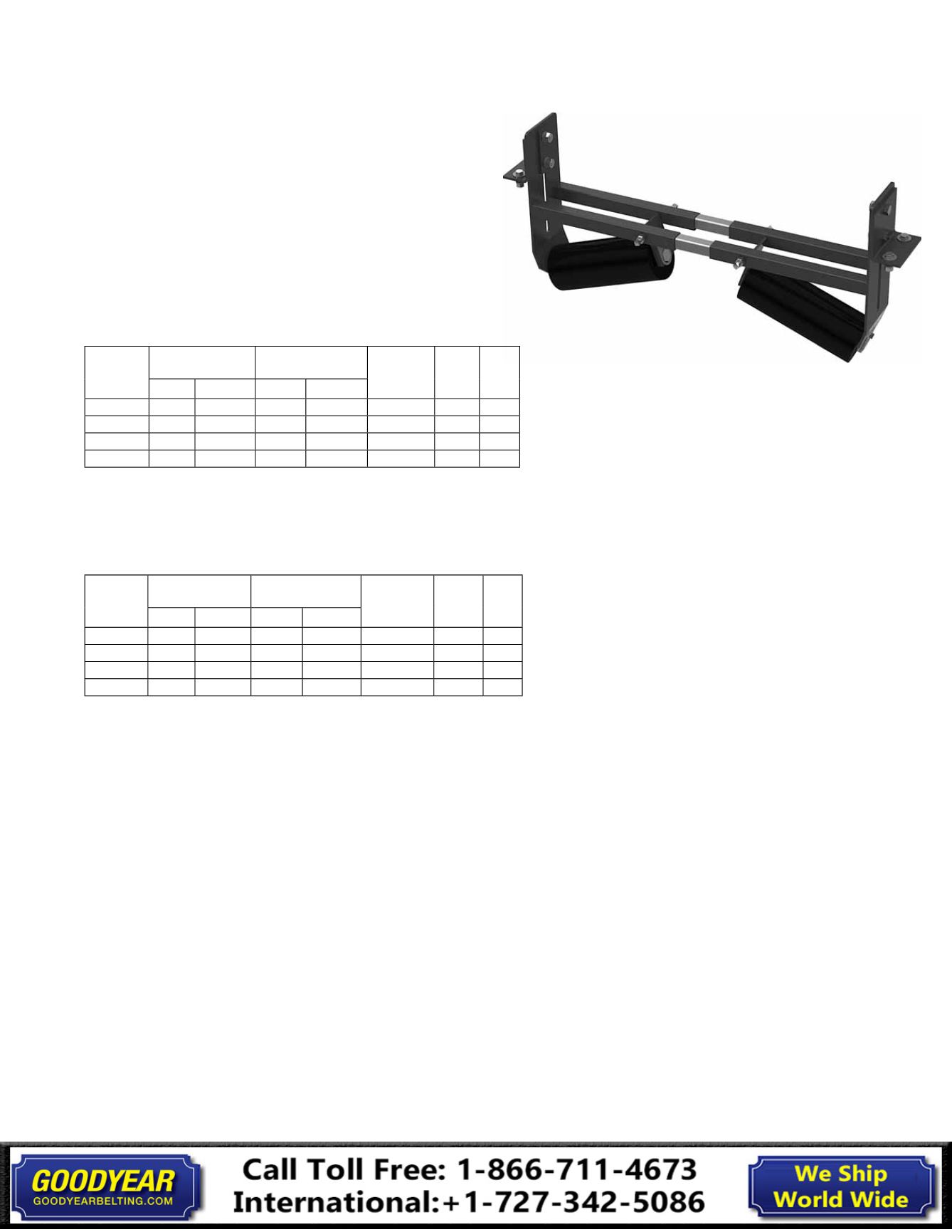

Belt Positioner
™
Belt Positioners with Exalon Rollers
Lead time: 1 working day
Product Notes:
• The Positioner should be centered between two standard return rollers. For general applications
–
standard belts up to 72"
(1800mm): position the unit no closer than 3' (.9M) to a return roller and no farther than 6' (1.8M).
• Works on the return side of the conveyor using simple angled rollers mounted in a fixed position to quickly and continuously
funnel the belt into the correct path.
• A “quick fix” solution for belts that consistently wander to one side.
• Typically installed before the tail pulley to keep the belt centered at the critical loading point. Center loading is the key to solving
many top side tracking problems.
• Idler rollers make smooth contact with the return belt’s bottom cover, eliminating excessive wear and damage to the belt’s edges.
• Has no pivoting mechanism to freeze up and cause the unit to stop working.
• Once installed, no further adjustment is required.
Belt Positioners with Steel Rollers
Use next larger size for belt widths between ranges.
NOTE: Idler Rollers on sizes S, M and L are 5" (125mm) diameter and rated CEMA D.
Idler Rollers on the XL size are 6" (150mm) diameter and rated CEMA E.
Lead time: 1 working day
P R O D U C T H A N D B O O K
SIZE
BELT WIDTH
(Min-Max)
POSITIONER WIDTH
(Min-Max)
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
in.
mm in.
mm
Small
18-24 450-600 24-34 600-850 RBP1S-S 74558 69.8
Medium 30-48 750-1200 34-56 850-1400 RBP1S-M 74559 84.6
Large 54-72 1350-1800 56-83 1400-2075 RBP1S-L 74560 109.5
Extra Large 72-96 1800-2400 72-120 1800-3000 RBP1S-XL 74561 199.6
SIZE
BELT WIDTH
(Min-Max)
POSITIONER WIDTH
(Min-Max)
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
in.
mm in.
mm
Small
18-24 450-600 24-34 600-850 RBP1E-S 73140 60.5
Medium 30-48 750-1200 34-56 850-1400 RBP1E-M 73142 73.5
Large 54-72 1350-1800 56-83 1400-2075 RBP1E-L 73144 94.0
Extra Large 72-96 1800-2400 72-120 1800-3000 RBP1E-XL 73146 182.0
