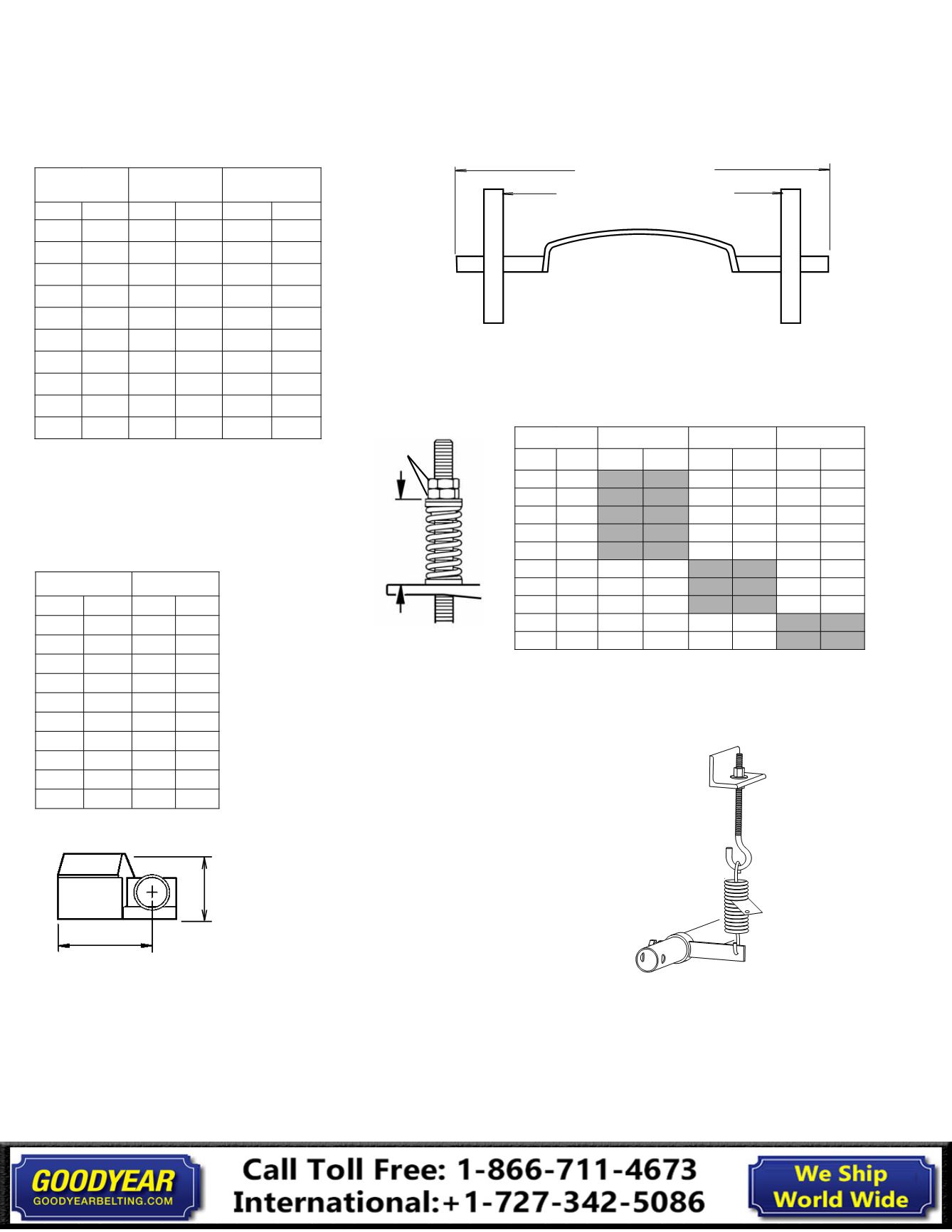

Pole Length Specifications
Clearance Guidelines
For Installation
Overall Pole Length
Maximum Conveyor Span
5"
(125mm)
Specifications:
• Maximum Belt Speed.....................................1300 FPM (6.6M/sec); F-Blade - 1000 FPM (5M/sec)
• Temperature Rating ........................................-30°F to 180°F (-35°C to 82°C)
• Usable Blade Wear Length ...........................V-Blade and C-Blade - 3/8" (9mm); F-Blade - 1 3/4" (44mm)
• Available for Belt Widths...............................18" to 84" (450 to 2100mm).
...........................................................................Other sizes available upon request.
Pole Diameter - 18" to 60" cleaners: 2-3/8" (60mm)
Pole Diameter - 72" to 84" cleaners: 2-7/8" (75mm)
Spring Length Chart
(For Cleaners with UST Tensioners)
Top of
washer
to top of
torque arm
ADJUSTING
NUTS
CLEARANCE
Spring Tensioner Guidelines
(For Cleaners with J-Bolt Tensioners)
• Spring gap = .030" (.7mm)
* Gauge provided
BLADE WIDTH PURPLE SPRING SILVER SPRING WHITE SPRING
in. mm in. mm in. mm in. mm
18 450 6 1/8 154 6 3/8 160 6 3/8 162
24 600 5 7/8 148 6 1/4 158 6 1/4 159
30 750 5 1/2 140 6 1/8 154 6 1/4 159
36 900 5 3/8 136 6 152 6 1/8 156
42 1050 5 128 5 7/8 150 6 1/8 156
48 1200 N/A N/A 5 3/4 146 6 152
54 1350 N/A N/A 5 5/8 142 5 7/8 149
60 1500 N/A N/A 5 1/2 140 5 7/8 149
72 1800 N/A N/A N/A N/A 5 1/2 140
84 2100 N/A N/A N/A N/A 5 3/8 138
Gauge
Specifications
& Guidelines
U-Type®
Secondary Cleaner
CLEANER SIZE POLE LENGTH
MAXIMUM
CONVEYOR SPAN
in. mm in. mm in. mm
18 450 64 1600 54 1350
24 600 70 1750 60 1500
30 750 76 1900 66 1650
36 900 82 2050 72 1800
42 1050 88 2200 78 1950
48 1200 94 2350 84 2100
54 1350 100 2500 90 2250
60 1500 106 2650 96 2400
72 1800 124 3100 114 2850
84 2100 136 3400 126 3150
U CLEANER SIZE CLEARANCE
in. mm in. mm
18" 450 5 1/2 140
24" 600 6 1/2 166
30" 750 7 1/2 191
36" 900 7 1/2 171
42" 1050 8 1/2 217
48" 1200 9 1/2 242
54" 1350 9 1/2 242
60" 1500 9 1/2 242
72" 1800 10 1/4 261
84" 2100 10 1/4 261
