Flexco Belt Cleaners Handbook GoodyearBelting.com 866-711-4673

www.flexco.com

• phone: 1-630-971-0150

108

7 7a 7b

14b

14c

10a

Optional Chute Seal Kit

Tip Alignment Tool

for Dual Cartridge Cleaners

For SA Cartridge

Kits, see page 106

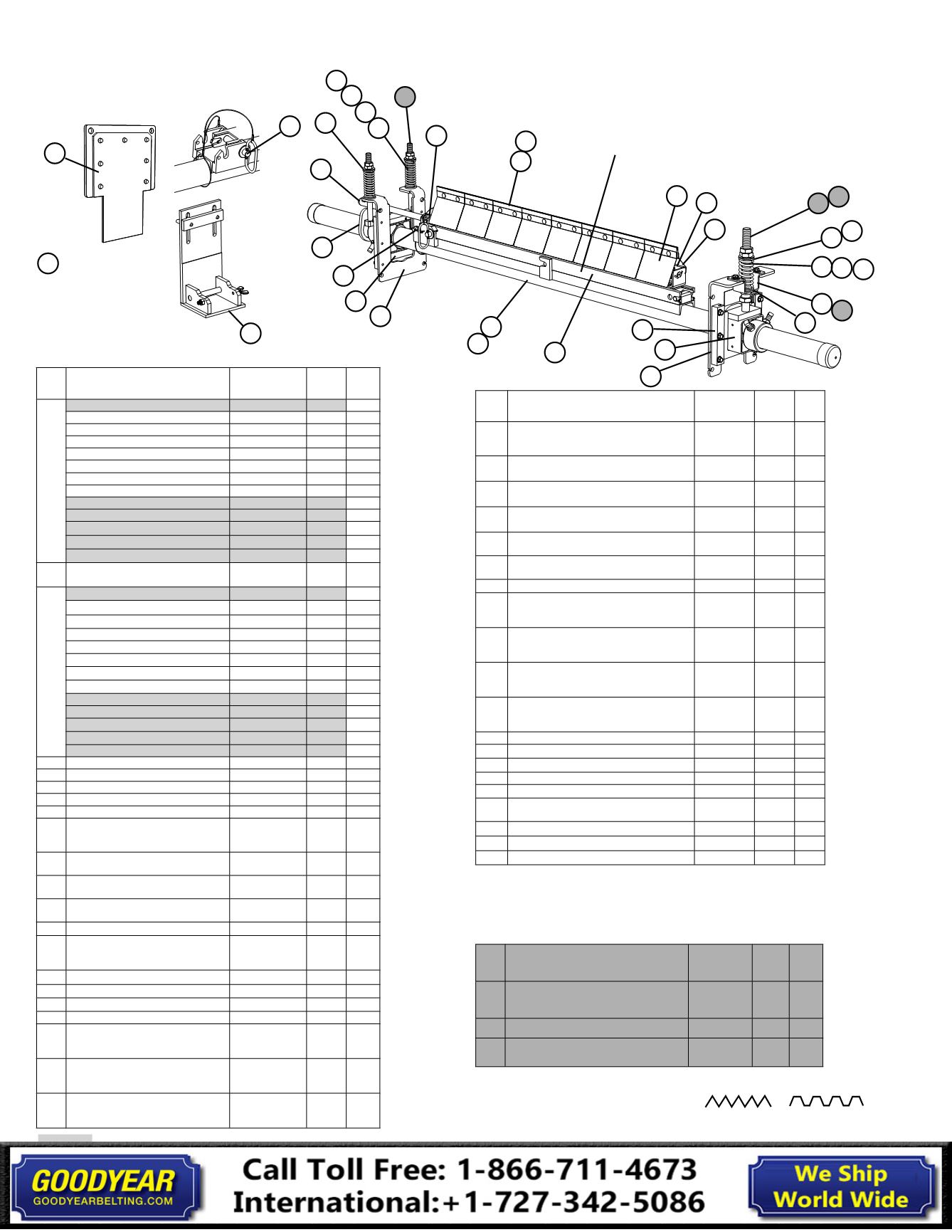

Replacement

Parts List

MHS ESAC

HD Secondary Cleaner

with Enhanced Service Advantage Cartridge

Shaded items are made to order. Lead time: 15 working days

Legacy Replacement Parts for Tensioners

shipped prior to Dec. 31, 2014*

L1 L2

14a

For cleaners/tensioners

shipped prior to Dec. 31,

2014 ONLY*.

Verify if legacy parts are needed by looking

at threaded rod. If it has standard threads, use

legacy parts. If it has flat/acme threads, choose

from regular replacement parts.

Acme/trapezoidal

thread profile

Standard

thread profile

P R O D U C T H A N D B O O K

Replacement Parts

REF DESCRIPTION

ORDERING

NUMBER

ITEM

CODE

WT.

LBS.

ESAC Cartridge Pole 24"

SACPL-24/600 77887 65.4

ESAC Cartridge Pole 30"

SACPL-30/750 77888 71.2

ESAC Cartridge Pole 36"

SACPL-36/900 77889 77.1

ESAC Cartridge Pole 42"

SACPL-42/1050 77890 82.9

ESAC Cartridge Pole 48"

SACPL-48/1200 77891 88.8

ESAC Cartridge Pole 54"

SACPL-54/1350 77892 94.6

ESAC Cartridge Pole 60"

SACPL-60/1500 77893 100.5

ESAC Cartridge Pole 72"

SACPL-72/1800 77894 112.2

ESAC Cartridge Center Pole 60" (Dual)

SACPL2-60/1500 77895 77.3

ESAC Cartridge Center Pole 72" (Dual)

SACPL2-72/1800 77896 89.5

ESAC Cartridge Center Pole 84" (Dual)

SACPL2-84/2100 77897 101.8

ESAC Cartridge Center Pole 96" (Dual)

SACPL2-96/2400 77898 114.1

ESAC Cartridge Center Pole 120" (Dual) SACPL2-120/3000 77899 142.3

1a Extender Pole

(for use with Dual Cartridge

Center Pole)

MHP-EP

76392 54.0

ESAC Cartridge 24”

CART-24/600 77900

3.5

ESAC Cartridge 30"

CART-30/750 77901

4.3

ESAC Cartridge 36"

CART-36/900 77902

5.1

ESAC Cartridge 42"

CART-42/1050 77903

5.9

ESAC Cartridge 48"

CART-48/1200 77904

6.7

ESAC Cartridge 54"

CART-54/1350 77905

7.4

ESAC Cartridge 60"

CART-60/1500 77906

8.4

ESAC Cartridge 72"

CART-72/1800 77907 10.0

ESAC Cartridge 60" (Dual)

CART2-60/1500 77908

8.6

ESAC Cartridge 72" (Dual)

CART2-72/1800 77909 10.2

ESAC Cartridge 84" (Dual)

CART2-84/2100 77910 11.7

ESAC Cartridge 96" (Dual)

CART2-96/2400 77911 13.3

ESAC Cartridge 120" (Dual)

CART2-120/3000 77912 16.8

3 C-Tip*

ICT6

74535

0.7

3a V-Tip*

(for vulcanized belts only)

RSA150

73628

1.3

4 PowerFlex

™

Cushion*

PFC

75927

4.2

PowerFlex Front Shield

PFS-ESAC 79073

PowerFlex Reversing Shield

PFRS

76622

SST HD Mounting Base Kit*

(incl. 1 mounting base, 2 slide guides, top hat

bracket, & bottom bushing)

SSTHDMK 77870 10.2

7 SST Spring - White (1 ea.)

for belts 18”-30” (450-750 mm)

STS-W 75846

0.5

7a SST Spring - Silver

(1 ea.)

for belts 36”-48” (900-1200 mm)

STS-S

75843

0.8

7b SST Spring - Black

(1 ea.)

for belts 54”-84” (1350-2100 mm)

STS-B

75844

1.0

SST Hat Bracket (pair)

SSTHB

79582 3.5

HD Torsion Pole Mount*

(1 ea.)

(includes adjusting rod, 3 nuts & sleeve)

(See 9 & 9a for bushings)

SSTHDPM 77868 15.0

10 SST Bushing Kit - White/Silver

SSTBK-W 76636 0.1

10a SST Bushing Kit - Black/Gold

SSTBK-B 76637 0.1

11 SST Lower Bushing Kit

(pair)

SSTLBK

79493 0.1

12 SST Slide Guide Kit

STGK2

77867 1.1

SST HD Cartridge Tensioner - White

(includes 1 ea. item 6, 7, 9, 10)

for belts 18”-30” (450-750 mm)

SST1HD-W 77876 30.3

SST HD Cartridge Tensioner - Silver

(includes 1 ea. item 6, 7a, 9, 10)

for belts 36”-48” (900-1200 mm)

SST1HD-S 77877 30.7

SST HD Cartridge Tensioner - Black

(includes 1 ea. item 6, 7b, 9, 10a)

for belts 54”-84” (1350-2100 mm)

SST1HD-B 77878 31.0

REF DESCRIPTION

ORDERING

NUMBER

ITEM

CODE

WT.

LBS.

CST HD Mounting Base Kit*

(incl. 1 mounting base, 2 slide guides, top hat

bracket, & bottom bushing)

CSTHDMK 77871 8.5

14 CST Spring - White

(1 ea.)

for belts 18”-30” (450-750 mm)

CTS-W 77742 0.5

14a CST Spring - Silver

(1 ea.)

for belts 36”-48” (900-1200 mm)

CTS-S 77743 0.5

14b CST Spring - Black

(1 ea.)

for belts 54”-84” (1350-2100 mm)

CTS-B 77744 0.6

14c CST Spring - Gold

(1 ea.)

for belts 96”-120” (2400-3000 mm)

CTS-G 77745 0.8

15 CST HD Torsion Pole Mount*

(1 ea.)

(incl. 2 adjusting rods, 4 nuts)

CSTHDPM 77869 16.4

16 CST Bushing Kit

(includes 4 bushings)

CSTBK 77037 0.1

CST HD Cartridge Tensioner - White

(incl. 1 ea. item 13, 15, 16 and 2 ea. item 14)

for belts 18”-30” (450-750 mm)

CST1HD-W 77872 30.1

CST HD Cartridge Tensioner - Silver

(incl. 1 ea. item 13, 15, 16 and 2 ea. item 14a)

for belts 36”-48” (900-1200 mm)

CST1HD-S 77873 30.1

CST HD Cartridge Tensioner - Black

(includes 1 ea. item 13, 15, 16 and 2 ea. item 14b)

for belts 54”-84” (1350-2100 mm)

CST1HD-B 77874 30.1

CST HD Cartridge Tensioner - Gold

(includes 1 ea. item 13, 15, 16 and 2 ea. item 14c)

for belts 96”-120” (2400-3000 mm)

CST1HD-G 77875 30.7

17 ESAC Removal Knuckle

SACRKN 77882 3.2

18 ESAC Removal Handle

SACRH 77883 3.0

19 ESAC Handle Lock Plate

SACRHL

77884 1.7

20 Knuckle Retainer Pin

SACKRP 77885 0.2

21 SAC Hitch Pin

SACHP2 77768 0.9

ESAC Removal Kit

(includes 1 ea. item 17, 18, 19, 20, 21)

SACRKT 77886 9.0

22 ESAC Chute Seal Kit

SACSK 77052 3.9

23 ESAC Chute Seal Replacement Cover

SACSRC 77065 0.5

24 ESAC Cartridge Tip Alignment Tool (Dual)

SAC2-TIP-TL 77866 2.5

*Hardware Included Lead Time: 1 working day

SST Adj Rod Kit*

(incl. 1 rod, 2 nuts, 2 bushings, 1 washer)

for belts 18”-60” (450-1500 mm)

STAK

75847 2.9

SST HD Adj Rod Kit*

(incl. 1 rod, 2 nuts, 2 HD bushings, 1 washer)

for belts 72”-84” (1800-2100 mm)

STAKHD 75892 3.0

Legacy SST Hat Channel Kit

SSTHK 79070 1.5

L4 CST Adj Rod Kit

(incl. 2 rods, 4 nuts, 4 bushings, 2 washers)

CSTAK 77031 3.3

*Hardware Included Lead Time: 1 working day
