56

DQC116

877.963.4966 •

dixonvalve.com

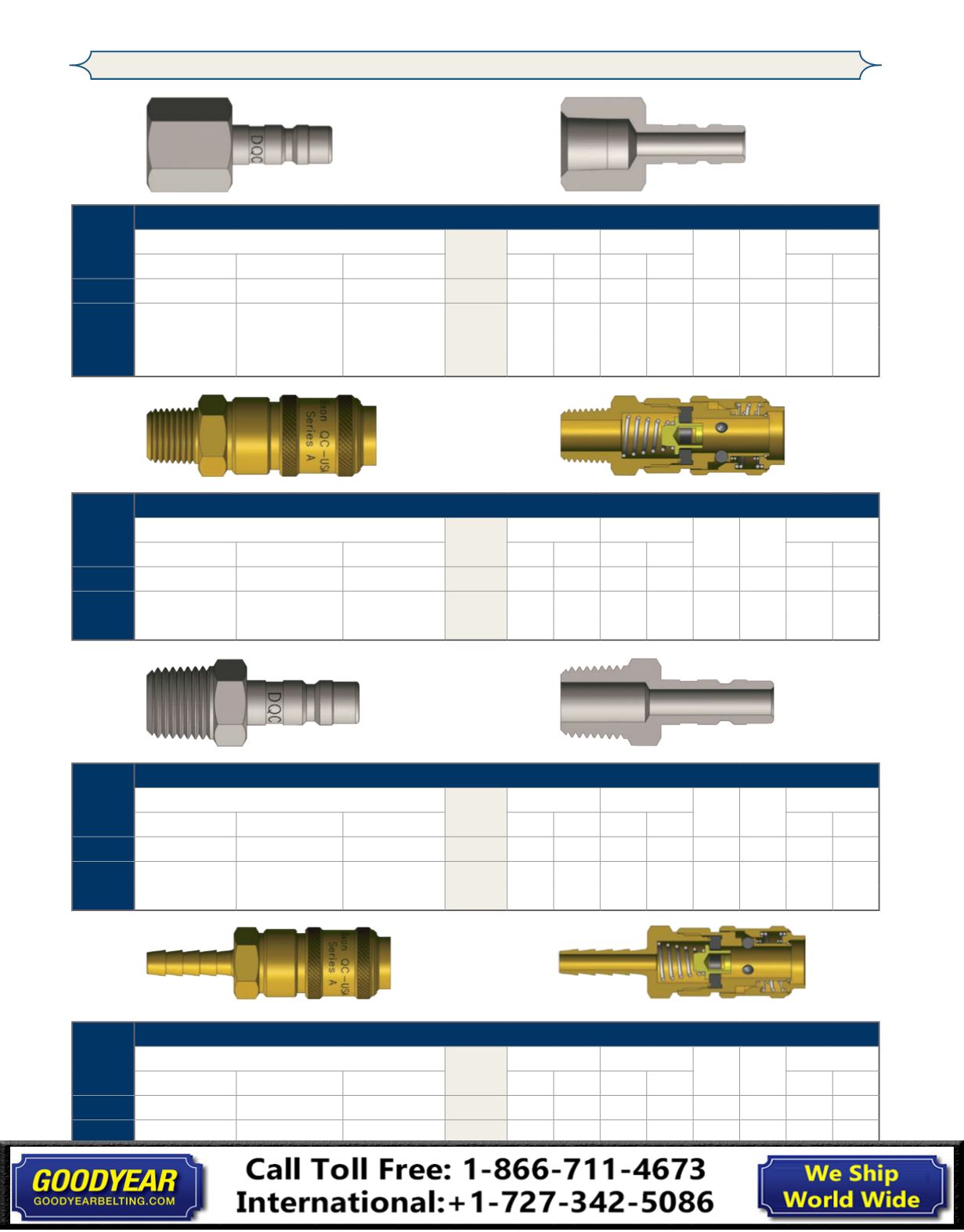

A-Series Pneumatic Couplings

Body

Size

A-Series Astronautics High Pressure Pneumatic Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/8"

A1F1-B 1/8" - 27 NPTF brass

$7.82

1.26 32.0 0.58 14.7 1/2" 0.03 10 100

1/4"

A2F1-B 1/8" - 27 NPTF brass

7.82

1.34 34.0 0.65 16.5 9/16" 0.08 10 100

1/4"

A2F2

1/4" - 18 NPTF steel

5.96

1.56 39.6 0.79 20.1 11/16" 0.07 10 100

1/4"

A2F2-B 1/4" - 18 NPTF brass

7.82

1.56 39.6 0.79 20.1 11/16" 0.07 10 100

Body

Size

A-Series Astronautics High Pressure Pneumatic Coupler (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/8"

1AM1-B 1/8" - 27 NPTF brass

$25.48

1.75 44.5 0.64 16.3 1/2" 0.08 10 100

1/4"

2AM1-B 1/8" - 27 NPTF brass

26.64

2.12 53.8 0.77 19.6 11/16" 0.17 10 100

1/4"

2AM2-B 1/4" - 18 NPTF brass

26.64

2.23 56.6 0.77 19.6 11/16" 0.16 10 100

Body

Size

A-Series Astronautics High Pressure Pneumatic Nipple (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/8"

A1M1-B 1/8" - 27 NPTF brass

$7.82

1.30 33.0 0.51 13.0 7/16" 0.02 10 100

1/4"

A2M2 1/4" - 18 NPTF steel

5.62

1.59 40.4 0.65 16.5 9/16" 0.03 10 100

1/4"

A2M2-B 1/4" - 18 NPTF brass

7.82

1.59 40.4 0.65 16.5 9/16" 0.03 10 100

Body

Size

A-Series Astronautics High Pressure Pneumatic Coupler (Hose Barb)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Hose ID

Material

Inch mm Inch mm

Bag Box

1/8"

1AS1-B

1/8"

brass

$27.80

1.98 50.3 0.64 16.3 1/2" 0.07 10 100

1/4"

2AS2-B

1/4"

brass

28.95

2.70 68.6 0.77 19.6 11/16" 0.15 10 100
