62

DQC116

877.963.4966 •

dixonvalve.com

Body

Size

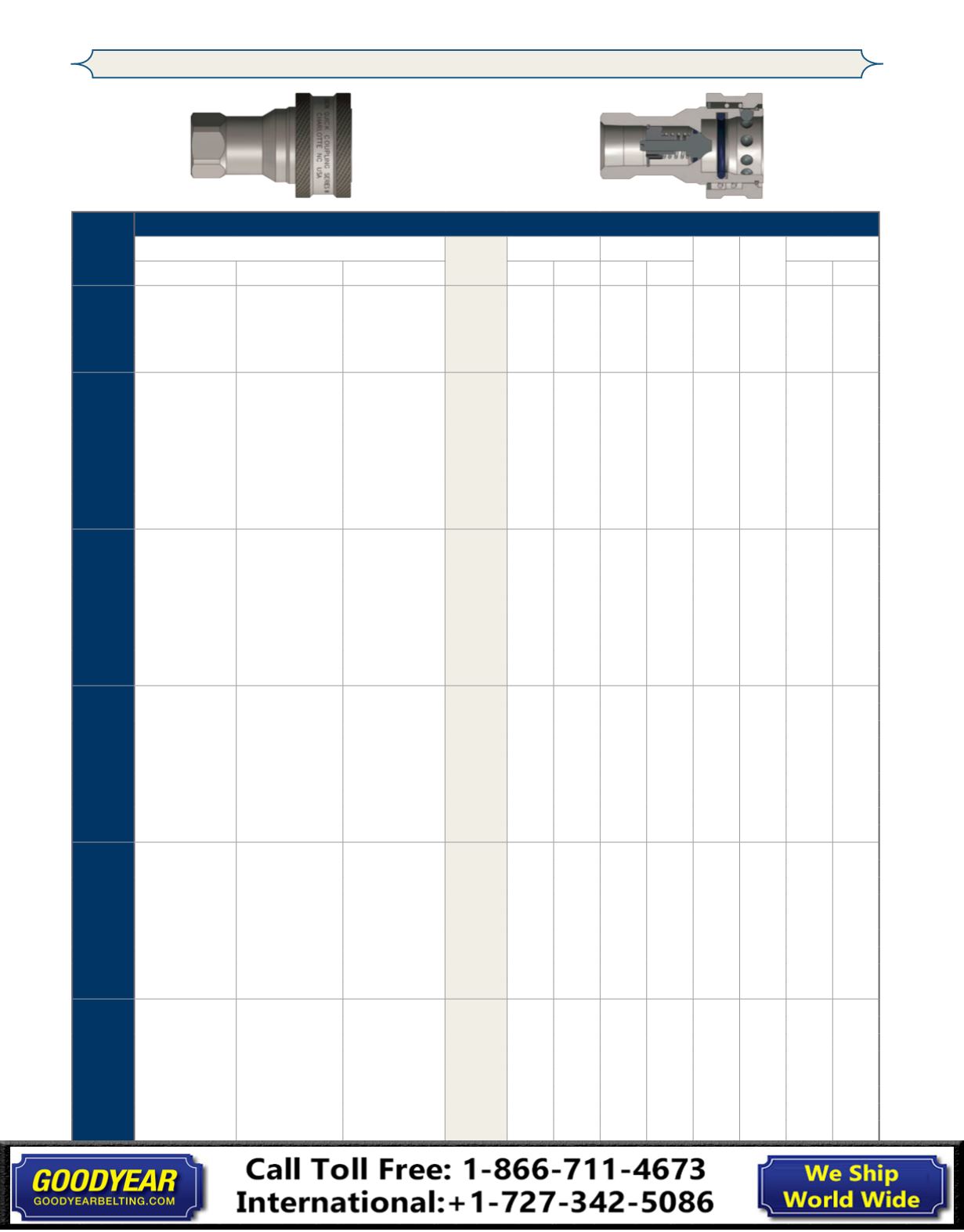

H-Series ISO-B Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/8"

1HF1

1/8" - 27 NPTF

steel

$24.33

1.90 48.3 0.93 23.6 9/16" 0.16 10 100

1/8"

1HF1-B 1/8" - 27 NPTF

brass

24.19

1.90 48.3 0.93 23.6 9/16" 0.16 10 100

1/8"

1HF1-S 1/8" - 27 NPTF 303 stainless

72.39

1.90 48.3 0.93 23.6 9/16" 0.16 10 100

1/8"

1HF1-SS 1/8" - 27 NPTF 316 stainless

134.75

1.90 48.3 0.93 23.6 9/16" 0.16 10 100

1/8"

1HOF2 7/16" - 20 ORB

steel

30.12

1.90 48.3 0.93 23.6 9/16" 0.16 10 100

1/4"

2HF2

1/4" - 18 NPTF

steel

23.16

2.26 57.4 1.12 28.4 7/8" 0.30 10 50

1/4"

2HF2-B 1/4" - 18 NPTF

brass

22.51

2.26 57.4 1.12 28.4 7/8" 0.32 10 50

1/4"

2HF2-S 1/4" - 18 NPTF 303 stainless

62.72

2.26 57.4 1.12 28.4 7/8" 0.30 10 50

1/4"

2HF2-SS 1/4" - 18 NPTF 316 stainless

150.98

2.26 57.4 1.12 28.4 3/4" 0.30 10 50

1/4"

2HBF2

1/4" - 19 BSPP

steel

25.48

2.26 57.4 1.12 28.4 7/8" 0.30 10 50

1/4"

2HBF2-B 1/4" - 19 BSPP

brass

24.76

2.26 57.4 1.12 28.4 7/8" 0.32 10 50

1/4"

2HBF2-S 1/4" - 19 BSPP 303 stainless

62.72

2.26 57.4 1.12 28.4 7/8" 0.30 10 50

1/4"

2HBF2-SS 1/4" - 19 BSPP 316 stainless

150.98

2.26 57.4 1.12 28.4 3/4" 0.30 10 50

1/4"

2HOF3 9/16" - 18 ORB

steel

27.80

2.26 57.4 1.12 28.4 13/16" 0.31 10 50

3/8"

3HF3

3/8" - 18 NPTF

steel

28.95

2.51 63.8 1.42 36.1 1-1/16" 0.40 10 50

3/8"

3HF3-B 3/8" - 18 NPTF

brass

31.29

2.51 63.8 1.42 36.1 1-1/16" 0.43 10 50

3/8"

3HF3-S 3/8" - 18 NPTF 303 stainless

88.13

2.51 63.8 1.42 36.1 1-1/16" 0.40 10 50

3/8"

3HF3-SS 3/8" - 18 NPTF 316 stainless

201.61

2.51 63.8 1.42 36.1 7/8" 0.40 10 50

3/8"

3HBF3

3/8" - 19 BSPP

steel

33.30

2.51 63.8 1.42 36.1 1-1/16" 0.40 10 50

3/8"

3HBF3-B 3/8" - 19 BSPP

brass

36.02

2.51 63.8 1.42 36.1 1-1/16" 0.43 10 50

3/8"

3HBF3-S 3/8" - 19 BSPP 303 stainless

88.13

2.51 63.8 1.42 36.1 1-1/16" 0.40 10 50

3/8"

3HBF3-SS 3/8" - 19 BSPP 316 stainless

201.61

2.51 63.8 1.42 36.1 7/8" 0.40 10 50

3/8"

3HOF4

3/4" - 16 ORB

steel

37.65

2.51 63.8 1.42 36.1 1"

0.51 10 50

1/2"

4HF4

1/2" - 14 NPTF

steel

36.48

2.86 72.6 1.86 47.2 1-5/16" 0.73 5 25

1/2"

4HF4-B 1/2" - 14 NPTF

brass

41.08

2.86 72.6 1.86 47.2 1-5/16" 0.80 5 25

1/2"

4HF4-S 1/2" - 14 NPTF 303 stainless

144.79

2.86 72.6 1.86 47.2 1-5/16" 0.75 5 25

1/2"

4HF4-SS 1/2" - 14 NPTF 316 stainless

282.72

2.86 72.6 1.86 47.2 1-1/16" 0.76 5 25

1/2"

4HBF4

1/2" - 14 BSPP

steel

45.38

2.86 72.6 1.86 47.2 1-5/16" 0.73 5 25

1/2"

4HBF4-B 1/2" - 14 BSPP

brass

47.66

2.86 72.6 1.86 47.2 1-5/16" 0.80 5 25

1/2"

4HBF4-S 1/2" - 14 BSPP 303 stainless

144.79

2.86 72.6 1.86 47.2 1-5/16" 0.75 5 25

1/2"

4HBF4-SS 1/2" - 14 BSPP 316 stainless

318.81

2.86 72.6 1.86 47.2 1-1/16" 0.76 5 25

1/2"

4HOF5

7/8" - 14 ORB

steel

48.65

2.86 72.6 1.86 47.2 1-1/8" 0.78 5 25

3/4"

6HF6

3/4" - 14 NPTF

steel

58.75

3.55 90.2 2.22 56.4 1-5/16" 1.30 -

10

3/4"

6HF6-B 3/4" - 14 NPTF

brass

80.03

3.55 90.2 2.22 56.4 1-5/16" 1.36 -

10

3/4"

6HF6-S 3/4" - 14 NPTF 303 stainless

227.26

3.55 90.2 2.22 56.4 1-5/16" 1.31 -

10

3/4"

6HF6-SS 3/4" - 14 NPTF 316 stainless

427.09

3.55 90.2 2.22 56.4 1-5/16" 1.33 -

10

3/4"

6HBF6

3/4" - 14 BSPP

steel

69.49

3.55 90.2 2.22 56.4 1-5/16" 1.30 -

10

3/4"

6HBF6-B 3/4" - 14 BSPP

brass

87.79

3.55 90.2 2.22 56.4 1-5/16" 1.36 -

10

3/4"

6HBF6-S 3/4" -14 BSPP 303 stainless

227.26

3.55 90.2 2.22 56.4 1-5/16" 1.31 -

10

3/4"

6HBF6-SS 3/4" - 14 BSPP 316 stainless

504.53

3.55 90.2 2.22 56.4 1-5/16" 1.33 -

10

3/4"

6HOF6 1-1/16" - 12 ORB steel

75.20

3.55 90.2 2.22 56.4 1-5/16" 1.39 -

10

1"

8HF8

1" - 11 1/2 NPTF

steel

97.08

4.13 104.9 2.49 63.2 1-5/8" 1.95 -

10

1"

8HF8-B 1" - 11 1/2 NPTF

brass

110.20

4.13 104.9 2.49 63.2 1-5/8" 1.99 -

10

1"

8HF8-S 1" - 11 1/2 NPTF 303 stainless

362.87

4.13 104.9 2.49 63.2 1-5/8" 1.95 -

10

1"

8HF8-SS 1" - 11 1/2 NPTF 316 stainless

649.66

4.13 104.9 2.49 63.2 1-5/8" 1.95 -

10

1"

8HBF8

1" - 11 BSPP

steel

97.08

4.13 104.9 2.49 63.2 1-5/8" 1.95 -

10

1"

8HBF8-B 1" - 11 BSPP

brass

110.20

4.13 104.9 2.49 63.2 1-5/8" 1.99 -

10

1"

8HBF8-S 1" - 11 BSPP 303 stainless

362.87

4.13 104.9 2.49 63.2 1-5/8" 1.95 -

10

1"

8HBF8-SS 1" - 11 BSPP 316 stainless

649.66

4.13 104.9 2.49 63.2 1-5/8" 1.95 -

10

1"

8HOF8 1-5/16" - 12 ORB steel

110.03

4.13 104.9 2.49 63.2 1-5/8" 1.95 -

10

H-Series Hydraulic Couplings
