60

DQC116

877.963.4966 •

dixonvalve.com

H-Series Hydraulic Couplings

Interchange Data:

Interchangeable to ISO7241 Series 'B'

Parker 60-Series, Snap-Tite 72-Series, Hansen HK-Series,

Faster Series 'HNV' Aeroquip/Eaton FD45, Stucchi Series

IRB/IRBO/IRBX

Materials:

Machined components are manufactured using solid steel,

brass, 303 stainless steel or 316 stainless steel bar stock.

Stainless steel balls, retaining rings, and springs maximize

corrosion resistance and extend service life.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

Steel coupler sleeves are hardened to resist deformation

and maximize service life.

Steel nipples are hardened to provide heavy duty

performance and resist brinneling.

Nitrile (Buna-N) seals are standard providing a temperature

range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

⅛" to 1" steel and stainless couplers have a PTFE anti-

extrusion ring.

⅛" to 2½" brass couplers have a redundant O-Ring sealing

system (dual O-rings/no PTFE back-up ring)

1¼" to 2½" steel and stainless couplers have a redundant

o-ring sealing system (dual O-rings/no PTFE back-up ring)

Valve seals are crimped in place to maintain integrity during

excessive flow conditions and pressurized connection.

Seal Components:

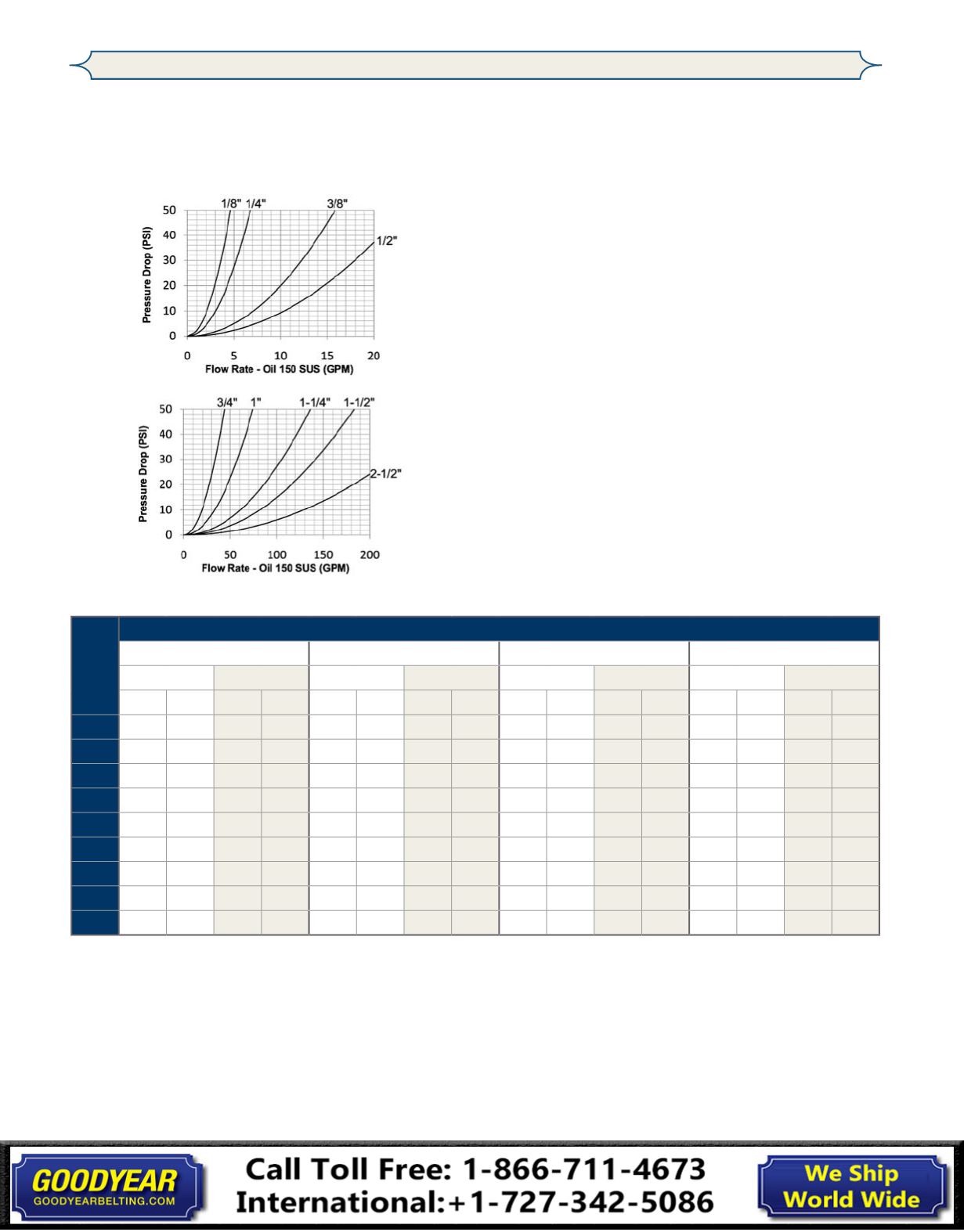

Rated Pressure Chart:

Body

Size

H-Series ISO-B Interchange (Connected)

Steel Coupler/Plug

Brass Coupler/Plug

303 Stainless Coupler/Plug 316 Stainless Coupler/Plug

Max. Working Burst

Max. Working Burst

Max. Working Burst

Max. Working Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

1/8"

4,000 275 14,500 1,000 3,000 200 16,500 1,100 3,500 240 29,500 2,000 3,500 240 29,500 2,000

1/4"

5,000 345 22,500 1,550 3,000 200 15,000 1,000 3,500 240 31,500 2,150 3,500 240 33,000 2,200

3/8"

4,000 275 16,500 1,150 3,000 200 12,000 800 3,500 240 26,500 1,800 3,500 240 28,000 1,900

1/2"

4,000 275 16,000 1,100 2,500 175 11,500 750 3,500 240 27,500 1,900 3,500 240 22,000 1,500

3/4"

4,000 275 16,500 1,150 2,000 138 12,000 800 3,000 200 16,000 1,100 3,000 200 21,500 1,450

1"

4,000 275 16,000 1,100 1,500 100 8,500 600 2,000 138 15,000 1,000 2,000 138 15,000 1,000

1-1/4"

2,500 170 10,000 700 1,000 70 6,500 450 2,000 138 10,000 700 1,000 70 8,500 580

1-1/2"

2,500 170 12,500 850 1,000 70 6,500 450 1,500 100 8,500 580 1,000 70 7,000 480

2-1/2"

1,500 100 6,000 400 700 50 5,500 380 1,000 70 6,500 450 900 62 6,000 400
