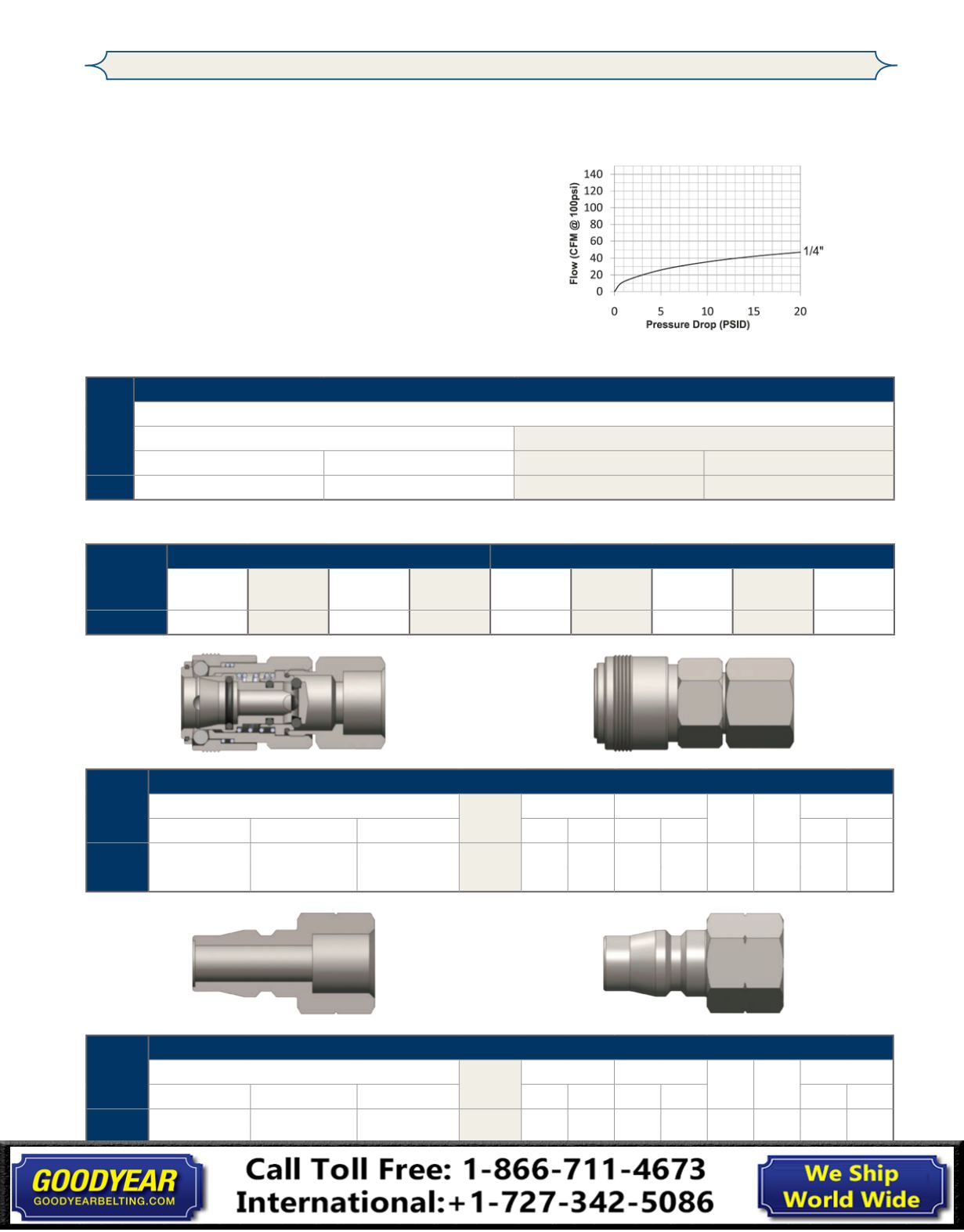

51

DQC116

877.963.4966 •

dixonvalve.com

NK-Series Pneumatic Couplings

Interchange Data:

Japanese Industrial Interchange Pneumatic Coupling

Nitto Kohki Hi-Cupla 200, Rectus Series 13, and CEJN

Series 315

Materials:

Machined components are manufactured using solid steel

bar stock.

Stainless steel springs. Carbon steel balls and retaining

rings.

Steel componentry is plated using chrome-over-nickel

plating.

Nitrile (Buna-N) seals are standard, providing a temperature

range of

-40°F

to

+250°F

(

-40°C

to +

121°C

).

Seal Components:

Body

Size

NK-Series Japanese Industrial Interchange (Connected)

Coupler/Plug

Maximum Working

Burst

PSI

Bar

PSI

Bar

1/4"

300

20

13,500

931

Rated Pressure Chart:

Technical Specifications:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking Ball

Quantity

Air

Inclusion

Fluid

Loss

Vacuum

Rating

Flow

ΔP = 15 PSI

1/4"

-

-

-

-

4

N/A

N/A

N/R 42 CFM

Body

Size

NK-Series Japanese Industrial Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2NKF2

1/4" - 18 NPT

steel

$19.60

1.97 50.0 1.02 26.0 3/4" 0.28 10 100

1/4"

2NKBF2 1/4" -19 BSPP steel

19.60

1.97 50.0 1.02 26.0 3/4" 0.28 10 100

Body

Size

NK-Series Japanese Industrial Interchange Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

NK2F2

1/4" - 18 NPT

steel

$4.04

1.39 35.2 0.52 13.1 5/8" 0.05 10 100

1/4"

NK2BF2 1/4" - 19 BSPP steel

4.04

1.39 35.2 0.52 13.1 5/8" 0.05 10 100
