54

DQC116

877.963.4966 •

dixonvalve.com

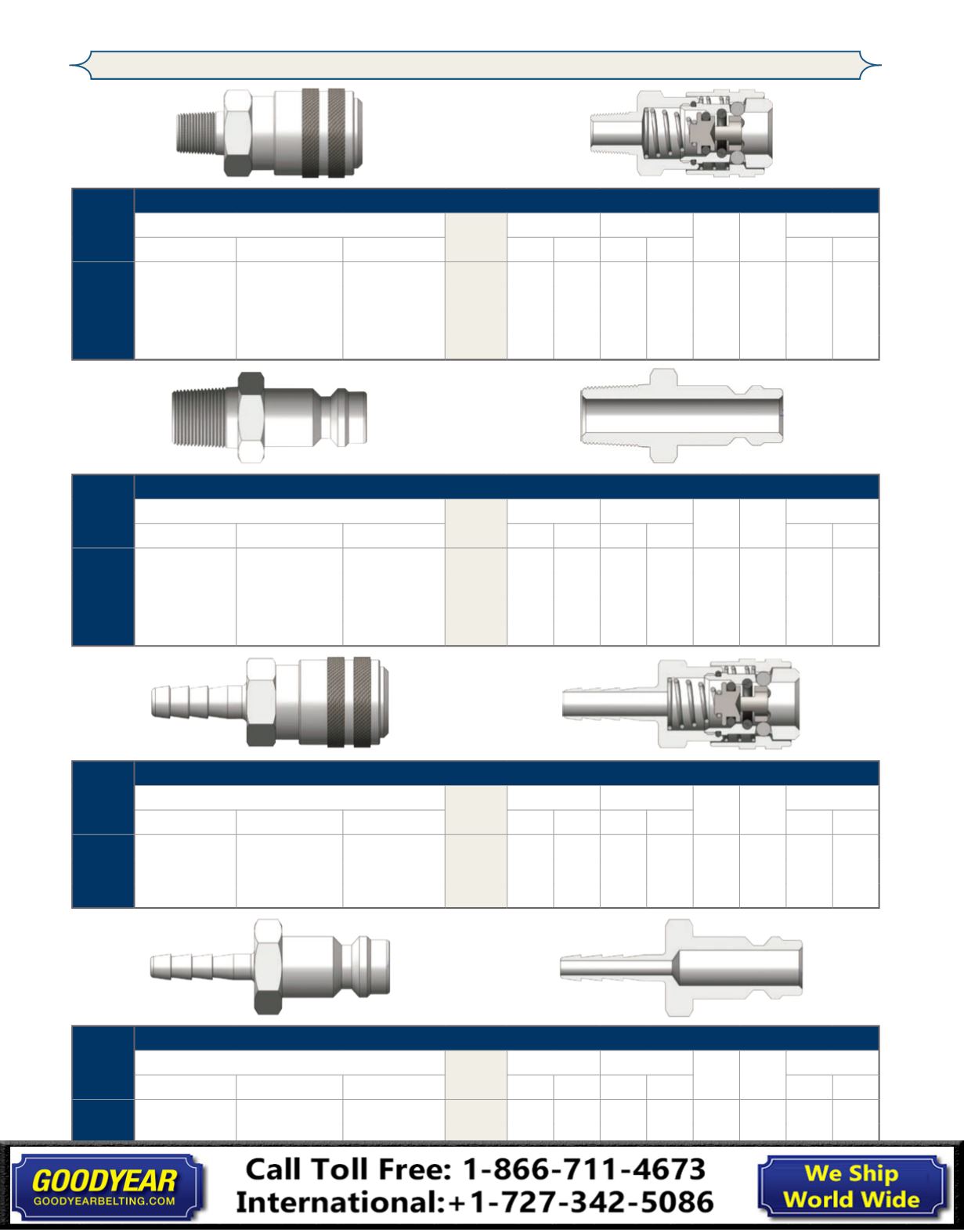

BR-Series Pneumatic Couplings

Body

Size

BR-Series Rectus 21-Series Interchange Coupler (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/8"

1BRM1-B-7 1/8" - 27 NPT

brass

$12.71

1.49 37.8 0.65 16.5 9/16" 0.06 10 100

1/8"

1BRGM1-B-7 1/8" - 28 BSPP brass

12.71

1.49 37.8 0.65 16.5 9/16" 0.06 10 100

1/8"

1BRM2-B-7 1/4" - 18 NPT

brass

12.71

1.61 40.9 0.72 18.3 5/8" 0.07 10 100

1/8"

1BRGM2-B-7 1/4" - 19 BSPP brass

12.71

1.61 40.9 0.72 18.3 5/8" 0.07 10 100

Body

Size

BR-Series Rectus 21-Series Interchange Nipple (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/8"

BR1M1-B-E-7 1/8" - 27 NPT

brass

$3.62

1.06 26.9 0.65 16.5 9/16" 0.03 10 100

1/8"

BR1GM1-B-E-7 1/8" - 28 BSPP brass

3.62

1.06 26.9 0.65 16.5 9/16" 0.03 10 100

1/8"

BR1M2-B-E-7 1/4" - 18 NPT

brass

3.62

1.20 30.5 0.72 18.3 5/8" 0.04 10 100

1/8"

BR1GM2-B-E-7 1/4" - 19 BSPP brass

3.62

1.20 30.5 0.72 18.3 5/8" 0.04 10 100

Body

Size

BR-Series Rectus 21-Series Interchange Coupler (Hose Barb)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Hose ID

Material

Inch mm Inch mm

Bag Box

1/8"

1BRS1.25-B-7

4mm

brass

$12.71

1.26 32.0 0.35 8.9 9/16" 0.06 10 100

1/8"

1BRS1.86-B-7

6mm

brass

12.71

1.26 32.0 0.35 8.9 9/16" 0.08 10 100

1/8"

1BRS2.83-B-7

9mm

brass

12.71

1.26 32.0 0.35 8.9 9/16" 0.09 10 100

Body

Size

BR-Series Rectus 21-Series Interchange Nipple (Hose Barb)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Hose ID

Material

Inch mm Inch mm

Bag Box

1/8"

BR1S1.25-B-E-7

4mm

brass

$3.62

1.26 32.0 0.35 8.9 9/16" 0.03 10 100

1/8"

BR1S1.86-B-E-7

6mm

brass

3.62

1.26 32.0 0.35 8.9 9/16" 0.03 10 100

1/8"

BR1S2.83-B-E-7

9mm

brass

3.62

1.26 32.0 0.35 8.9 9/16" 0.04 10 100
