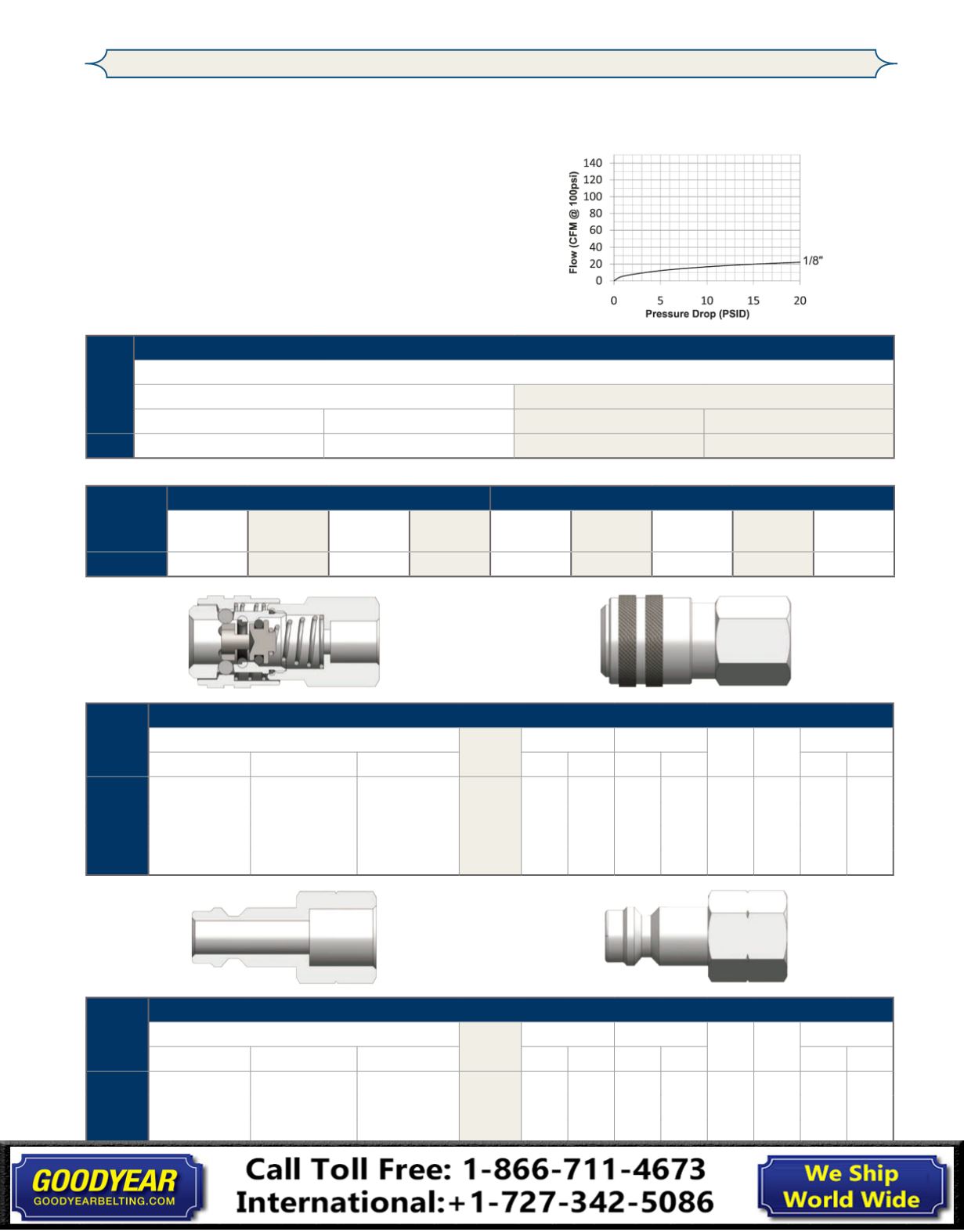

53

DQC116

877.963.4966 •

dixonvalve.com

BR-Series Pneumatic Couplings

Interchange Data:

Rectus 21KA, Tomco Series SC, CEJN Series 223

Materials:

Machined components are manufactured using solid brass

bar stock.

Stainless steel springs. Carbon steel balls and retaining

rings.

Machined components are plated with chrome-over-nickel

plating.

Nitrile (Buna-N) seals are standard, providing a temperature

range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Seal Components:

Rated Pressure Chart:

Body

Size

BR-Series Rectus 21-Series Interchange (Connected)

Coupler/Plug

Maximum Working

Burst

PSI

Bar

PSI

Bar

1/8"

300

20

7,000

483

Technical Specifications:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking Ball

Quantity

Air

Inclusion

Fluid

Loss

Vacuum

Rating

Flow

ΔP = 15 PSI

1/4"

-

-

-

-

6

N/A

N/A

N/R 20 CFM

Body

Size

BR-Series Rectus 21-Series Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/8"

1BRF1-B-7 1/8" - 27 NPT

brass

$12.71

1.55 39.4 0.65 16.5 9/16" 0.06 10 100

1/8"

1BRBF1-B-7 1/8" - 28 BSPP brass

12.71

1.55 39.4 0.65 16.5 9/16" 0.06 10 100

1/8"

1BRF2-B-7 1/4" - 18 NPT

brass

12.71

1.77 45.0 0.72 18.3 5/8" 0.10 10 100

1/8"

1BRBF2-B-7 1/4" - 19 BSPP brass

12.71

1.77 45.0 0.72 18.3 5/8" 0.10 10 100

Body

Size

BR-Series Rectus 21-Series Interchange Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/8"

BR1F1-B-E-7 1/8" - 27 NPT

brass

$3.62

1.14 29.0 0.65 16.5 9/16" 0.04 10 100

1/8"

BR1BF1-B-E-7 1/8" - 28 BSPP brass

3.62

1.14 29.0 0.65 16.5 9/16" 0.04 10 100

1/8"

BR1F2-B-E-7 1/4" - 18 NPT

brass

3.62

1.33 33.8 0.72 18.3 5/8" 0.07 10 100

1/8"

BR1BF2-B-E-7 1/4" - 19 BSPP brass

3.62

1.33 33.8 0.72 18.3 5/8" 0.07 10 100
