28

DQC116

877.963.4966 •

dixonvalve.com

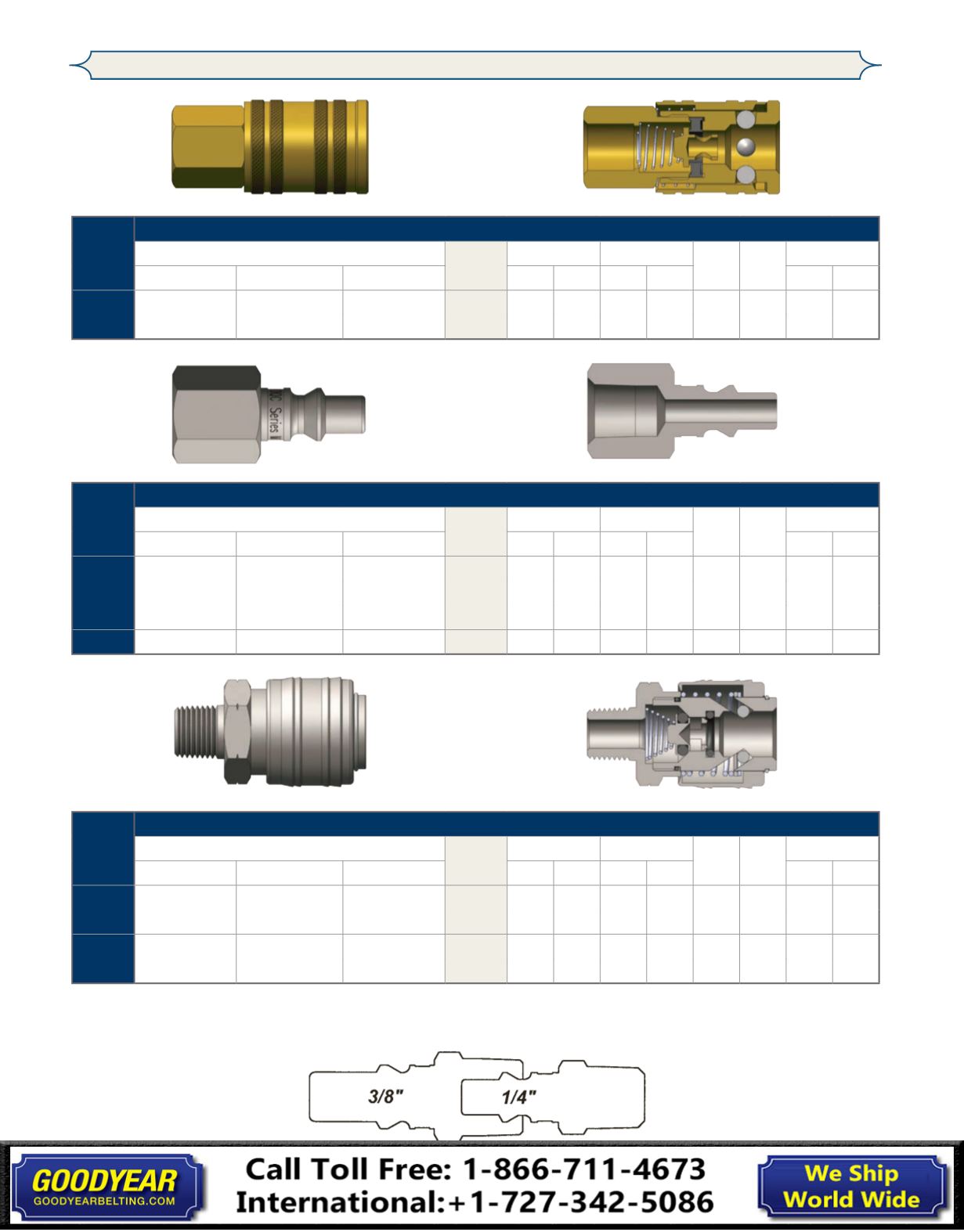

M-Series Pneumatic Couplings

Body

Size

M-Series Manual ARO Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2MF2-B 1/4" - 18 NPT

brass

$11.05

1.97 50.0 0.87 22.0 3/4" 0.20 10 100

1/4"

2MF3-B 3/8" - 18 NPT

brass

13.10

2.05 52.0 0.87 22.0 13/16" 0.20 10 100

Body

Size

M-Series ARO Interchange Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

M2F2 1/4" - 18 NPTF steel

$2.22

1.57 39.9 0.79 20.1 11/16" 0.04 10 100

1/4"

M2F2-B 1/4" - 18 NPTF brass

2.34

1.57 39.9 0.79 20.1 11/16" 0.04 10 100

1/4"

M2F3 3/8" - 18 NPTF steel

5.29

1.57 39.9 1.01 25.7 7/8" 0.06 10 100

3/8"

M3F3 3/8" - 18 NPTF steel

6.38

1.82 46.2 1.01 25.7 7/8" 0.10 10 50

Body

Size

M-Series Automatic ARO Interchange Coupler (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2MM2-PL 1/4" - 18 NPT

brass

$13.24

1.70 43.2 1.06 27.0 13/16" 0.28 10 100

1/4"

2MM3-PL 3/8" - 18 NPT

brass

15.94

1.80 45.6 1.06 27.0 13/16" 0.28 10 100

3/8"

3MM3-PL 3/8" - 18 NPT

brass

20.16

1.89 48.0 1.26 32.0 1-1/16" 0.43 10 50

3/8"

3MM4-PL 1/2" - 14 NPTF brass

18.82

1.89 48.0 1.26 32.0 1-1/16" 0.43 10 50

M Series Profile
