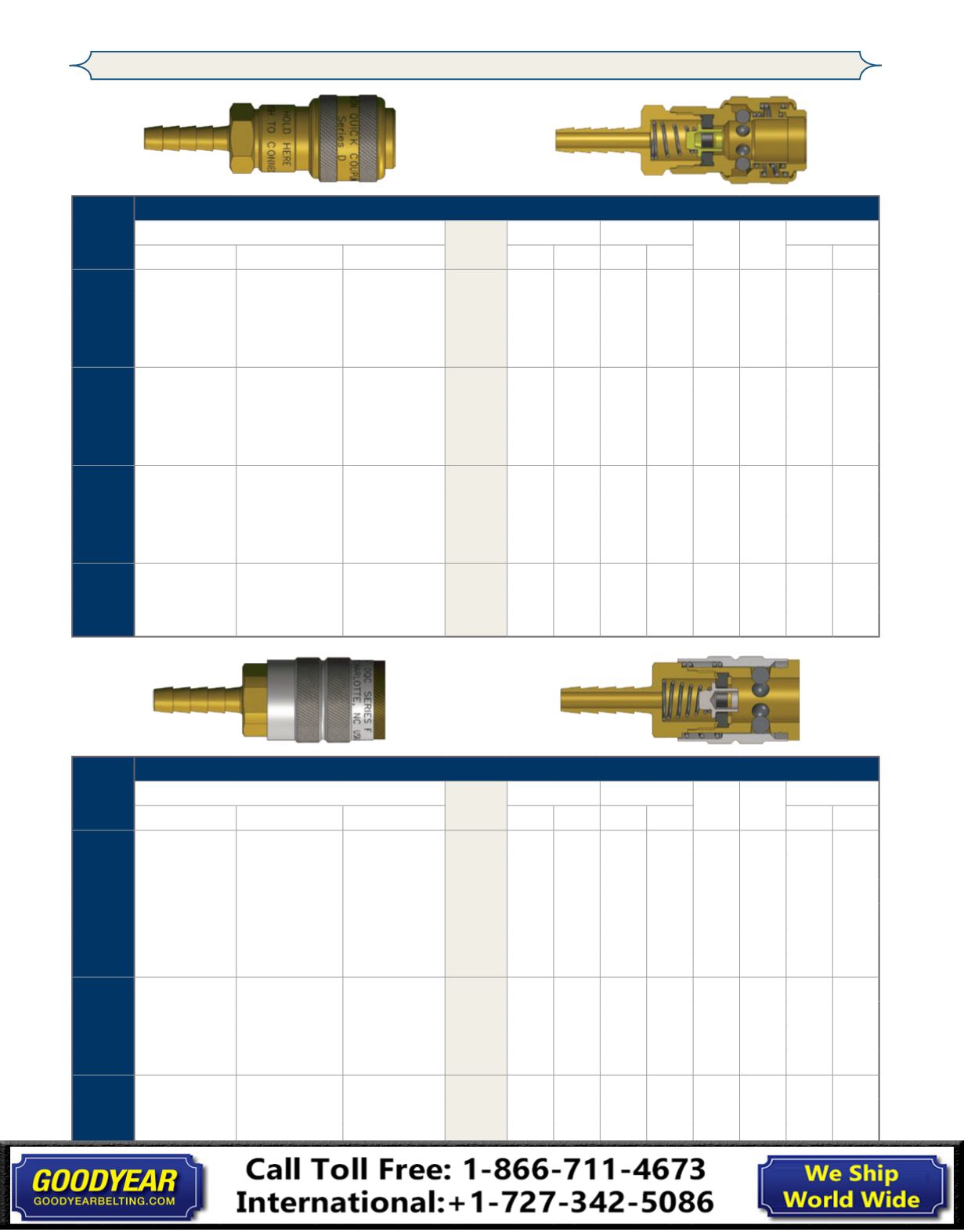

DF-Series Pneumatic Couplings

Body

Size

D-Series Automatic Industrial Interchange Coupler (Standard Hose Barb)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Hose ID

Material

Inch mm Inch mm

Bag Box

1/4"

2DS2-B

1/4"

brass

$13.45

2.90 73.7 0.98 24.9 11/16" 0.27 10 100

1/4"

2DS2-S

1/4"

303 stainless

75.83

2.90 73.7 0.98 24.9 11/16" 0.27 10 100

1/4"

2DS3-B

3/8"

brass

15.55

2.90 73.7 0.98 24.9 11/16" 0.27 10 100

1/4"

2DS3-S

3/8"

303 stainless

81.84

2.90 73.7 0.98 24.9 11/16" 0.28 10 100

3/8"

3DS2-B

1/4"

brass

28.07

3.00 76.2 1.18 30.0 7/8" 0.37 10 50

3/8"

3DS3-B

3/8"

brass

24.56

3.00 76.2 1.18 30.0 7/8" 0.39 10 50

3/8"

3DS3-S

3/8"

303 stainless

101.10

3.00 76.2 1.18 30.0 7/8" 0.39 10 50

3/8"

3DS4-B

1/2"

brass

29.24

3.00 76.2 1.18 30.0 7/8" 0.41 10 50

1/2"

4DS3-B

3/8"

brass

35.62

3.51 89.2 1.34 34.0 1-1/16" 0.56 5 30

1/2"

4DS4-B

1/2"

brass

36.11

3.51 89.2 1.34 34.0 1-1/16" 0.59 5 30

1/2"

4DS4-S

1/2"

303 stainless

119.13

3.51 89.2 1.34 34.0 1-1/16" 0.59 5 30

1/2"

4DS6-B

3/4"

brass

36.44

3.51 89.2 1.34 34.0 1-1/16" 0.65 5 30

3/4"

6DS4-B

1/2"

brass

59.56

3.00 76.2 1.73 43.9 1-5/16" 0.90 -

20

3/4"

6DS6-B

3/4"

brass

60.20

3.00 76.2 1.73 43.9 1-5/16" 0.93 -

20

3/4"

6DS8-B

1"

brass

60.35

3.24 82.3 1.73 43.9 1-5/16" 1.03 -

20

Body

Size

F-Series Manual Industrial Interchange Coupler (Standard Hose Barb)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Hose ID

Material

Inch mm Inch mm

Bag Box

1/4"

2FS2

1/4"

steel

$11.91

2.53 64.3 0.88 22.4 3/4" 0.18 10 100

1/4"

2FS2-B

1/4"

brass

11.25

2.53 64.3 0.88 22.4 3/4" 0.18 10 100

1/4"

2FS2-S

1/4"

303 stainless

56.14

2.53 64.3 0.88 22.4 3/4" 0.18 10 100

1/4"

2FS2.5-B

5/16"

brass

11.58

2.53 64.3 0.88 22.4 3/4" 0.18 10 100

1/4"

2FS3-B

3/8"

brass

11.36

2.53 64.3 0.88 22.4 3/4" 0.18 10 100

1/4"

2FS3-S

3/8"

303 stainless

65.50

2.53 64.3 0.88 22.4 3/4" 0.19 10 100

3/8"

3FS2

1/4"

steel

26.24

2.86 72.6 1.06 26.9 7/8" 0.27 10 50

3/8"

3FS3

3/8"

steel

21.34

2.86 72.6 1.06 26.9 7/8" 0.27 10 50

3/8"

3FS3-S

3/8"

303 stainless

86.54

2.86 72.6 1.06 26.9 7/8" 0.28 10 50

3/8"

3FS4

1/2"

steel

25.90

2.86 72.6 1.06 26.9 7/8" 0.28 10 50

1/2"

4FS3

3/8"

steel

29.71

3.49 88.6 1.19 30.2 1"

0.41 5 30

1/2"

4FS4

1/2"

steel

27.48

3.49 88.6 1.19 30.2 1"

0.43 5 30

1/2"

4FS4-S

1/2"

303 stainless

111.45

3.49 88.6 1.19 30.2 1"

0.43 5 30

1/2"

4FS6

3/4"

steel

30.53

3.49 88.6 1.19 30.2 1"

0.48 5 30
