DF-Series Pneumatic Couplings

Automatic Safety Exhausting Coupler Operation

1

2

3

4

The D-Series Automatic coupling has been performing reliably and safely for over 50-years. This amazing coupler is an

inexpensive solution for automatically connecting pressurized air lines and is the only one-handed single-stage exhausting safety

coupler available in the market today!

Most exhausting safety couplers are a two stage system that are expensive and difficult to operate. Why pay extra for safety?

Use the D-Series Automatic Safety Exhausting Couplers, available in sizes ¼" to ¾".

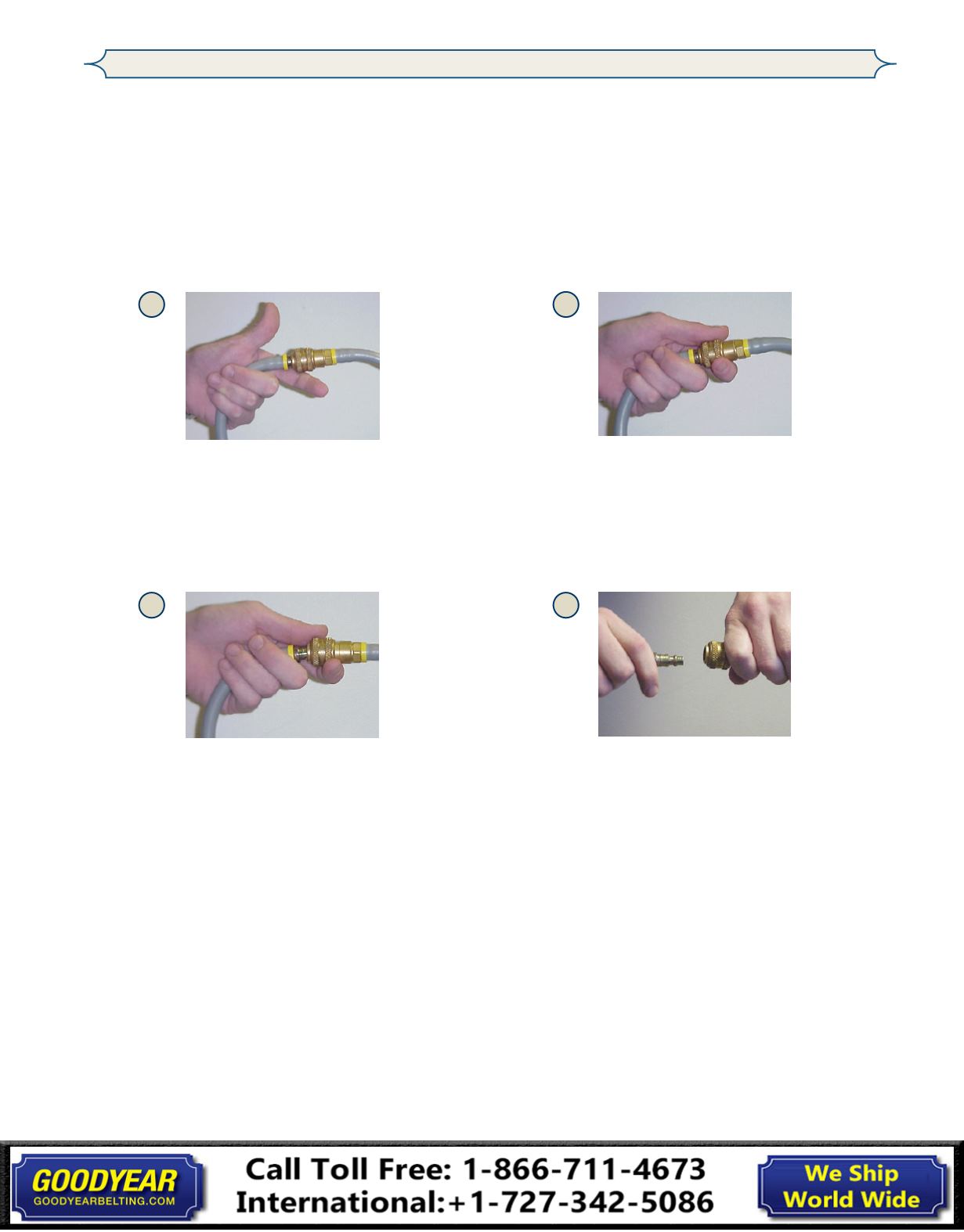

To disconnect, begin by

holding the hose on the nipple

side with three of your fingers,

leaving your thumb and index

finger free.

Grab the sleeve with your

thumb and index finger and

begin to pull the sleeve

towards the palm of your hand.

After pulling the sleeve, the

nipple will move out of the

coupler slightly. Continue to

hold the hose and coupler

sleeve until all air is fully

exhausted.

After the line is fully

exhausted, you are able to

safely separate the nipple from

the coupler.
