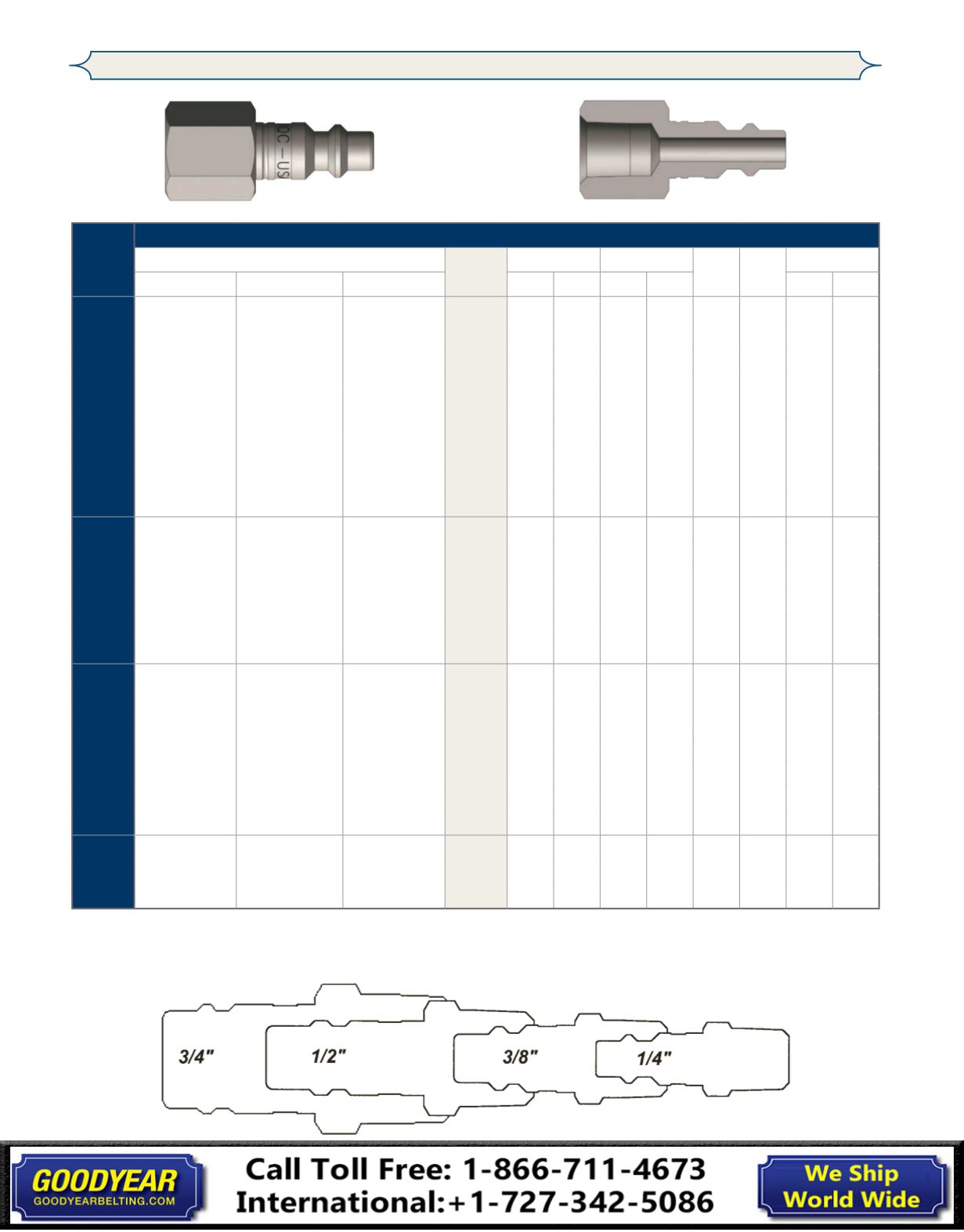

DF-Series Pneumatic Couplings

Body

Size

DF-Series Industrial Interchange Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

D2F1

1/8" - 27 NPTF steel

$3.45

1.44 36.6 0.65 16.5 9/16" 0.03 10 100

1/4"

D2F2

1/4" - 18 NPTF steel

2.16

1.66 42.2 0.79 20.1 11/16" 0.03 10 100

1/4"

D2F2-B 1/4" - 18 NPTF brass

3.41

1.66 42.2 0.79 20.1 11/16" 0.05 10 100

1/4"

D2F2-S 1/4" - 18 NPTF 303 stainless

11.58

1.66 42.2 0.79 20.1 11/16" 0.05 10 100

1/4"

D2BF2 1/4" - 19 BSPP steel

3.55

1.66 42.2 0.79 20.1 11/16" 0.03 10 100

1/4"

D2F3

3/8" - 18 NPTF steel

3.63

1.66 42.2 1.01 25.7 7/8" 0.08 10 100

1/4"

D2F3-B 3/8" - 18 NPTF brass

5.23

1.66 42.2 1.01 25.7 7/8" 0.08 10 100

1/4"

D2F3-S 3/8" - 18 NPTF 303 stainless

12.58

1.66 42.2 1.01 25.7 7/8" 0.08 10 100

1/4"

D2BF3 3/8" - 19 BSPP steel

4.93

1.66 42.2 1.01 25.7 7/8" 0,08 10 100

3/8"

D3F2

1/4" - 18 NPTF steel

4.97

1.78 45.2 0.79 20.1 11/16" 0.06 10 50

3/8"

D3F3

3/8" - 18 NPTF steel

4.33

1.78 45.2 1.01 25.7 7/8" 0.09 10 50

3/8"

D3F3-B 3/8" - 18 NPTF brass

6.82

1.78 45.2 1.01 25.7 7/8" 0.10 10 50

3/8"

D3F3-S 3/8" - 18 NPTF 303 stainless

26.32

1.78 45.2 1.01 25.7 7/8" 0.09 10 50

3/8"

D3BF3 3/8" - 19 BSPP steel

4.97

1.78 45.2 1.01 25.7 7/8" 0.09 10 50

3/8"

D3F4

1/2" - 14 NPTF steel

7.89

1.94 49.3 1.16 29.5 1"

0.13 10 50

1/2"

D4F3

3/8" - 18 NPTF steel

7.60

2.10 53.3 1.01 25.7 7/8" 0.12 10 50

1/2"

D4F4

1/2" - 14 NPTF steel

7.31

2.27 57.7 1.16 29.5 1"

0.17 10 50

1/2"

D4F4-B 1/2" - 14 NPTF brass

8.87

2.27 57.7 1.16 29.5 1"

0.19 10 50

1/2"

D4F4-S 1/2" - 14 NPTF 303 stainless

28.65

2.27 57.7 1.16 29.5 1"

0.17 10 50

1/2"

D4BF4 1/2" - 14 BSPP steel

7.60

2.27 57.7 1.16 29.5 1"

0.17 10 50

1/2"

D4F6

3/4" - 14 NPTF steel

12.86

2.30 58.4 1.37 34.8 1-3/16" 0.26 10 50

1/2"

D4F6-B 3/4" - 14 NPTF brass

14.89

2.30 58.4 1.37 34.8 1-3/16" 0.26 10 50

3/4"

D6F4

1/2" - 14 NPTF steel

15.05

2.22 56.4 1.52 38.6 1-5/16" 0.23 5 20

3/4"

D6F6

3/4" - 14 NPTF steel

15.94

2.22 56.4 1.52 38.6 1-5/16" 0.34 5 20

3/4"

D6F8 1" - 11 1/2 NPTF steel

25.28

2.41 61.2 1.80 45.7 1-9/16" 0.47 5 20

DF Series Pneumatic Profile
