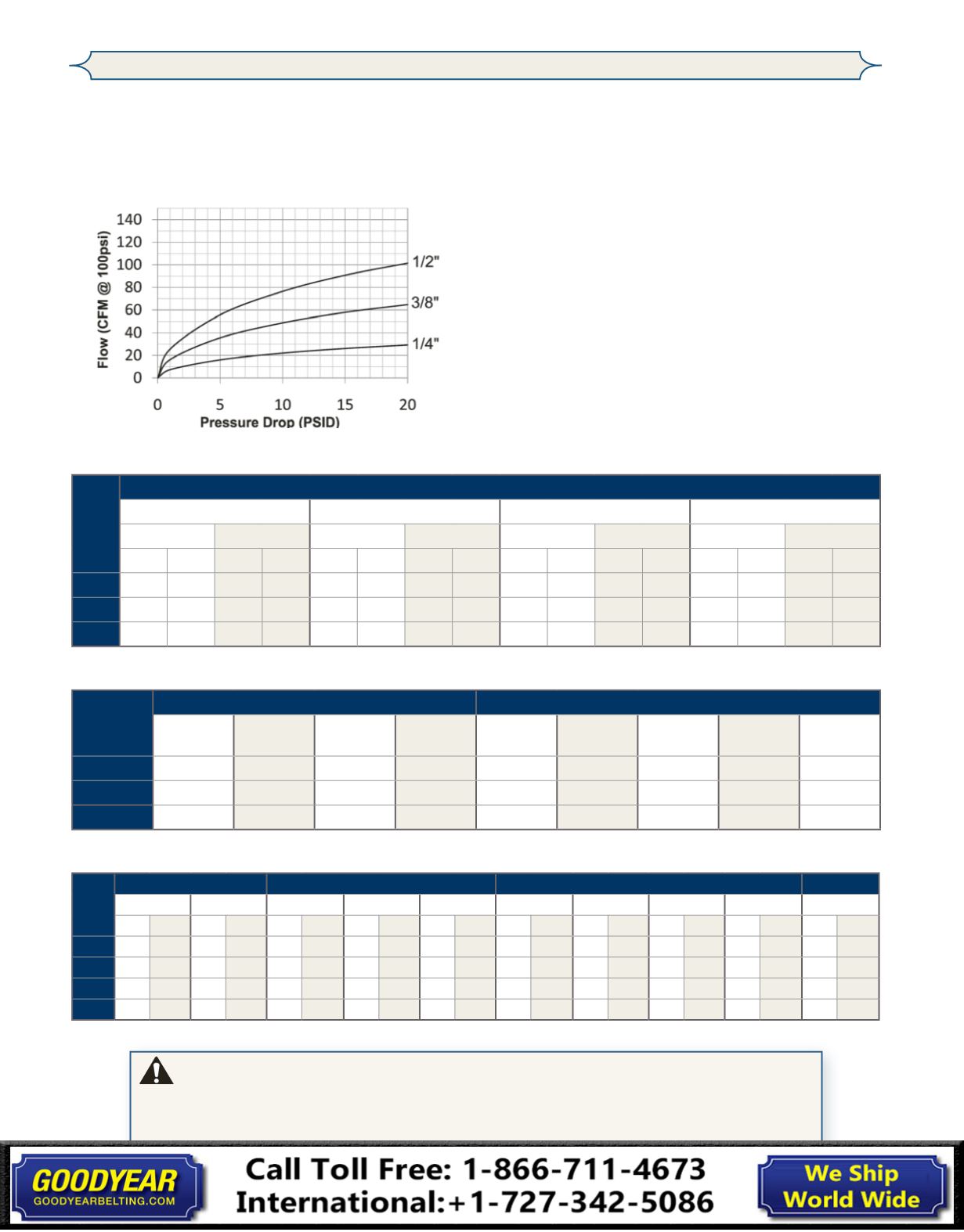

22

DQC116

877.963.4966 •

dixonvalve.com

J-Series Pneumatic Couplings

Interchange Data:

Truflate Automotive interchange style

Parker 10-Series

Rectus 55KM

Tomco A2100/PT400

Materials:

Machined components are manufactured using solid steel or

brass bar stock.

Stainless steel balls, retaining rings, and springs maximize

corrosion resistance and extend service life.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

¼" couplers constructed of brass with steel sleeve and steel

tubular valve as standard

⅜" and ½" couplers constructed of steel as standard with

steel tubular valves.

Nitrile (Buna-N) seals are standard providing a temperature

range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Seal Components:

Body

Size

J-Series Truflate Interchange (Connected)

Brass Coupler/Steel Plug

Brass Coupler/Plug

Steel Coupler/Plug

303 Stainless Coupler/Plug

Max. Working Burst

Max. Working Burst

Max. Working Burst

Max. Working Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

1/4"

500 35 11,500 793 300 20 10,500 724 -

-

-

-

-

-

-

-

3/8"

-

-

-

-

-

-

-

-

500 35 18,000 1,241 -

-

-

-

1/2"

-

-

-

-

-

-

-

-

500 35 10,000 690 -

-

-

-

Rated Pressure Chart:

Technical Specifications:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking Ball

Quantity

Air

Inclusion

Fluid

Loss

Vacuum

Rating

Flow

ΔP = 15 PSI

1/4"

-

-

-

-

6

N/A

N/A

N/R 26 CFM

3/8"

-

-

-

-

6

N/A

N/A

N/R 58 CFM

1/2"

-

-

-

-

6

N/A

N/A

N/A 91 CFM

Operating pressure for couplings utilizing hose barb end connections may be dramatically reduced

to that of the hose rating and/or hose end connection combination. Consult hose manufacturer's

catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to

application. Dixon Quick Coupling cannot assume liability for misapplication of production resulting in

equipment down-time, lost production, and/or personal injury including death.

List Price Seal Option Adders:

Body

Size

Seal Options

Valve Options

Sleeve Options

Treatments

FKM EPDM Unvalved Brass

303 SS Flanged Sleeve-Lock Brass

303 SS Oxy-Clean

Pre Add $ Pre Add $ Suf Add $ Suf Add $ Suf Add $ Suf Add $ Suf Add $ Suf Add $ Suf Add $ Suf Add $

1/4"

F-

$2.00

P-

$2.50

-E

-$.65

-BV

$.90

-SV

$.90

-FS

$2.60

-LS

$5.00

-BS

$2.60

-XS

$7.60

-C1

$12.00

3/8"

F-

3.10

P-

N/A

-E

-2.70

-BV

2.90

-SV

2.90

-FS

N/A

-LS

6.00

-BS

N/A

-XS

15.50

-C1

12.00

1/2"

F-

4.40

P-

N/A

-E

-3.00

-BV

3.50

-SV

3.50

-FS

N/A

-LS

7.50

-BS

N/A

-XS

20.00

-C1

14.00

3/4"

F-

N/A

P-

N/A

-E

-3.80

-BV

N/A

-SV

N/A

-FS

N/A

-LS

8.90

-BS

std.

-XS

N/A

-C1

16.00
