23

DQC116

877.963.4966 •

dixonvalve.com

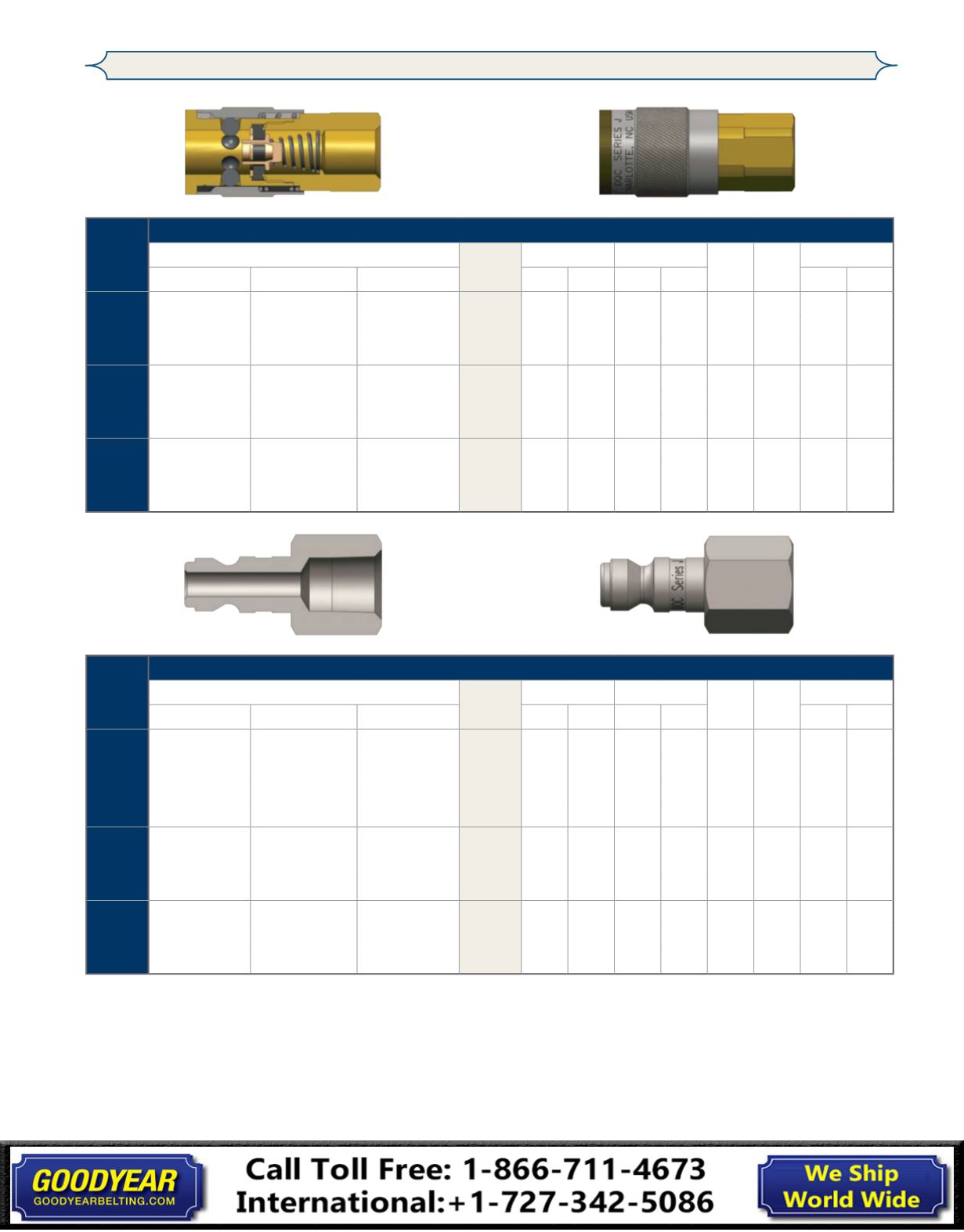

J-Series Pneumatic Couplings

Body

Size

J-Series Truflate Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2JF1-B 1/8" - 27 NPTF brass

$11.13

1.83 46.5 0.88 22.4 3/4" 0.19 10 100

1/4"

2JF2-B 1/4" - 18 NPTF brass

8.53

2.04 51.8 0.88 22.4 3/4" 0.19 10 100

1/4"

2JF3-B 3/8" - 18 NPTF brass

11.13

2.14 54.4 0.88 22.4 13/16" 0.20 10 100

3/8"

3JF2

1/4" - 18 NPTF steel

23.39

2.25 57.2 1.06 26.9 7/8" 0.30 10 50

3/8"

3JF3

3/8" - 18 NPTF steel

18.13

2.48 63.0 1.06 26.9 7/8" 0.29 10 50

3/8"

3JF4

1/2" - 14 NPTF steel

27.48

2.61 66.3 1.06 26.9 1"

0.46 10 50

1/2"

4FF3

3/8" - 18 NPTF steel

30.99

2.85 72.5 1.24 31.4 1"

0.46 5 30

1/2"

4FF4

1/2" - 14 NPTF steel

22.93

3.06 77.8 1.24 31.4 1"

0.56 5 30

1/2"

4FF6

3/4" - 14 NPTF steel

31.58

3.15 79.9 1.24 31.4 1-3/16" 0.63 5 30

Body

Size

J-Series Truflate Interchange Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

J2F1

1/8" - 27 NPTF steel

$3.45

1.34 34.0 0.65 16.5 9/16" 0.05 10 100

1/4"

J2F2

1/4" - 18 NPTF steel

2.16

1.56 39.6 0.79 20.1 11/16" 0.05 10 100

1/4"

J2F2-B 1/4" - 18 NPTF brass

3.41

1.56 39.6 0.79 20.1 11/16" 0.05 10 100

1/4"

J2F3

3/8" - 18 NPTF steel

3.63

1.56 39.6 1.01 25.7 7/8" 0.07 10 100

3/8"

J3F2

1/4" - 18 NPTF steel

4.97

1.75 44.5 0.79 20.1 11/16" 0.07 10 50

3/8"

J3F3

3/8" - 18 NPTF steel

4.33

1.75 44.5 1.01 25.7 7/8" 0.10 10 50

3/8"

J3F4

1/2" - 14 NPTF steel

7.89

1.91 48.5 1.16 29.5 1"

0.12 10 50

1/2"

J4F3

3/8" - 18 NPTF steel

7.60

2.11 53.6 1.01 25.7 7/8" 0.13 10 50

1/2"

J4F4

1/2" - 14 NPTF steel

7.31

2.26 57.4 1.16 29.5 1"

0.18 10 50

1/2"

J4F6

3/4" - 14 NPTF steel

12.86

2.31 58.7 1.37 34.8 1-3/16" 0.26 10 50
