24

DQC116

877.963.4966 •

dixonvalve.com

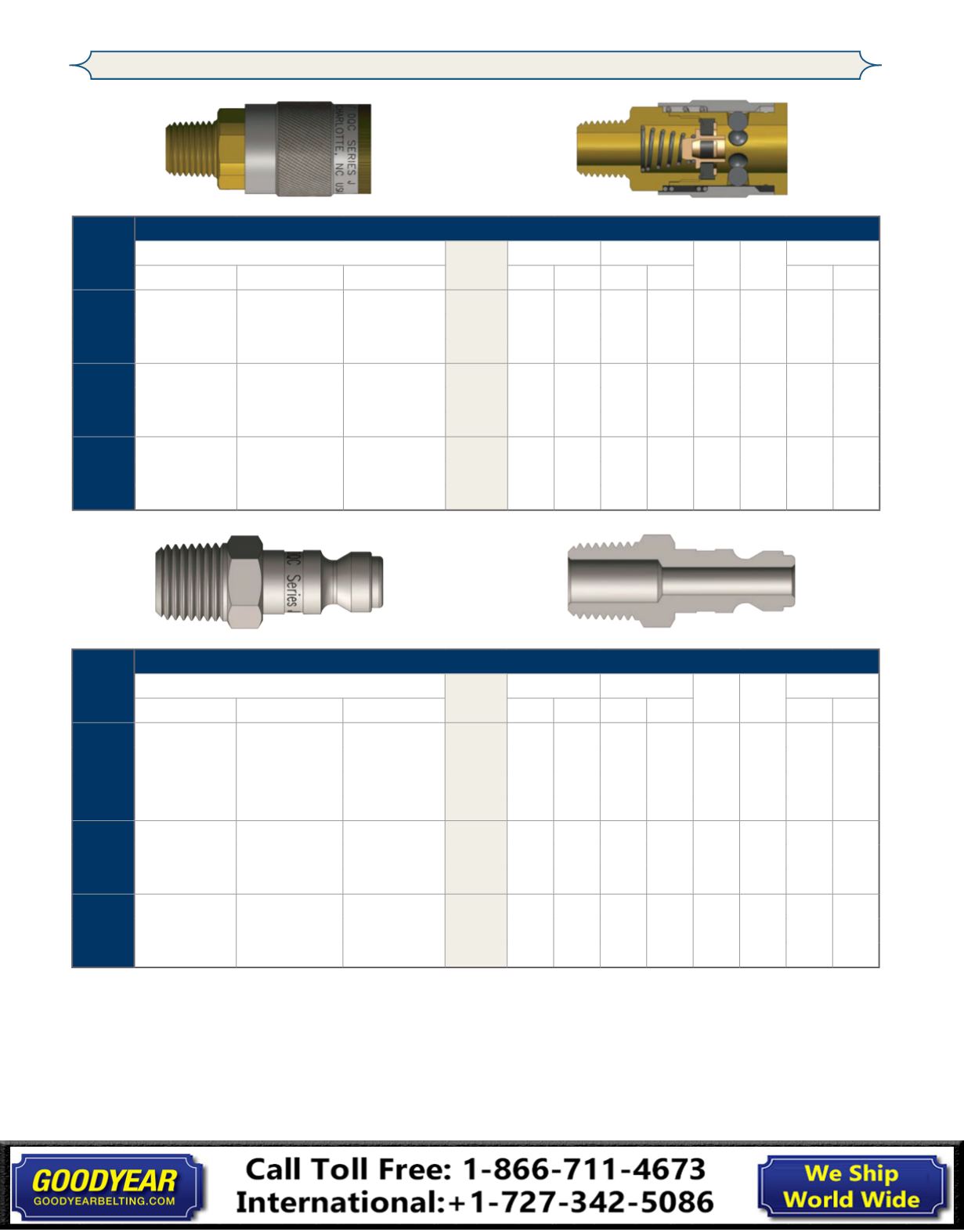

J-Series Pneumatic Couplings

Body

Size

J-Series Truflate Interchange Coupler (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2JM1-B 1/8" - 27 NPTF brass

$11.25

1.88 47.8 0.88 22.4 3/4" 0.17 10 100

1/4"

2JM2-B 1/4" - 18 NPTF brass

8.53

2.047 52.0 0.88 22.4 3/4" 0.18 10 100

1/4"

2JM3-B 3/8" - 18 NPTF brass

11.25

2.08 52.8 0.88 22.4 3/4" 0.19 10 100

3/8"

3JM2

1/4" - 18 NPTF steel

21.99

2.45 62.2 1.06 26.9 7/8" 0.26 10 50

3/8"

3JM3

3/8" - 18 NPTF steel

18.94

2.46 62.5 1.06 26.9 7/8" 0.27 10 50

3/8"

3JM4

1/2" - 14 NPTF steel

24.33

2.55 64.8 1.06 26.9 7/8" 0.28 10 50

1/2"

4FM3 3/8" - 18 NPTF steel

29.94

2.97 75.4 1.19 30.2 1"

0.42 5 30

1/2"

4FM4 1/2" - 14 NPTF steel

21.75

3.07 78.0 1.19 30.2 1"

0.45 5 30

1/2"

4FM6 3/4" - 14 NPTF steel

31.46

3.12 79.2 1.19 30.2 1-1/16" 0.50 5 30

Body

Size

J-Series Truflate Interchange Nipple (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

J2M1

1/8" - 27 NPTF steel

$2.75

1.47 37.3 0.58 14.7 1/2" 0.04 10 100

1/4"

J2M2

1/4" - 18 NPTF steel

2.10

1.59 40.4 0.65 16.5 9/16" 0.05 10 100

1/4"

J2M2-B 1/4" - 18 NPTF brass

2.39

1.59 40.4 0.65 16.5 9/16" 0.06 10 100

1/4"

J2M3

3/8" - 18 NPTF steel

3.16

1.65 41.9 0.79 20.1 11/16" 0.05 10 100

3/8"

J3M2

1/4" - 18 NPTF steel

3.56

1.78 45.2 0.79 20.1 11/16" 0.08 10 50

3/8"

J3M3

3/8" - 18 NPTF steel

3.51

1.84 46.7 0.79 20.1 11/16" 0.09 10 50

3/8"

J3M4

1/2" - 14 NPTF steel

7.01

2 50.8 1.01 25.7 7/8" 0.12 10 50

1/2"

J4M3

3/8" - 18 NPTF steel

5.73

2.2 55.9 0.79 20.1 11/16" 0.13 10 50

1/2"

J4M4

1/2" - 14 NPTF steel

5.85

2.35 59.7 1.01 25.7 7/8" 0.17 10 50

1/2"

J4M6

3/4" - 14 NPTF steel

10.76

2.51 63.8 1.23 31.2 1-1/16" 0.24 10 50
