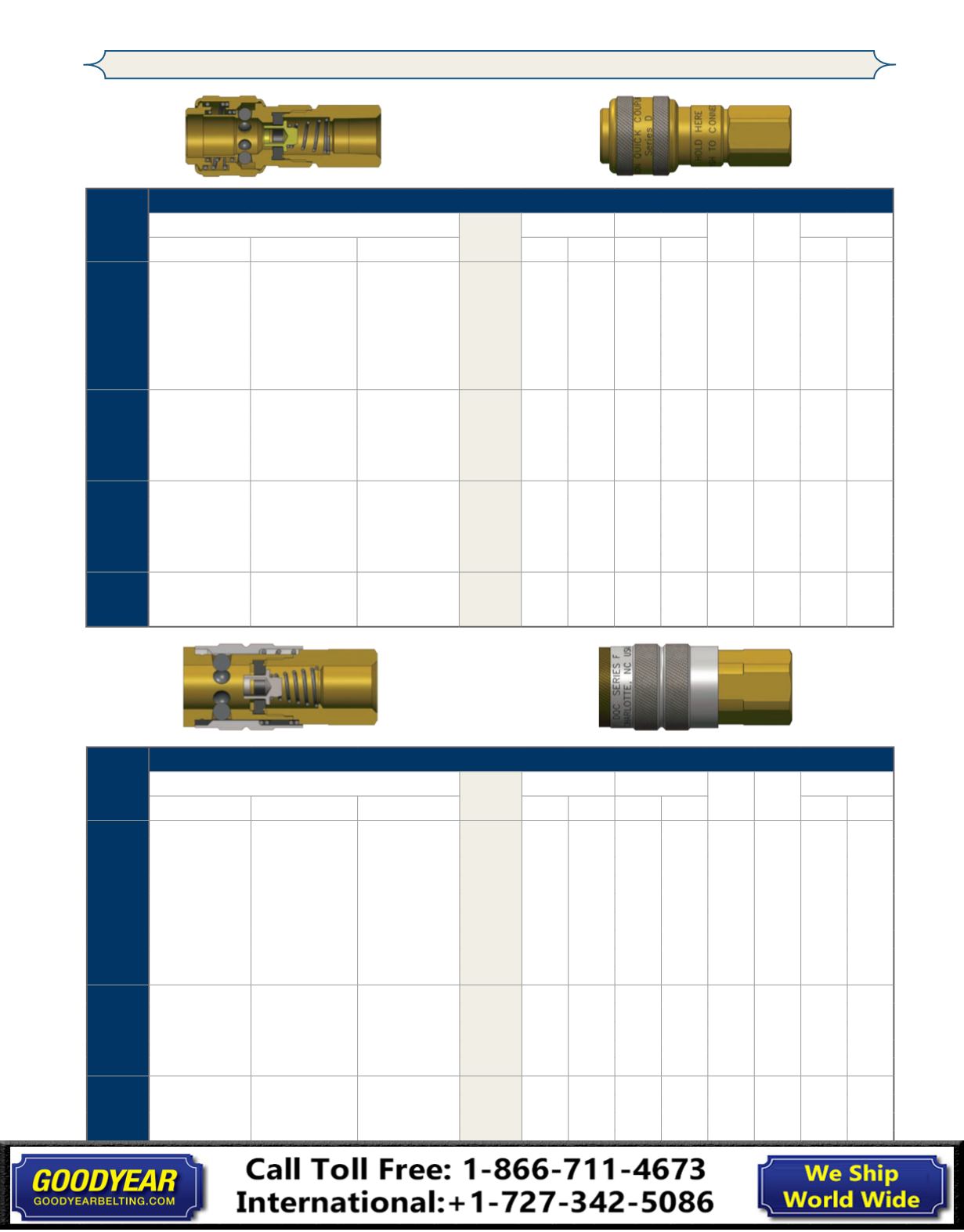

DF-Series Pneumatic Couplings

Body

Size

D-Series Automatic Industrial Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2DF1-B 1/8" - 27 NPTF brass

$15.79

2.19 55.6 0.99 25.1 11/16" 0.30 10 100

1/4"

2DF2-B 1/4" - 18 NPTF brass

13.17

2.38 60.5 0.99 25.1 11/16" 0.28 10 100

1/4"

2DF2-S 1/4" - 18 NPTF 303 stainless

69.28

2.38 60.5 0.99 25.1 11/16" 0.29 10 100

1/4"

2DBF2-B 1/4" - 19 BSPP brass

13.17

2.38 60.5 0.99 25.1 11/16" 0.28 10 100

1/4"

2DF3-B 3/8" - 18 NPTF brass

15.54

2.38 60.5 0.99 25.1 11/16" 0.30 10 100

1/4"

2DF3-S 3/8" - 18 NPTF 303 stainless

82.79

2.38 60.5 0.99 25.1 13/16" 0.30 10 100

1/4"

2DBF3-B 3/8" - 19 BSPP brass

15.54

2.38 60.5 0.99 25.1 13/16" 0.30 10 100

3/8"

3DF2-B 1/4" - 18 NPTF brass

26.78

2.50 63.5 1.26 32.0 7/8" 0.43 10 50

3/8"

3DF3-B 3/8" - 18 NPTF brass

25.73

2.60 66.0 1.26 32.0 7/8" 0.42 10 50

3/8"

3DF3-S 3/8" - 18 NPTF 303 stainless

103.50

2.60 66.0 1.26 32.0 7/8" 0.42 10 50

3/8"

3DBF3-B 3/8" - 19 BSPP brass

26.78

2.60 66.0 1.26 32.0 7/8" 0.42 10 50

3/8"

3DF4-B 1/2" - 14 NPTF brass

28.07

2.80 71.1 1.26 32.0 1"

0.46 10 50

1/2"

4DF3-B 3/8" - 18 NPTF brass

35.62

3.10 78.7 1.38 35.1 1-1/16" 0.56 5 30

1/2"

4DF4-B 1/2" - 14 NPTF brass

36.26

3.30 83.8 1.38 35.1 1-1/16" 0.66 5 30

1/2"

4DF4-S 1/2" - 14 NPTF 303 stainless

139.62

3.30 83.8 1.38 35.1 1-1/16" 0.67 5 30

1/2"

4DBF4-B 1/2" - 14 BSPP brass

36.26

3.30 83.8 1.38 35.1 1-1/16" 0.66 5 30

1/2"

4DF6-B 3/4" - 14 NPTF brass

36.26

3.40 86.4 1.38 35.1 1-3/16" 0.73 5 30

3/4"

6DF4-B 1/2" - 14 NPTF brass

56.14

2.95 74.9 1.73 43.9 1-5/16" 1.10 -

20

3/4"

6DF6-B 3/4" - 14 NPTF brass

56.14

2.99 75.9 1.73 43.9 1-5/16" 1.10 -

20

3/4"

6DF8-B 1" - 11 1/2 NPTF brass

56.14

3.18 80.8 1.73 43.9 1-1/2" 1.24 -

20

Body

Size

F-Series Manual Industrial Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2FF1-B 1/8" - 27 NPTF brass

$11.46

1.91 48.6 0.93 23.5 3/4" 0.20 10 100

1/4"

2FBF1-B 1/8" - 28 BSPP brass

11.46

1.91 48.6 0.93 23.5 3/4" 0.20 10 100

1/4"

2FF2

1/4" - 18 NPTF steel

11.91

2.07 52.6 0.93 23.5 3/4" 0.20 10 100

1/4"

2FF2-B 1/4" - 18 NPTF brass

8.53

2.07 52.6 0.93 23.5 3/4" 0.19 10 100

1/4"

2FF2-S 1/4" - 18 NPTF 303 stainless

49.12

2.07 52.6 0.93 23.5 3/4" 0.20 10 100

1/4"

2FBF2-B 1/4" - 19 BSPP brass

11.46

2.07 52.6 0.93 23.5 3/4" 0.19 10 100

1/4"

2FF3-B 3/8" - 18 NPTF brass

11.13

2.10 53.4 0.93 23.5 13/16" 0.19 10 100

1/4"

2FF3-S 3/8" - 18 NPTF 303 stainless

54.38

2.10 53.4 0.93 23.5 13/16" 0.18 10 100

1/4"

2FBF3-B 3/8" - 19 BSPP brass

11.46

2.13 54.2 0.93 23.5 13/16" 0.19 10 100

3/8"

3FF2

1/4" - 18 NPTF steel

23.39

2.41 61.2 1.13 28.6 7/8" 0.30 10 50

3/8"

3FF3

3/8" - 18 NPTF steel

18.13

2.41 61.2 1.13 28.6 7/8" 0.32 10 50

3/8"

3FF3-S 3/8" - 18 NPTF 303 stainless

85.38

2.41 61.2 1.13 28.6 7/8" 0.32 10 50

3/8"

3FBF3 3/8" - 19 BSPP steel

23.39

2.42 61.5 1.13 28.6 7/8" 0.32 10 50

3/8"

3FF4

1/2" - 14 NPTF steel

27.48

2.63 66.9 1.13 28.6 1"

0.34 10 50

1/2"

4FF3

3/8" - 18 NPTF steel

30.99

2.85 72.5 1.24 31.4 1"

0.46 5 30

1/2"

4FF4

1/2" - 14 NPTF steel

22.93

3.06 77.8 1.24 31.4 1"

0.56 5 30

1/2"

4FF4-S 1/2" - 14 NPTF 303 stainless

107.59

3.06 77.8 1.24 31.4 1"

0.56 5 30

1/2"

4FBF4 1/2" - 14 BSPP steel

30.99

3.09 78.4 1.24 31.4 1"

0.56 5 30

1/2"

4FF6

3/4" - 14 NPTF steel

31.58

3.15 79.9 1.24 31.4 1-3/16" 0.63 5 30
