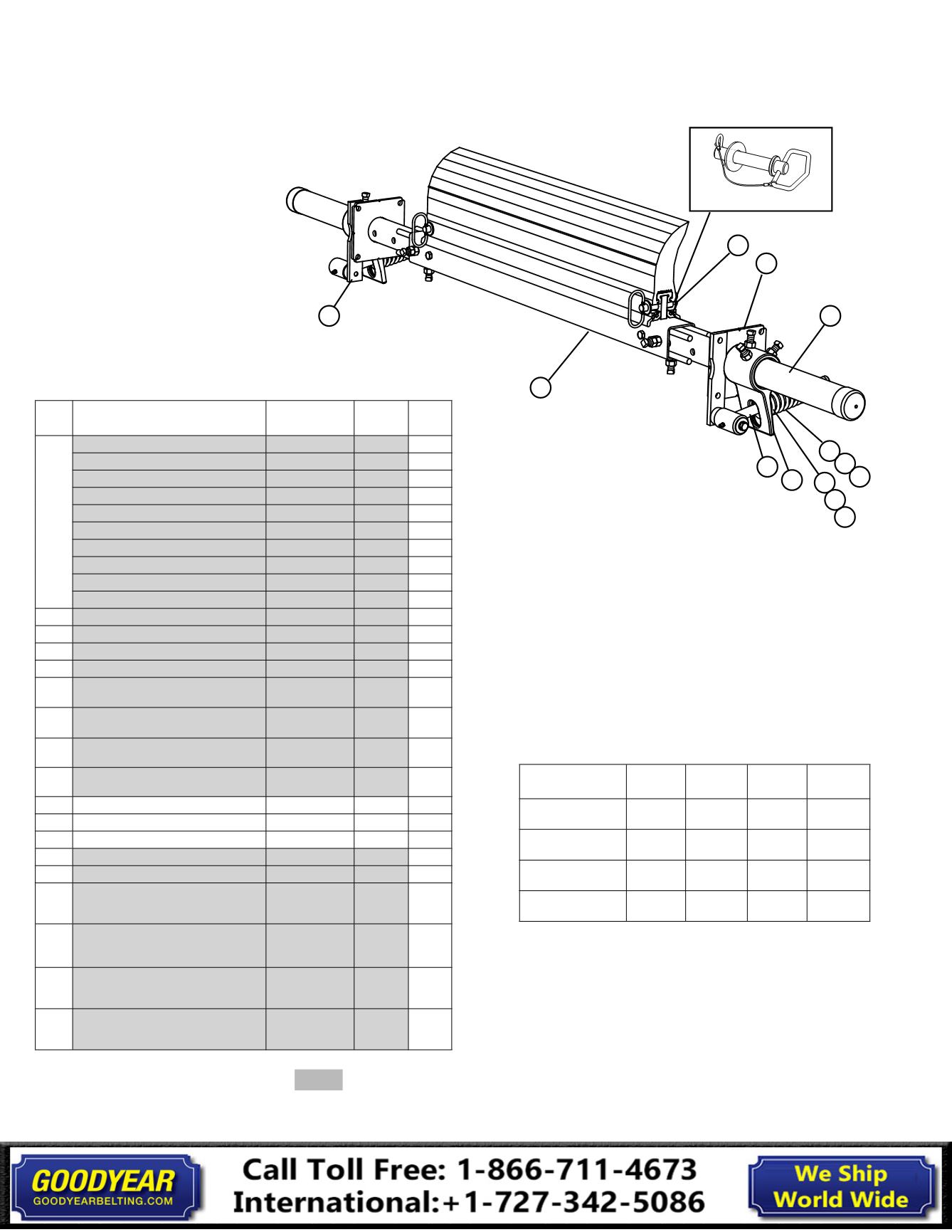

Replacement
Parts List
Stainless Steel MMP
Medium Mine-Duty Precleaner
U.S. Patent No. D482,508S
Shaded items are made to order.
Lead time: 3 weeks
Spring Tensioner Selection Chart
CLEANER BLADE
WIDTH
77584
QMT-P-S/S
77585
QMT-W-S/S
77586
QMT-G-S/S
79059
QMT-S-S/S
TuffShear 18" - 24"
(450 - 600mm)
X
TuffShear 30" - 48"
(750 - 1200mm)
X
TuffShear 54" - 78"
(1350 - 1950mm)
X
TuffShear 84"-90"
(2100-2250mm)
X
6
2
6a
6b
Detail view of Item 4
3
7
7a
4
1
8
5
9
7b
P R O D U C T H A N D B O O K
Replacement Parts
REF DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS.
1
24" (600mm) SS Center Pole
MMPCP24-S/S 77590 34.4
30" (750mm) SS Center Pole
MMPCP30-S/S 77591 43.0
36" (900mm) SS Center Pole
MMPCP36-S/S 77592 51.6
42" (1050mm) SS Center Pole
MMPCP42-S/S 77593 60.1
48" (1200mm) SS Center Pole
MMPCP48-S/S 77594 68.7
54" (1350mm) SS Center Pole
MMPCP54-S/S 77595 77.3
60" (1500mm) SS Center Pole
MMPCP60-S/S 77596 85.9
72" (1800mm) SS Center Pole
MMPCP72-S/S 77597 103.1
84" (2100mm) SS Center Pole
MMPCP84-S/S 77598 120.3
96" (2400mm) SS Center Pole
MMPCP96-S/S 78686 137.5
2
SS Extender Pole Kit
(2 ea.)
MHP-EP-S/S 77599 54.0
3
SS Mounting Plate Kit*
(2 ea.)
MSPMPK-S/S 77582
8.3
4
SS Blade Pin Kit*
(1 ea.)
MMPBPK-S/S 77600
0.8
5
SS Pivot Arm Kit*
(1 ea.)
QMTPAK-S/S 77587
4.3
6
SS Tension Spring - Purple
(1 ea.)
for blades 24" (600mm)
QMTS-P-S/S 77450
0.6
6a SS Tension Spring - White
(1 ea.)
for blades 30" - 48" (750 - 1200mm)
QMTS-W-S/S 77451
1.7
6b SS Tension Spring - Gold
(1 ea.)
for blades 54" - 78" (1350 - 1950mm)
QMTS-G-S/S 77452
2.5
6c SS Tension Spring - Silver
(1 ea.)
for blades 84"-90" (2100-2250mm)
QMTS-S-S/S 79056
3.1
7
Bushing Kit - Purple
(2 ea.)
QMTBK-P 76097
0.1
7a Bushing Kit - White and Silver
(2 ea.)
QMTBK-W 76098
0.2
7b Bushing Kit - Gold
(2 ea.)
QMTBK-G 76540
0.3
8
SS Pivot Shaft Bracket Kit*
(1 ea.)
QMTPSBK-S/S 77588
4.3
9
SS Torsion Arm Kit*
(1 ea.)
PSTA-S/S 77442 11.4
-
SS QMT Spring Tensioner* - Purple
(incl. 1 ea. Items 5, 6, 7, 8, & 9)
for blades 18" - 24" (450 - 600mm)
QMT-P-S/S 77584 20.4
-
SS QMT Spring Tensioner* - White
(incl. 1 ea. Items 5, 6a, 7a, 8, & 9)
for blades 30" - 48" (750 - 1200mm)
QMT-W-S/S 77585 21.8
-
SS QMT Spring Tensioner* - Gold
(incl. 1 ea. Items 5, 6b, 7b, 8, & 9)
for blades 54" - 78" (1350 - 1800mm)
QMT-G-S/S 77586 23.2
-
SS QMT Spring Tensioner* - Silver
(incl. 1 ea. Items 5, 6c, 7a, 8 & 9)
for blades 84"-90" (2100-2250mm)
QMT-S-S/S 79059 24.6
*Hardware Included
Lead Time: 1 working day
