Specifications
& Guidelines
Flexco Slider/Impact Beds
Roller Size and CEMA Rating
5" (125mm)
6" (150mm)
CEMA
C
D
E
Belt Width:
Bed Length: 4' (1.2M) 5' (1.5M)
Easy Solution for Load Zone Problems
• Complete load zone offering with slider beds through impact beds for up to 750 ft-lbs of force.
• No specifying trough angle; each bed is adjustable for 20°, 35° and 45° trough settings (ships at 35° setting).
• Low-profile installation. Because EZ Series beds feature trough wings that are adjustable, they lay flat during
installation, providing more clearance.
• Full UHMW slider bars included on outside bar to provide proper sealing and long life.
• Unique Impact Bar Supports protect the impact bars from damage, extending service life. An Anti-Migratory
Tab on each support secures the bar and prevents it from sliding in the direction of belt travel.
• All beds are manufactured for mounting holes belt width +9” (225mm), per CEMA. For wider structure,
contact Customer Service for special quote.
How to spec the correct slider/impact
bed for your conveyor transfer point

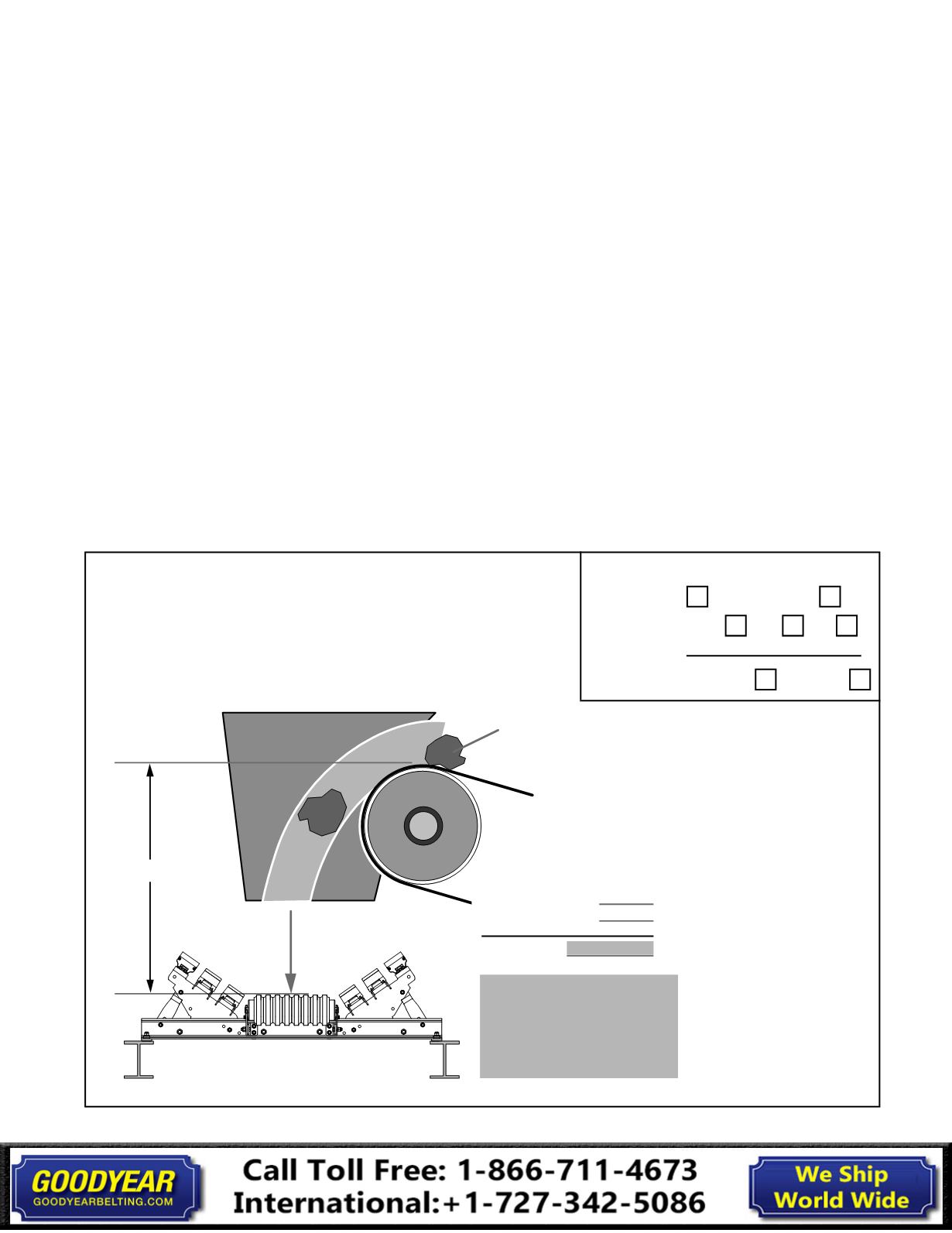

Impact Energy Calculation Chart
Largest Material
Lump Weight (
w
)
Drop Height (
h
)
Lump Weight (
w
)
Drop Height (
h
)
Total =
lb-ft
x
Impact Energy
See Below
0 lb-ft—
EZSB-C
0 - 200 lb-ft—
(25kg-m)
EZSB-I or EZIB-L
200 - 750 lb-ft—
(25-100 kg-m)
EZIB-M
