Product Ordering
Information

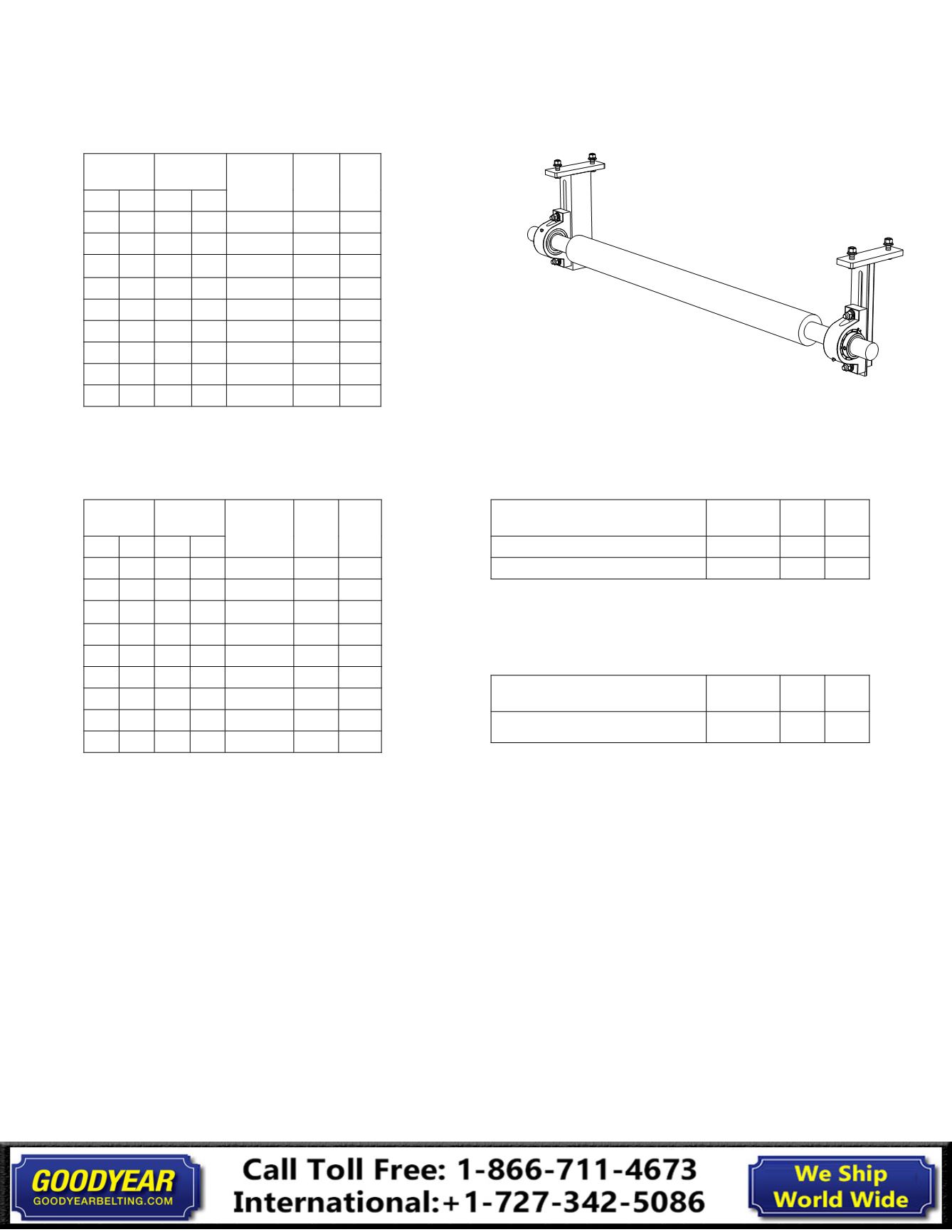

Live-Shaft Hold-Down Roll
Belt Cleaner Accessories
Specifications:
• Overall Roll Length...................................Belt Width +6” (150mm)
• Overall Shaft Length................................Belt Width +30” (750mm)
• Shaft Diameter .........................................24”- 42” (600-1050mm) - 1-15/16” diameter
....................................................................48”- 60” (1200-1500mm) - 2-7/16” diameter
....................................................................72”- 84” (1800-2100mm) - 2-15/16” diameter
• Shaft Construction...................................24”- 60” (600-1500mm) - 1045 CD
....................................................................72”- 84” (1800-2100mm) - turned from solid 4140 round stock
Product Notes:
• For use in applications with belt cup or belt flap.
• By preventing these issues secondary cleaner performance and blade/tip life is enhanced.
P R O D U C T H A N D B O O K
Live-Shaft Hold-Down Roll
BELT WIDTH
ROLL
DIAMETER ORDERING
NUMBER
ITEM
CODE
WT.
LBS in. mm in. mm
24 600 4 1/2 114 HDR24 79010 159.0
30 750 4 1/2 114 HDR30 79011 169.0
36 900 4 1/2 114 HDR36 79012 180.0
42 1050 4 1/2 114 HDR42 79013 190.0
48 1200 4 1/2 114 HDR48 79014 249.0
54 1350 4 1/2 114 HDR54 79015 255.0
60 1500 4 1/2 114 HDR60 79016 265.0
72 1800 5 127 HDRS72* 79017 565.0
84 2100 5 127 HDRS84* 79018 615.0
*72” and 84” feature solid roll
Lead time: 1 working day
Replacement Roll
BELT WIDTH
ROLL
DIAMETER ORDERING
NUMBER
ITEM
CODE
WT.
LBS in. mm in. mm
24 600 4 1/2 114 HDRR24 79019 114.0
30 750 4 1/2 114 HDRR30 79020 124.0
36 900 4 1/2 114 HDRR36 79021 135.0
42 1050 4 1/2 114 HDRR42 79022 145.0
48 1200 4 1/2 114 HDRR48 79023 204.0
54 1350 4 1/2 114 HDRR54 79024 210.0
60 1500 4 1/2 114 HDRR60 79025 220.0
72 1800 5 127 HDRRS72* 79026 520.0
84 2100 5 127 HDRRS84* 79027 570.0
*72” and 84” feature solid roll
Lead time: 1 working day
Roller Bracket Kit*
DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS
Hold Down Roll Bracket Kit - 24" to 60" HDRBK 79009 45.0
HD Hold Down Roll Bracket Kit - 72" to 84" HDRBK-HD 79072 45.0
*Includes Left and Right Bracket
Lead time: 1 working day
Add-On Grease Hose Extension Kit
DESCRIPTION
ORDERING
NUMBER
ITEM
CODE
WT.
LBS
Grease Hose Extension Kit
incl. 2 ea. 16” hose w/fittings and tie-downs
HDRGEK 79236 1.0
Lead time: 1 working day
