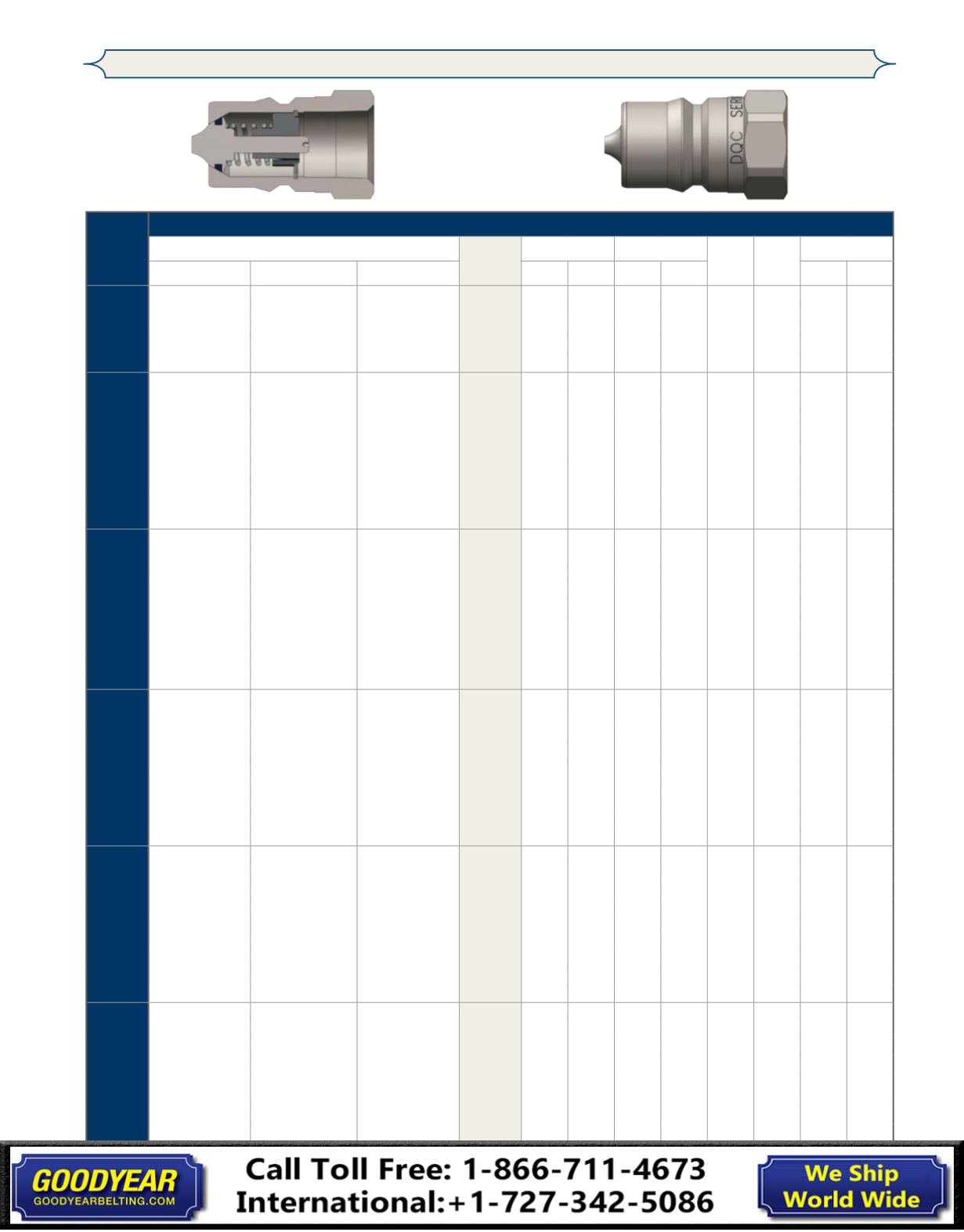

H-Series Hydraulic Couplings

Body

Size

H-Series ISO-B Interchange Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/8"

H1F1

1/8" - 27 NPTF

steel

$9.85

1.28 32.5 0.65 16.5 9/16" 0.03 10 100

1/8"

H1F1-B 1/8" - 27 NPTF

brass

9.57

1.28 32.5 0.65 16.5 9/16" 0.04 10 100

1/8"

H1F1-S 1/8" - 27 NPTF 303 stainless

23.16

1.28 32.5 0.65 16.5 9/16" 0.03 10 100

1/8"

H1F1-SS 1/8" - 27 NPTF 316 stainless

57.75

1.28 32.5 0.65 16.5 9/16" 0.03 10 100

1/8"

H1OF2 7/16" - 20 ORB

steel

12.16

1.28 32.5 0.65 16.5 9/16" 0.05 10 100

1/4"

H2F2

1/4" - 18 NPTF

steel

10.95

1.55 39.4 0.83 21.1 3/4" 0.08 10 50

1/4"

H2F2-B 1/4" - 18 NPTF

brass

10.64

1.55 39.4 0.83 21.1 3/4" 0.09 10 50

1/4"

H2F2-S 1/4" - 18 NPTF 303 stainless

26.14

1.55 39.4 0.83 21.1 3/4" 0.08 10 50

1/4"

H2F2-SS 1/4" - 18 NPTF 316 stainless

69.34

1.55 39.4 0.83 21.1 3/4" 0.08 10 50

1/4"

H2BF2

1/4" - 19 BSPP

steel

12.74

1.55 39.4 0.83 21.1 3/4" 0.08 10 50

1/4"

H2BF2-B 1/4" - 19 BSPP

brass

12.38

1.55 39.4 0.83 21.1 3/4" 0.09 10 50

1/4"

H2BF2-S 1/4" - 19 BSPP 303 stainless

26.14

1.55 39.4 0.83 21.1 3/4" 0.08 10 50

1/4"

H2BF2-SS 1/4" - 19 BSPP 316 stainless

69.34

1.55 39.4 0.83 21.1 3/4" 0.08 10 50

1/4"

H2OF3 9/16" - 18 ORB

steel

12.98

1.61 40.9 0.90 22.9 13/16" 0.10 10 50

3/8"

H3F3

3/8" - 18 NPTF

steel

13.20

1.70 43.2 0.97 24.6 7/8" 0.12 10 50

3/8"

H3F3-B 3/8" - 18 NPTF

brass

15.76

1.70 43.2 0.97 24.6 7/8" 0.10 10 50

3/8"

H3F3-S 3/8" - 18 NPTF 303 stainless

42.95

1.70 43.2 0.97 24.6 7/8" 0.12 10 50

3/8"

H3F3-SS 3/8" - 18 NPTF 316 stainless

102.32

1.70 43.2 0.97 24.6 7/8" 0.12 10 50

3/8"

H3BF3

3/8" - 19 BSPP

steel

16.68

1.70 43.2 0.97 24.6 7/8" 0.12 10 50

3/8"

H3BF3-B 3/8" - 19 BSPP

brass

19.14

1.70 43.2 0.97 24.6 7/8" 0.10 10 50

3/8"

H3BF3-S 3/8" - 19 BSPP 303 stainless

42.95

1.70 43.2 0.97 24.6 7/8" 0.12 10 50

3/8"

H3BF3-SS 3/8" - 19 BSPP 316 stainless

102.32

1.70 43.2 0.97 24.6 7/8" 0.12 10 50

3/8"

H3OF4

3/4" - 16 ORB

steel

22.01

1.79 45.5 1.10 27.9 1"

0.16 10 50

1/2"

H4F4

1/2" - 14 NPTF

steel

14.36

1.94 49.3 1.17 29.7 1-1/16" 0.24 5 25

1/2"

H4F4-B 1/2" - 14 NPTF

brass

18.57

1.94 49.3 1.17 29.7 1-1/16" 0.25 5 25

1/2"

H4F4-S 1/2" - 14 NPTF 303 stainless

68.05

1.94 49.3 1.17 29.7 1-1/16" 0.24 5 25

1/2"

H4F4-SS 1/2" - 14 NPTF 316 stainless

132.33

1.94 49.3 1.17 29.7 1-1/16" 0.24 5 25

1/2"

H4BF4

1/2" - 14 BSPP

steel

18.44

1.94 49.3 1.17 29.7 1-1/16" 0.24 5 25

1/2"

H4BF4-B 1/2" - 14 BSPP

brass

18.57

1.94 49.3 1.17 29.7 1-1/16" 0.25 5 25

1/2"

H4BF4-S 1/2" - 14 BSPP 303 stainless

70.08

1.94 49.3 1.17 29.7 1-1/16" 0.24 5 25

1/2"

H4BF4-SS 1/2" - 14 BSPP 316 stainless

149.03

1.94 49.3 1.17 29.7 1-1/16" 0.24 5 25

1/2"

H4OF5

7/8" - 14 ORB

steel

24.33

1.94 49.3 1.24 31.5 1-1/8" 0.27 5 25

3/4"

H6F6

3/4" - 14 NPTF

steel

28.38

2.41 61.2 1.44 36.6 1-5/16" 0.46 -

10

3/4"

H6F6-B 3/4" - 14 NPTF

brass

31.58

2.41 61.2 1.44 36.6 1-5/16" 0.50 -

10

3/4"

H6F6-S 3/4" - 14 NPTF 303 stainless

103.67

2.41 61.2 1.44 36.6 1-5/16" 0.46 -

10

3/4"

H6F6-SS 3/4" - 14 NPTF 316 stainless

186.47

2.41 61.2 1.44 36.6 1-5/16" 0.45 -

10

3/4"

H6BF6

3/4" - 14 BSPP

steel

33.59

2.41 61.2 1.44 36.6 1-5/16" 0.46 -

10

3/4"

H6BF6-B 3/4" - 14 BSPP

brass

36.98

2.41 61.2 1.44 36.6 1-5/16" 0.50 -

10

3/4"

H6BF6-S 3/4" - 14 BSPP 303 stainless

103.67

2.41 61.2 1.44 36.6 1-5/16" 0.46 -

10

3/4"

H6BF6-SS 3/4" - 14 BSPP 316 stainless

250.45

2.41 61.2 1.44 36.6 1-5/16" 0.45 -

10

3/4"

H6OF6 1-1/16" - 12 ORB steel

37.07

2.41 61.2 1.44 36.6 1-5/16" 0.46 -

10

1"

H8F8

1" - 11 1/2 NPTF

steel

40.54

2.87 72.9 1.79 45.5 1-5/8" 0.76 -

10

1"

H8F8-B 1" - 11 1/2 NPTF

brass

48.40

2.87 72.9 1.79 45.5 1-5/8" 0.76 -

10

1"

H8F8-S 1" - 11 1/2 NPTF 303 stainless

164.21

2.87 72.9 1.79 45.5 1-5/8" 0.76 -

10

1"

H8F8-SS 1" - 11 1/2 NPTF 316 stainless

294.75

2.87 72.9 1.79 45.5 1-5/8" 0.76 -

10

1"

H8BF8

1" - 11 BSPP

steel

44.01

2.87 72.9 1.79 45.5 1-5/8" 0.76 -

10

1"

H8BF8-B 1" - 11 BSPP

brass

51.78

2.87 72.9 1.79 45.5 1-5/8" 0.76 -

10

1"

H8BF8-S 1" - 11 BSPP 303 stainless

179.54

2.87 72.9 1.79 45.5 1-5/8" 0.77 -

10

1"

H8BF8-SS 1" - 11 BSPP 316 stainless

358.51

2.87 72.9 1.79 45.5 1-5/8" 0.76 -

10

1"

H8OF8 1-5/16" - 12 ORB steel

67.76

2.87 72.9 1.79 45.5 1-5/8" 0.80 -

10
