64

DQC116

877.963.4966 •

dixonvalve.com

H-Series Hydraulic Couplings

Body

Size

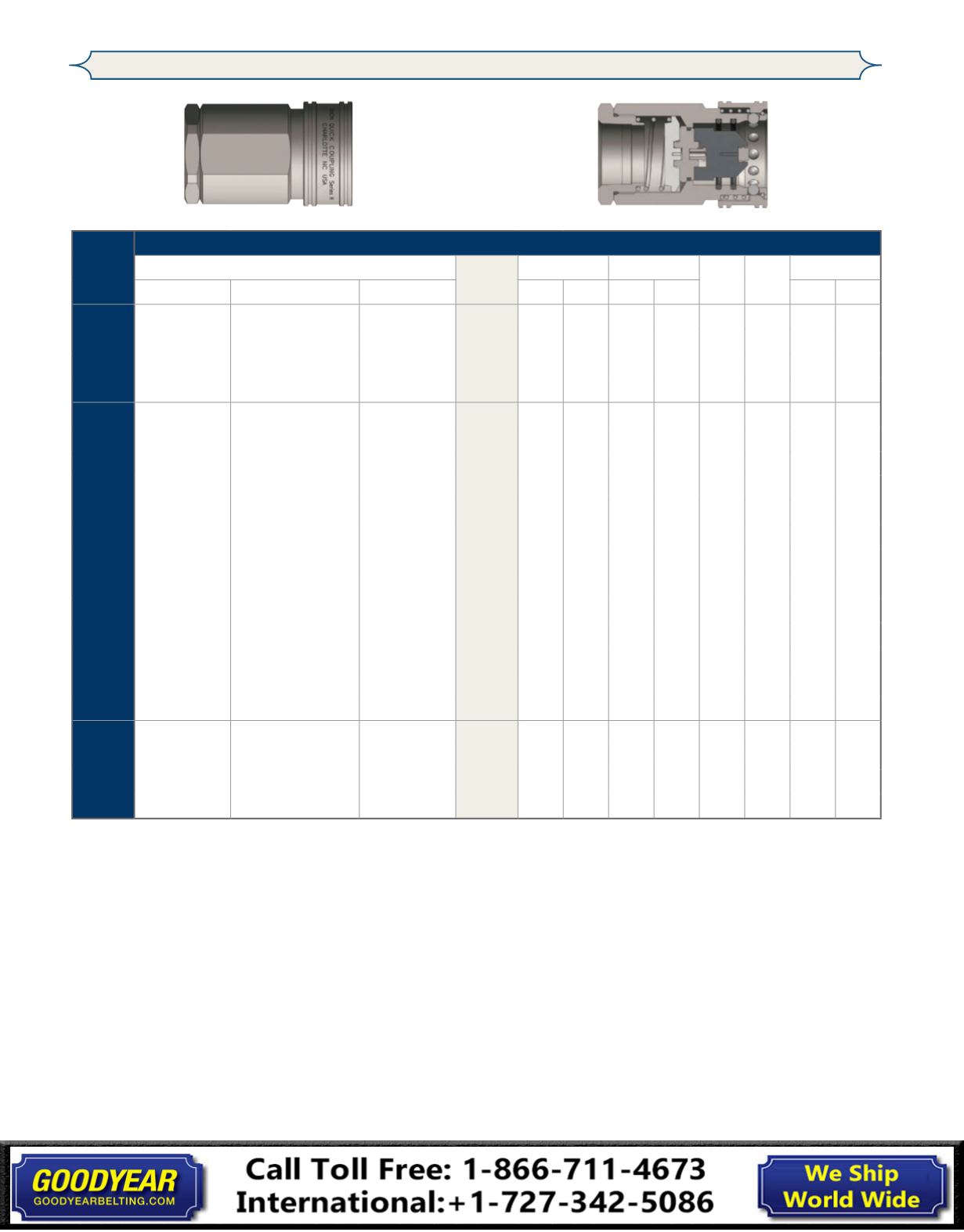

H-Series ISO-B High Volume Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1-1/4"

10HF10 1-1/4" - 11 1/2 NPTF

steel

$452.45

4.50 114.3 2.60 66.0 2-3/8" 3.50 -

1

1-1/4"

10HF10-B 1-1/4" - 11 1/2 NPTF brass

360.40

4.50 114.3 2.60 66.0 2-3/8" 3.50 -

1

1-1/4"

10HF10-S 1-1/4" - 11 1/2 NPTF 303 stainless

866.73

4.50 114.3 2.60 66.0 2-3/8" 3.51 -

1

1-1/4"

10HBF10 1-1/4" - 11 BSPP

steel

463.31

4.50 114.3 2.60 66.0 2-3/8" 3.50 -

1

1-1/2"

12HF10 1-1/4" - 11 1/2 NPTF

steel

434.84

4.81 122.2 3.00 76.2 2-5/8" 4.70 -

1

1-1/2"

12HF10-B 1-1/4" - 11 1/2 NPTF brass

545.87

4.81 122.2 3.00 76.2 2-5/8" 4.68 -

1

1-1/2"

12HF10-S 1-1/4" - 11 1/2 NPTF 303 stainless

1338.98

4.81 122.2 3.00 76.2 2-5/8" 4.68 -

1

1-1/2"

12HOF10 1-5/8" - 12 ORB

steel

517.07

4.81 122.2 3.00 76.2 2-5/8" 4.72 -

1

1-1/2"

12HF12 1-1/2" - 11 1/2 NPTF

steel

434.84

4.81 122.2 3.00 76.2 2-5/8" 4.70 -

1

1-1/2"

12HF12-B 1-1/2" - 11 1/2 NPTF brass

438.94

4.81 122.2 3.00 76.2 2-5/8" 4.58 -

1

1-1/2"

12HF12-S 1-1/2" - 11 1/2 NPTF 303 stainless

1216.20

4.81 122.2 3.00 76.2 2-5/8" 4.68 -

1

1-1/2"

12HF12-SS 1-1/2" - 11 1/2 NPTF 316 stainless

2647.44

4.81 122.2 3.00 76.2 2-5/8" 4.68 -

1

1-1/2"

12HBF12 1-1/2" - 11 BSPP

steel

422.17

4.81 122.2 3.00 76.2 2-5/8" 4.70 -

1

1-1/2"

12HBF12-B 1-1/2" - 11 BSPP

brass

529.98

4.81 122.2 3.00 76.2 2-5/8" 4.58 -

1

1-1/2"

12HBF12-S 1-1/2" - 11 BSPP 303 stainless

1338.98

4.81 122.2 3.00 76.2 2-5/8" 4.68 -

1

1-1/2"

12HBF12-SS 1-1/2" - 11 BSPP 316 stainless

2647.45

4.81 122.2 3.00 76.2 2-5/8" 4.68 -

1

1-1/2"

12HOF12 1-7/8" - 12 ORB

steel

517.07

4.81 122.2 3.00 76.2 2-5/8" 4.72 -

1

2-1/2"

20HF16

2" - 11 1/2 NPTF

steel

1162.51

5.57 141.5 4.10 104.1 3-3/4" 11.03 -

1

2-1/2"

20HF16-B 2" - 11 1/2 NPTF

brass

1064.66

5.57 141.5 4.10 104.1 3-3/4" 11.09 -

1

2-1/2"

20HF20

2-1/2" - 8 NPTF

steel

1156.51

6.04 153.4 4.10 104.1 3-3/4" 11.13 -

1

2-1/2"

20HF24

3" - 8 NPTF

steel

1213.41

6.96 176.8 4.35 110.5 4" 11.51 -

1
