158

DQC116

877.963.4966 •

dixonvalve.com

Body

Size

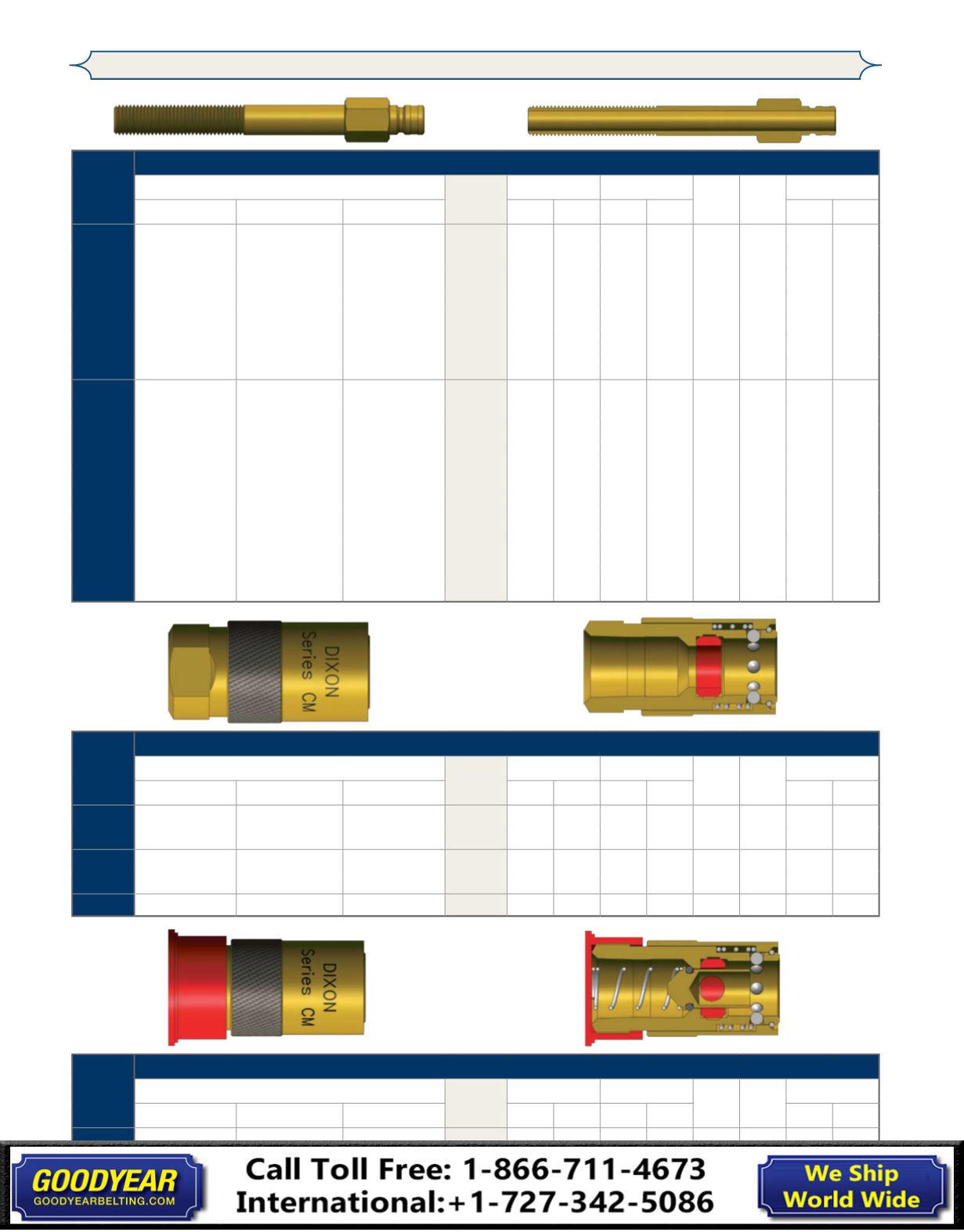

CM-Series Industrial Mold Interchange Extension Nipple (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

CM2M1-B-L2.5 1/8" - 27 NPTF brass

$9.70

2.50 63.5 0.51 13.0 7/16" 0.06 10 50

1/4"

CM2M1-B-L4 1/8" - 27 NPTF brass

11.46

4.00 101.6 0.51 13.0 7/16" 0.10 10 50

1/4"

CM2M1-B-L5.5 1/8" - 27 NPTF brass

15.58

5.50 139.7 0.51 13.0 7/16" 0.13 10 50

1/4"

CM2M2-B-L2.5 1/4" - 18 NPTF brass

10.62

2.50 63.5 0.65 16.5 9/16" 0.09 10 50

1/4"

CM2M2-B-L4 1/4" - 18 NPTF brass

12.55

4.00 101.6 0.65 16.5 9/16" 0.15 10 50

1/4"

CM2M2-B-L5.5 1/4" - 18 NPTF brass

16.63

5.50 139.7 0.65 16.5 9/16" 0.22 10 50

1/4"

CM2M2-B-L7 1/4" - 18 NPTF brass

19.71

7.00 177.8 0.65 16.5 9/16" 0.27 10 50

3/8"

CM3M1-B-L2.5 1/8" - 27 NPTF brass

10.62

2.50 63.5 0.65 16.5 9/16" 0.07 5 25

3/8"

CM3M1-B-L4 1/8" - 27 NPTF brass

12.55

4.00 101.6 0.65 16.5 9/16" 0.11 5 25

3/8"

CM3M1-B-L5.5 1/8" - 27 NPTF brass

17.66

5.50 139.7 0.65 16.5 9/16" 0.15 5 25

3/8"

CM3M1-B-L7 1/8" - 27 NPTF brass

19.71

7.00 177.8 0.65 16.5 9/16" 0.18 5 25

3/8"

CM3M2-B-L2.5 1/4" - 18 NPTF brass

10.62

2.50 63.5 0.65 16.5 9/16" 0.09 5 25

3/8"

CM3M2-B-L4 1/4" - 18 NPTF brass

12.55

4.00 101.6 0.65 16.5 9/16" 0.15 5 25

3/8"

CM3M2-B-L5.5 1/4" - 18 NPTF brass

16.63

5.50 139.7 0.65 16.5 9/16" 0.21 5 25

3/8"

CM3M2-B-L7 1/4" - 18 NPTF brass

19.71

7.00 177.8 0.65 16.5 9/16" 0.27 5 25

3/8"

CM3M2-B-L8.5 1/4" - 18 NPTF brass

22.23

8.50 215.9 0.65 16.5 9/16" 0.33 5 25

3/8"

CM3M2-B-L11.5 1/4" - 18 NPTF brass

26.09

11.50 292.1 0.65 16.5 9/16" 0.45 5 25

CM-Series Hydraulic Couplings

Body

Size

CM-Series Industrial Mold Interchange Unvalved Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2CMF1-B-E 1/8" - 27 NPTF brass

$8.77

1.35 34.3 0.69 17.5 9/16" 0.07 10 100

1/4"

2CMF2-B-E 1/4" - 18 NPTF brass

9.03

1.35 34.3 0.79 20.1 11/16" 0.08 10 100

3/8"

3CMF2-B-E 1/4" - 18 NPTF brass

10.88

1.84 46.7 0.95 24.1 3/4" 0.21 10 50

3/8"

3CMF3-B-E 3/8" - 18 NPTF brass

11.37

1.84 46.7 1.01 25.7 7/8" 0.23 10 50

1/2"

4CMF4-B-E 1/2" - 14 NPTF brass

25.59

2.02 51.3 1.24 31.5 1-1/8" 0.34 5 30

Body

Size

CM-Series Industrial Mold Interchange Valved Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2CMF1-B 1/8" - 27 NPTF brass

$9.89

1.35 34.3 0.69 17.5 9/16" 0.07 10 100

3/8"

3CMF2-B 1/4" - 18 NPTF brass

14.38

1.84 46.7 0.95 24.1 3/4" 0.21 10 50
