157

DQC116

877.963.4966 •

dixonvalve.com

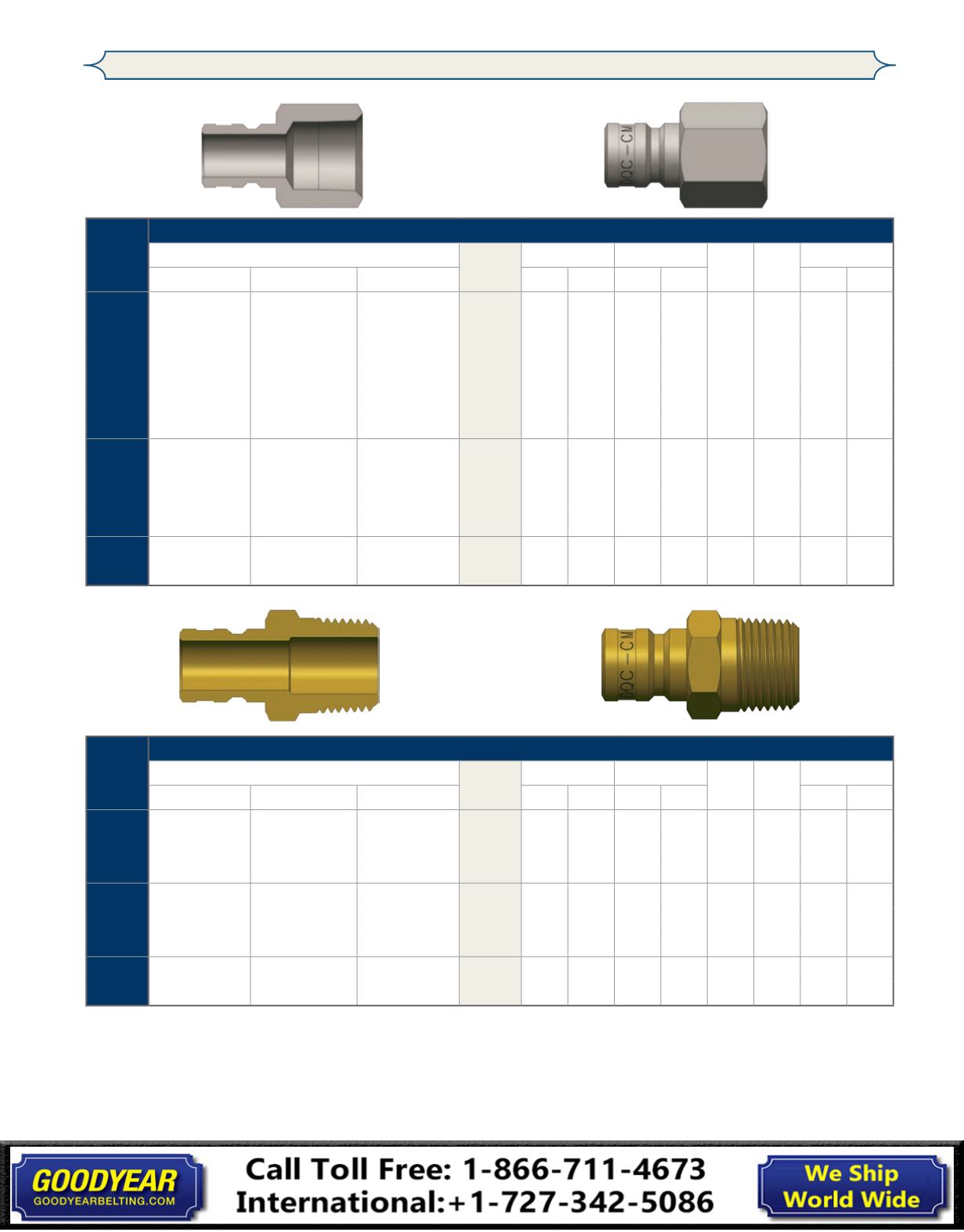

CM-Series Hydraulic Couplings

Body

Size

CM-Series Industrial Mold Interchange Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

CM2F1 1/8" - 27 NPTF steel

$1.96

0.90 22.9 0.58 14.7 1/2" 0.02 10 100

1/4"

CM2F1-B 1/8" - 27 NPTF brass

2.08

0.90 22.9 0.58 14.7 1/2" 0.02 10 100

1/4"

CM2F2 1/4" - 18 NPTF steel

2.07

1.12 28.4 0.72 18.3 5/8" 0.04 10 100

1/4"

CM2F2-B 1/4" - 18 NPTF brass

2.22

1.12 28.4 0.72 18.3 5/8" 0.05 10 100

1/4"

CM2F3 3/8" - 18 NPTF steel

2.59

1.21 30.7 0.87 22.1 3/4" 0.08 10 100

1/4"

CM2F3-B 3/8" - 18 NPTF brass

3.05

1.21 30.7 0.87 22.1 3/4" 0.08 10 100

3/8"

CM3F2 1/4" - 18 NPTF steel

2.61

1.34 34.0 0.72 18.3 5/8" 0.05 10 50

3/8"

CM3F2-B 1/4" - 18 NPTF brass

2.67

1.34 34.0 0.72 18.3 5/8" 0.05 10 50

3/8"

CM3F3 3/8" - 18 NPTF steel

3.38

1.34 34.0 0.87 22.1 3/4" 0.06 10 50

3/8"

CM3F3-B 3/8" - 18 NPTF brass

3.97

1.34 34.0 0.87 22.1 3/4" 0.07 10 50

1/2"

CM4F4-B 1/2" - 14 NPTF brass

7.64

1.69 42.9 1.16 29.5 1"

0.09 5 30

1/2"

CM4F6-B 3/4" - 14 NPTF brass

10.73

1.69 42.9 1.37 34.8 1-3/16" 0.10 5 30

Body

Size

CM-Series Industrial Mold Interchange Nipple (Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

CM2M1-B 1/8" - 27 NPTF brass

$1.57

1.00 25.4 0.65 16.5 9/16" 0.02 10 100

1/4"

CM2M2-B 1/4" - 18 NPTF brass

1.96

1.15 29.2 0.65 16.5 9/16" 0.03 10 100

1/4"

CM2M3-B 3/8" - 18 NPTF brass

2.34

1.21 30.7 0.79 20.1 11/16" 0.05 10 100

3/8"

CM3M2-B 1/4" - 18 NPTF brass

2.15

1.37 34.8 0.65 16.5 9/16" 0.04 10 50

3/8"

CM3M3-B 3/8" - 18 NPTF brass

2.34

1.43 36.3 0.79 20.1 11/16" 0.00 10 50

3/8"

CM3M4-B 1/2" - 14 NPTF brass

3.93

1.58 40.1 1.01 25.7 7/8" 0.07 10 50

1/2"

CM4M4-B 1/2" - 14 NPTF brass

4.56

1.69 42.9 1.01 25.7 7/8" 0.10 5 30

1/2"

CM4M6-B 3/4" - 14 NPTF brass

6.95

1.79 45.5 1.23 31.2 1-1/16" 0.11 5 30
