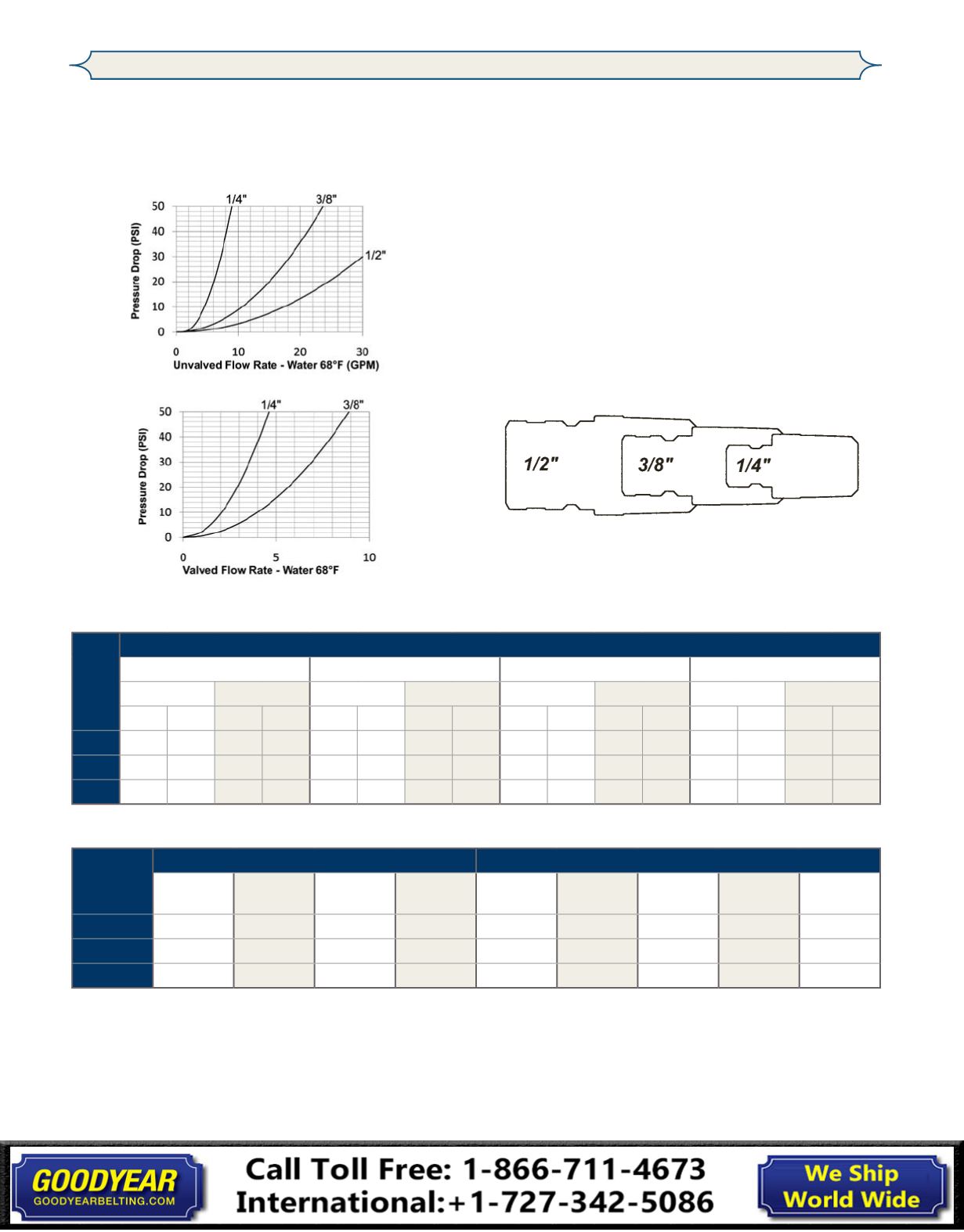

Page Background

156

DQC116

877.963.4966 •

dixonvalve.com

CM-Series Hydraulic Couplings

Interchange Data:

Mold Coolant Interchange

Foster Series-FJT, Hansen Flo-Temp, Tomco MC-Series

Parker Moldmate, DME Jiffy-Tite

Materials:

Machined components are manufactured using solid steel

or brass bar stock.

Stainless steel balls, retaining rings, and springs maximize

corrosion resistance and extend service life.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

Silicon gaskets and valve O-rings are standard, providing a

temperature range of

-90°F

to

+400°F

(

-68°C

to

+205°C

).

Seal Components:

Body

Size

CM-Series Industrial Mold Interchange (Connected)

Unvalved Coupler/Brass Plug Unvalved Coupler/Steel Plug Valved Coupler/Brass Plug Valved Coupler/Steel Plug

Max. Working Burst

Max. Working Burst

Max. Working Burst

Max. Working Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

1/4"

300 20 10,000 700 500 35 10,700 750 300 20 6,000 400 300 20 6,100 400

3/8"

300 20 14,500 1,000 500 35 14,200 1,000 300 20 6,700 450 300 20 6,100 400

1/2"

300 20 4,900 340 -

-

-

-

-

-

-

-

-

-

-

-

Rated Pressure Chart:

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking Ball

Quantity

Air

Inclusion

Fluid

Loss

Vacuum

Inch HG

Flow

ΔP = 7 PSI

1/4"

-

-

-

-

6

N/A

N/A

N/R 3 GPM

3/8"

-

-

-

-

8

N/A

N/A

N/R 9 GPM

1/2"

-

-

-

-

8

N/A

N/A

N/R 15 GPM

Technical Specifications:

CM Series Profiles
