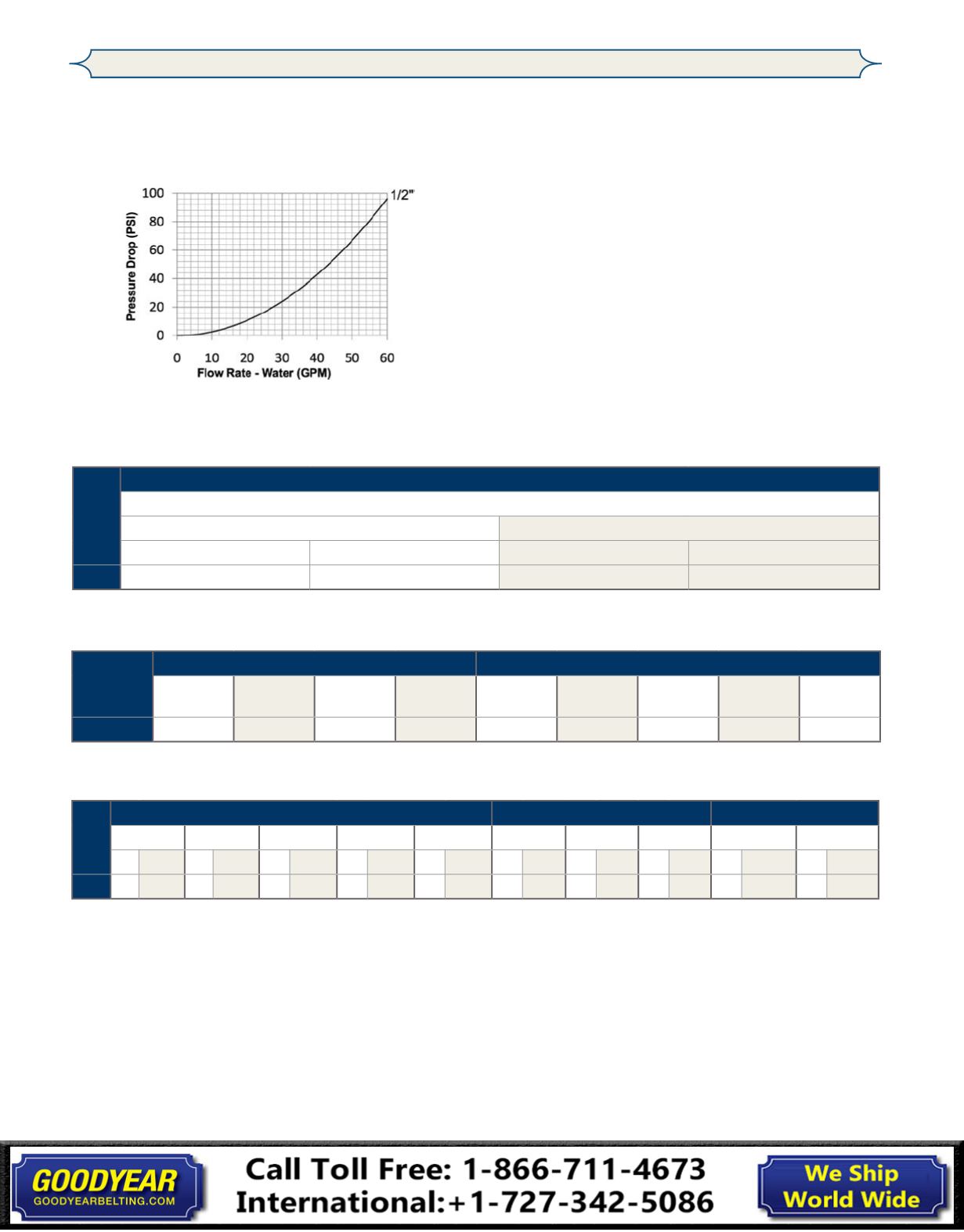

154

DQC116

877.963.4966 •

dixonvalve.com

EA-Series Hydraulic Couplings

Interchange Data:

Water-Blast Interchange

Parker Series-WB, Aeroquip FD69, Snap-Tite 56-Series

Materials:

Machined components are manufactured using solid high

strength steel bar stock.

Stainless steel springs and retaining rings maximize

corrosion resistance and extend service life.

Latches are manufactured from high-strength steel and

plated with electroless nickel.

Steel nipples are machined from solid high strength steel

bar stock and hardened.

Machined steel componentry is plated using ROHS

Compliant Trivalent Chrome.

Nitrile (Buna-N) seals are standard, providing a temperature

range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Couplers have a PTFE Anti-Extrusion ring, providing

resistance to O-ring dynamic impulse pressure damage.

Seal Components:

Rated Pressure Chart:

Body

Size

EA-Series Water-Blast Interchange (Connected)

Coupler/Plug

Maximum Working

Burst

PSI

Bar

PSI

Bar

1/2"

10,000

700

30,000

2,100

Body

Size

Interchange Standards

Functional Parameters

U.S.

Military

U.S.

Government

International

Standards

ANSI/NFPA

Standards

Locking

Mechanism

Air

Inclusion

Fluid

Loss

Vacuum

Inch HG

Flow

ΔP = 40 PSI

1/2"

-

-

-

-

Maxi-Latch N/A

N/A

N/R 40 GPM

Technical Specifications:

Body

Size

Standard Seal Options

Kalrez

®

Seal Options

Other Options

FKM EPDM FDA FKM Mil-Nitrile Silicone 4079

6375

7075 No Pin-Lock Oxy-Clean

Pre Add $ Pre Add $ Pre Add $ Pre Add $ Pre Add $ Pre Add $ Pre Add $ Pre Add $ Suf Add $ Suf Add $

1/2"

F-

$0.00

P-

$4.00

D-

$5.20

M-

$3.60

S-

$4.50

K4-

POR

K6-

POR

K7-

POR

-NL

-$5.20

-C1

$12.00

List Price Option Adders:
