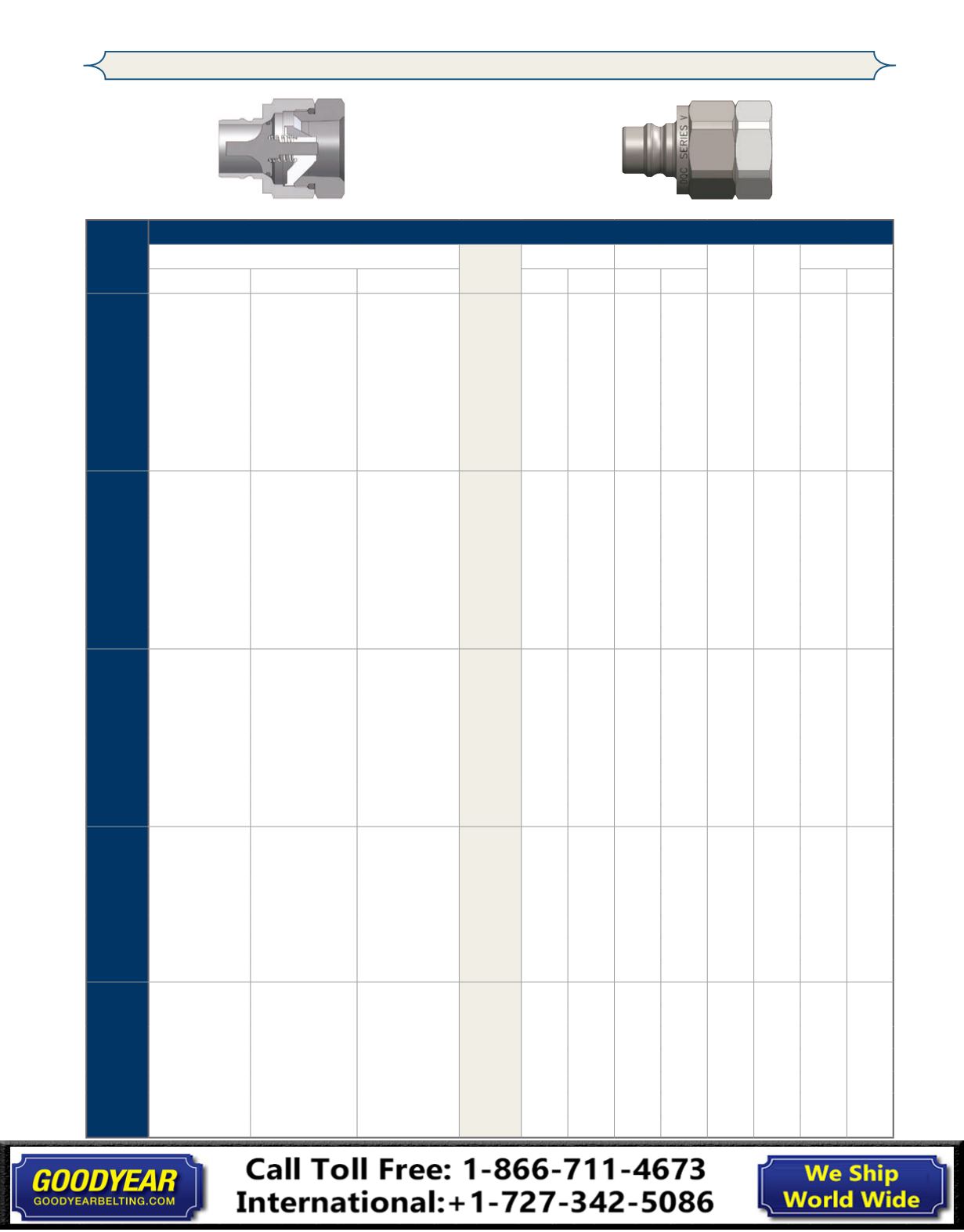

V-Series Hydraulic Couplings

Body

Size

V-Series Snap-Tite H/IH Interchange Valved Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

V2F1

1/8" - 27 NPTF

steel

$18.08

1.62 41.1 0.97 24.6 7/8" 0.17 5 50

1/4"

V2F2

1/4" - 18 NPTF

steel

16.72

1.62 41.1 0.97 24.6 7/8" 0.14 5 50

1/4"

V2F2-B 1/4" - 18 NPTF

brass

21.77

1.62 41.1 0.97 24.6 7/8" 0.14 5 50

1/4"

V2F2-SS 1/4" - 18 NPTF 316 stainless

72.77

1.62 41.1 0.97 24.6 7/8" 0.15 5 50

1/4"

V2BF2

1/4" - 19 BSPP

steel

16.72

1.75 44.5 0.97 24.6 7/8" 0.14 5 50

1/4"

V2BF2-B 1/4" - 19 BSPP

brass

21.77

1.75 44.5 0.97 24.6 7/8" 0.14 5 50

1/4"

V2BF2-SS 1/4" - 19 BSPP 316 stainless

72.77

1.75 44.5 0.97 24.6 7/8" 0.14 5 50

1/4"

V2OF2 7/16" - 20 ORB

steel

18.78

1.75 44.5 0.97 24.6 7/8" 0.16 5 50

3/8"

V3F3

3/8" - 18 NPTF

steel

20.85

1.87 47.5 1.10 27.9 1"

0.23 5 50

3/8"

V3F3-B 3/8" - 18 NPTF

brass

30.55

1.87 47.5 1.10 27.9 1"

0.23 5 50

3/8"

V3F3-SS 3/8" - 18 NPTF 316 stainless

106.93

1.87 47.5 1.10 27.9 1"

0.23 5 50

3/8"

V3BF3

3/8" - 19 BSPP

steel

20.84

1.94 49.3 1.10 27.9 1"

0.23 5 50

3/8"

V3BF3-B 3/8" - 19 BSPP

brass

30.55

1.94 49.3 1.10 27.9 1"

0.23 5 50

3/8"

V3BF3-SS 3/8" - 19 BSPP 316 stainless

106.93

1.94 49.3 1.10 27.9 1"

0.23 5 50

3/8"

V3OF3 9/16" - 18 ORB

steel

23.53

1.94 49.3 1.10 27.9 1"

0.25 5 50

3/8"

V3F4

1/2" - 14 NPTF

steel

29.57

1.94 49.3 1.10 27.9 1"

0.27 5 50

1/2"

V4F4

1/2" - 14 NPTF

steel

24.91

1.99 50.5 1.31 33.3 1-3/16" 0.30 5 25

1/2"

V4F4-B 1/2" - 14 NPTF

brass

40.62

1.99 50.5 1.31 33.3 1-3/16" 0.30 5 25

1/2"

V4F4-SS 1/2" - 14 NPTF 316 stainless

147.03

1.99 50.5 1.31 33.3 1-3/16" 0.30 5 25

1/2"

V4BF4

1/2" - 14 BSPP

steel

24.92

1.99 50.5 1.31 33.3 1-3/16" 0.30 5 25

1/2"

V4BF4-B 1/2" - 14 BSPP

brass

40.62

1.99 50.5 1.31 33.3 1-3/16" 0.30 5 25

1/2"

V4BF4-SS 1/2" - 14 BSPP 316 stainless

147.03

1.99 50.5 1.31 33.3 1-3/16" 0.30 5 25

1/2"

V4OF4

3/4" - 16 ORB

steel

27.97

1.99 50.5 1.31 33.3 1-3/16" 0.33 5 25

1/2"

V4F6

3/4" - 14 NPTF

steel

41.40

1.99 50.5 1.31 33.3 1-3/16" 0.38 5 25

3/4"

V6F6

3/4" - 14 NPTF

steel

37.36

2.31 58.7 1.65 41.9 1-1/2" 0.60 5 20

3/4"

V6F6-B 3/4" - 14 NPTF

brass

52.54

2.31 58.7 1.65 41.9 1-1/2" 0.60 5 20

3/4"

V6F6-SS 3/4" - 14 NPTF 316 stainless

202.48

2.31 58.7 1.65 41.9 1-1/2" 0.59 5 20

3/4"

V6BF6

3/4" - 14 BSPP

steel

37.36

2.80 71.1 1.65 41.9 1-1/2" 0.60 5 20

3/4"

V6BF6-B 3/4" - 14 BSPP

brass

52.54

2.80 71.1 1.65 41.9 1-1/2" 0.60 5 20

3/4"

V6BF6-SS 3/4" - 14 BSPP 316 stainless

202.48

2.80 71.1 1.65 41.9 1-1/2" 0.61 5 20

3/4"

V6OF6 1-1/16" - 12 ORB steel

47.75

2.80 71.1 1.65 41.9 1-1/2" 0.66 5 20

1"

V8F8

1" - 11 1/2 NPTF

steel

59.70

2.60 66.0 2.06 52.3 1-7/8" 0.93 -

10

1"

V8F8-B 1" - 11 1/2 NPTF

brass

101.47

2.60 66.0 2.06 52.3 1-7/8" 0.93 -

10

1"

V8F8-SS 1" - 11 1/2 NPTF 316 stainless

330.38

2.60 66.0 2.06 52.3 1-7/8" 0.94 -

10

1"

V8BF8

1" - 11 BSPP

steel

59.70

2.87 72.9 2.06 52.3 1-7/8" 0.93 -

10

1"

V8BF8-B 1" - 11 BSPP

brass

101.46

2.87 72.9 2.06 52.3 1-7/8" 0.94 -

10

1"

V8BF8-SS 1" - 11 BSPP 316 stainless

330.38

2.87 72.9 2.06 52.3 1-7/8" 0.93 -

10

1"

V8OF8 1-5/16" - 12 ORB steel

70.67

2.857 72.6 2.06 52.3 1-7/8" 0.98 -

10
