92

DQC116

877.963.4966 •

dixonvalve.com

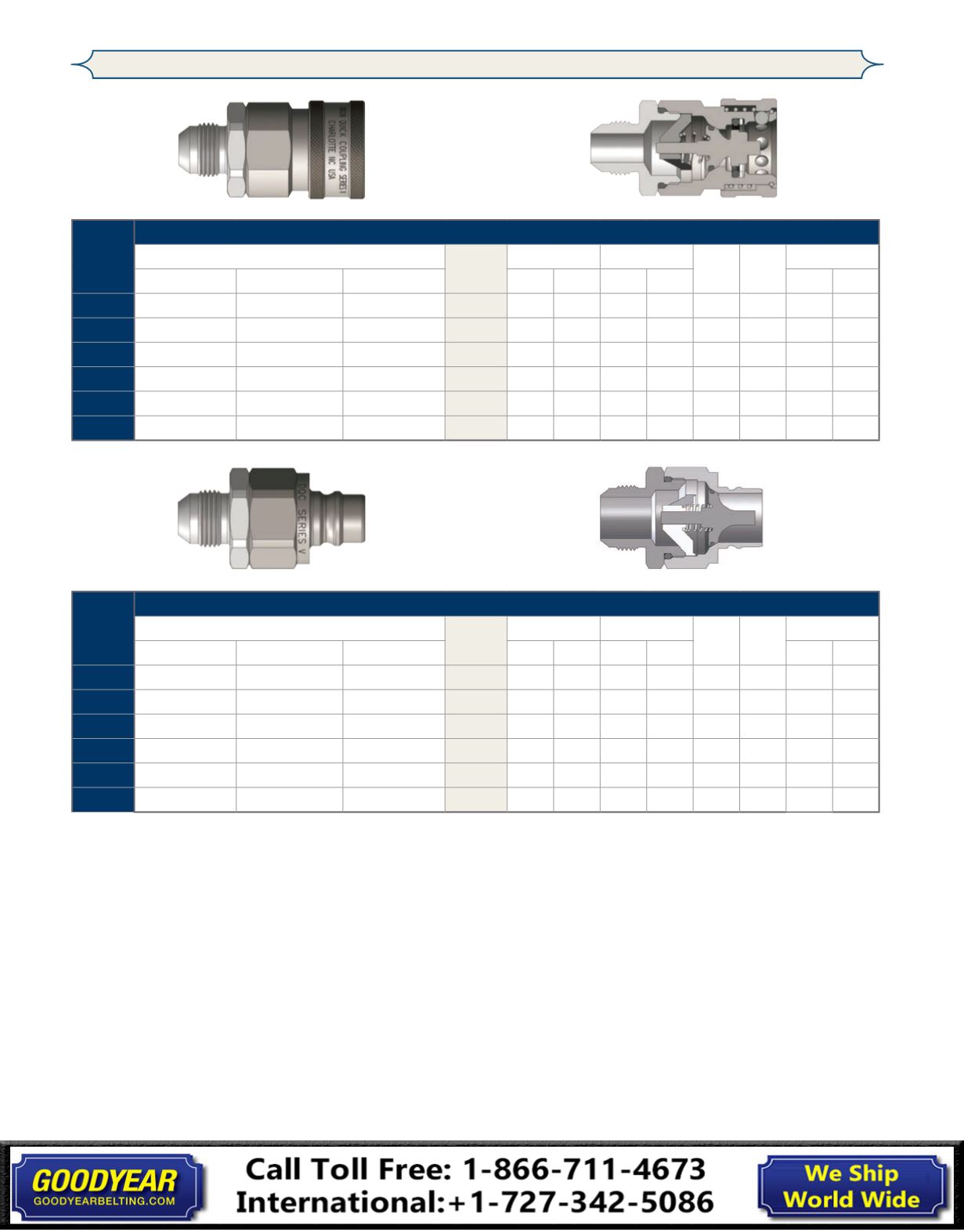

V-Series Hydraulic Couplings

Body

Size

V-Series Snap-Tite H/IH Interchange Valved Coupler (JIC Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2VJM2 7/16" - 20 JIC steel

$26.79

2.12 53.8 0.99 25.1 7/8" 0.25 5 50

3/8"

3VJM3 9/16" - 18 JIC steel

41.10

2.32 58.9 1.18 30.0 1"

0.30 5 50

1/2"

4VJM4

3/4" - 16 JIC steel

50.14

2.54 64.5 1.36 34.5 1-3/16" 0.51 5 25

3/4"

6VJM6 1-1/16" - 12 JIC steel

72.14

3.07 78.0 1.67 42.4 1-1/2" 0.98 5 20

1"

8VJM8 1-5/16" - 12 JIC steel

120.90

3.32 84.3 2.06 52.3 1-7/8" 1.49 -

10

1-1/4"

10VJM10 1-5/8" - 12 JIC steel

281.24

3.59 91.2 2.19 55.6 2"

1.98 -

10

Body

Size

V-Series Snap-Tite H/IH Interchange Valved Nipple (JIC Male Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

V2JM2 7/16" - 20 JIC steel

$22.53

2.06 52.3 0.97 24.6 7/8" 0.18 5 50

3/8"

V3JM3 9/16" - 18 JIC steel

28.99

2.25 57.2 1.1 27.9 1"

0.25 5 50

1/2"

V4JM4

3/4" - 16 JIC steel

34.63

2.40 61.0 1.31 33.3 1-3/16" 0.38 5 25

3/4"

V6JM6 1-1/16" - 12 JIC steel

46.92

2.91 73.9 1.65 41.9 1-1/2" 0.72 5 20

1"

V8JM8 1-5/16" - 12 JIC steel

89.03

3.22 81.8 2.06 52.3 1-7/8" 1.36 -

10

1-1/4"

V10JM10 1-5/8" - 12 JIC steel

266.24

3.46 87.9 2.19 55.6 2"

1.46 -

10
