86

DQC116

877.963.4966 •

dixonvalve.com

V-Series Hydraulic Couplings

Body

Size

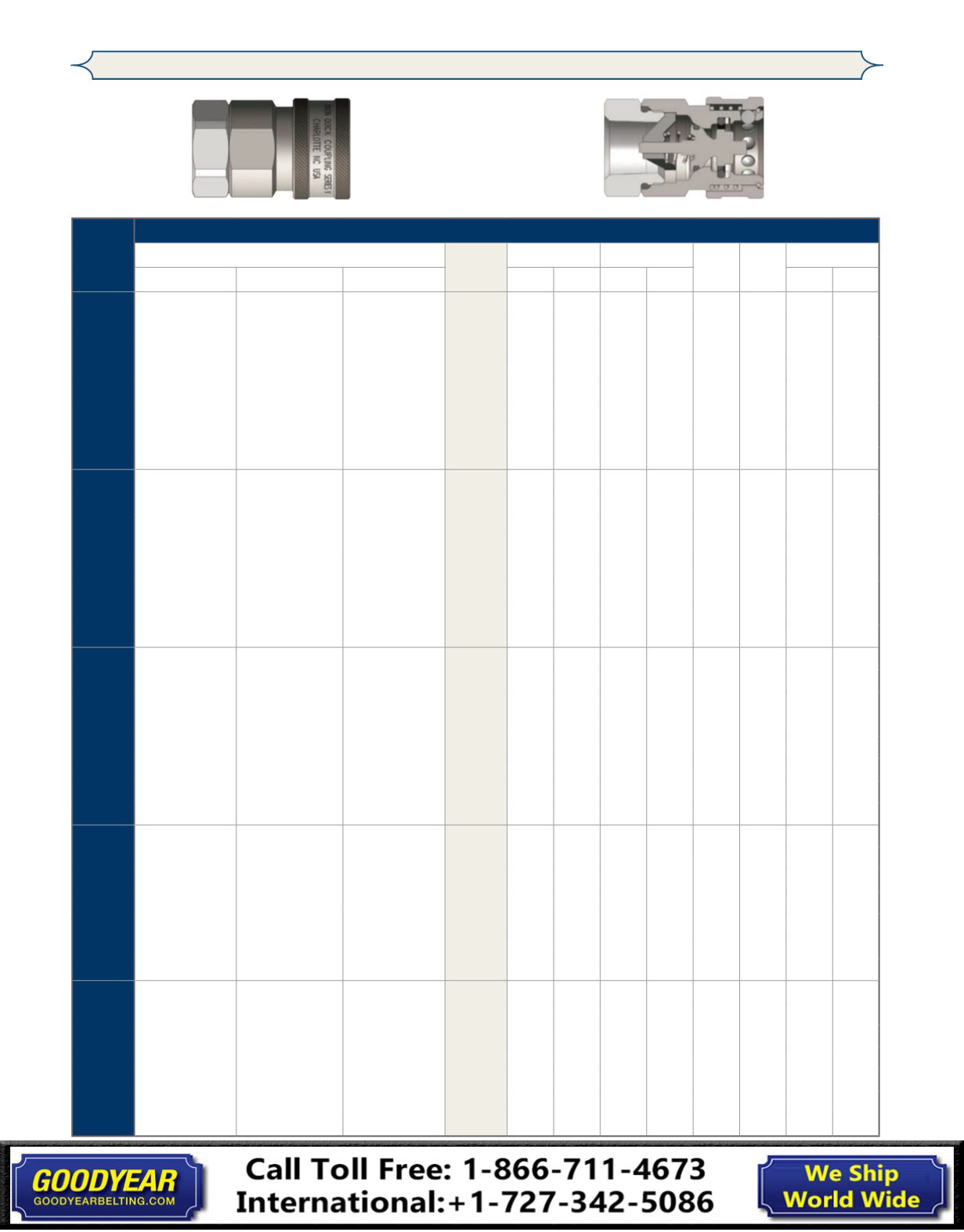

V-Series Snap-Tite H/IH Interchange Valved Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2VF1

1/8" - 27 NPTF

steel

$25.60

1.68 42.7 0.99 25.1 7/8" 0.22 5 50

1/4"

2VF2

1/4" - 18 NPTF

steel

24.39

1.68 42.7 0.99 25.1 7/8" 0.20 5 50

1/4"

2VF2-B 1/4" - 18 NPTF

brass

30.55

1.68 42.7 0.99 25.1 7/8" 0.20 5 50

1/4"

2VF2-SS 1/4" - 18 NPTF 316 stainless

104.32

1.68 42.7 0.99 25.1 7/8" 0.20 5 50

1/4"

2VBF2

1/4" - 19 BSPP

steel

24.39

1.81 46.0 0.99 25.1 7/8" 0.20 5 50

1/4"

2VBF2-B 1/4" - 19 BSPP

brass

30.55

1.81 46.0 0.99 25.1 7/8" 0.20 5 50

1/4"

2VBF2-SS 1/4" - 19 BSPP 316 stainless

104.32

1.81 46.0 0.99 25.1 7/8" 0.20 5 50

1/4"

2VOF2 7/16" - 20 ORB

steel

25.41

1.81 46.0 0.99 25.1 7/8" 0.23 5 50

3/8"

3VF3

3/8" - 18 NPTF

steel

33.27

1.94 49.3 1.18 30.0 1"

0.37 5 50

3/8"

3VF3-B 3/8" - 18 NPTF

brass

39.72

1.94 49.3 1.18 30.0 1"

0.37 5 50

3/8"

3VF3-SS 3/8" - 18 NPTF 316 stainless

149.79

1.94 49.3 1.18 30.0 1"

0.38 5 50

3/8"

3VBF3

3/8" - 19 BSPP

steel

33.27

2.01 51.1 1.18 30.0 1"

0.37 5 50

3/8"

3VBF3-B 3/8" - 19 BSPP

brass

39.73

2.01 51.1 1.18 30.0 1"

0.37 5 50

3/8"

3VBF3-SS 3/8" - 19 BSPP 316 stainless

149.79

2.01 51.1 1.18 30.0 1"

0.38 5 50

3/8"

3VOF3 9/16" - 18 ORB

steel

35.97

2.01 51.1 1.18 30.0 1"

0.40 5 50

3/8"

3VF4

1/2" - 14 NPTF

steel

42.75

2.01 51.1 1.18 30.0 1"

0.49 5 50

1/2"

4VF4

1/2" - 14 NPTF

steel

40.44

2.13 54.1 1.36 34.5 1-3/16" 0.49 5 25

1/2"

4VF4-B 1/2" - 14 NPTF

brass

58.18

2.13 54.1 1.36 34.5 1-3/16" 0.49 5 25

1/2"

4VF4-SS 1/2" - 14 NPTF 316 stainless

206.42

2.13 54.1 1.36 34.5 1-3/16" 0.52 5 25

1/2"

4VBF4

1/2" - 14 BSPP

steel

40.44

2.13 54.1 1.36 34.5 1-3/16" 0.49 5 25

1/2"

4VBF4-B 1/2" - 14 BSPP

brass

58.20

2.13 54.1 1.36 34.5 1-3/16" 0.49 5 25

1/2"

4VBF4-SS 1/2" - 14 BSPP 316 stainless

206.42

2.13 54.1 1.36 34.5 1-3/16" 0.52 5 25

1/2"

4VOF4

3/4" - 16 ORB

steel

43.51

2.13 54.1 1.36 34.5 1-3/16" 0.54 5 25

1/2"

4VF6

3/4" - 14 NPTF

steel

48.41

2.13 54.1 1.36 34.5 1-3/16" 0.58 5 25

3/4"

6VF6

3/4" - 14 NPTF

steel

62.58

2.47 62.7 1.67 42.4 1-1/2" 0.88 5 20

3/4"

6VF6-B 3/4" - 14 NPTF

brass

90.33

2.47 62.7 1.67 42.4 1-1/2" 0.88 5 20

3/4"

6VF6-SS 3/4" - 14 NPTF 316 stainless

295.52

2.47 62.7 1.67 42.4 1-1/2" 0.94 5 20

3/4"

6VBF6

3/4" - 14 BSPP

steel

62.58

2.96 75.2 1.67 42.4 1-1/2" 0.88 5 20

3/4"

6VBF6-B 3/4" - 14 BSPP

brass

90.33

2.96 75.2 1.67 42.4 1-1/2" 0.88 5 20

3/4"

6VBF6-SS 3/4" - 14 BSPP 316 stainless

295.52

2.96 75.2 1.67 42.4 1-1/2" 0.94 5 20

3/4"

6VOF6 1-1/16" - 12 ORB steel

73.01

2.96 75.2 1.67 42.4 1-1/2" 0.99 5 20

1"

8VF8

1" - 11 1/2 NPTF

steel

97.23

2.70 68.6 2.06 52.3 1-7/8" 1.33 -

10

1"

8VF8-B 1" - 11 1/2 NPTF

brass

140.99

2.70 68.6 2.06 52.3 1-7/8" 1.33 -

10

1"

8VF8-SS 1" - 11 1/2 NPTF 316 stainless

455.47

2.70 68.6 2.06 52.3 1-7/8" 1.33 -

10

1"

8VBF8

1" - 11 BSPP

steel

97.12

2.97 75.4 2.06 52.3 1-7/8" 1.33 -

10

1"

8VBF8-B 1" - 11 BSPP

brass

140.99

2.97 75.4 2.06 52.3 1-7/8" 1.33 -

10

1"

8VBF8-SS 1" - 11 BSPP 316 stainless

455.47

2.97 75.4 2.06 52.3 1-7/8" 1.33 -

10

1"

8VOF8 1-5/16" - 12 ORB steel

115.12

2.97 75.4 2.06 52.3 1-7/8" 1.42 -

10
