83

DQC116

877.963.4966 •

dixonvalve.com

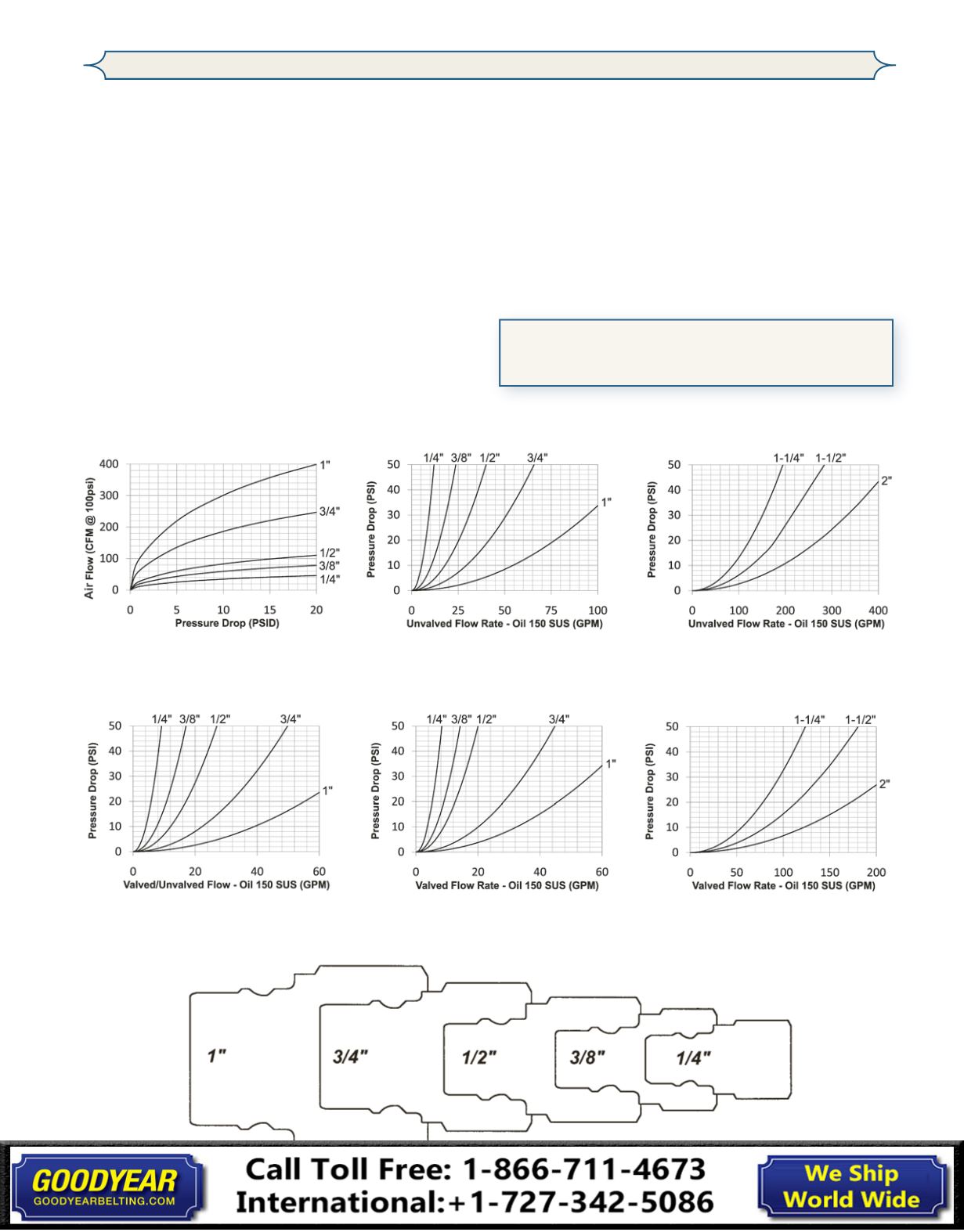

V-Series Hydraulic Couplings

Interchange Data:

Interchangeable to MIL-C-51234

Snap-Tite H/IH and Faster TNV/TNL

Materials:

Machined components are manufactured using solid steel,

brass, or 316 stainless steel bar stock.

Stainless steel balls, retaining rings, and springs maximize

corrosion resistance and extend service life.

Steel componentry is plated using ROHS Compliant

Trivalent Chrome.

Steel coupler sleeves are hardened to resist deformation

and maximize service life.

Steel nipples are machined from high-strength steel and

induction hardened.

Tubular 'TV' valves are constructed from steel bar stock

and are designed for optimum performance in pneumatic

applications.

Nitrile (Buna-N) seals are standard, providing a temperature

range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

All couplers incorporate a PTFE anti-extrusion ring to protect

the seal components from dynamic impulse damage.

¼" to 1" valve seals are crimped in place to maintain

integrity during excessive flow conditions and pressurized

connection.

1¼" to 2" valve O-rings are retained by a unique seal-groove

profile and are field replaceable.

Seal Components:

Note: Air flow data is presented using a coupler with a 'TV'

valve and unvalved nipple. This configuration provides the

optimal performance for pneumatic applications.

V Series Profiles
