DQC116

877.963.4966 •

dixonvalve.com

General Product Information

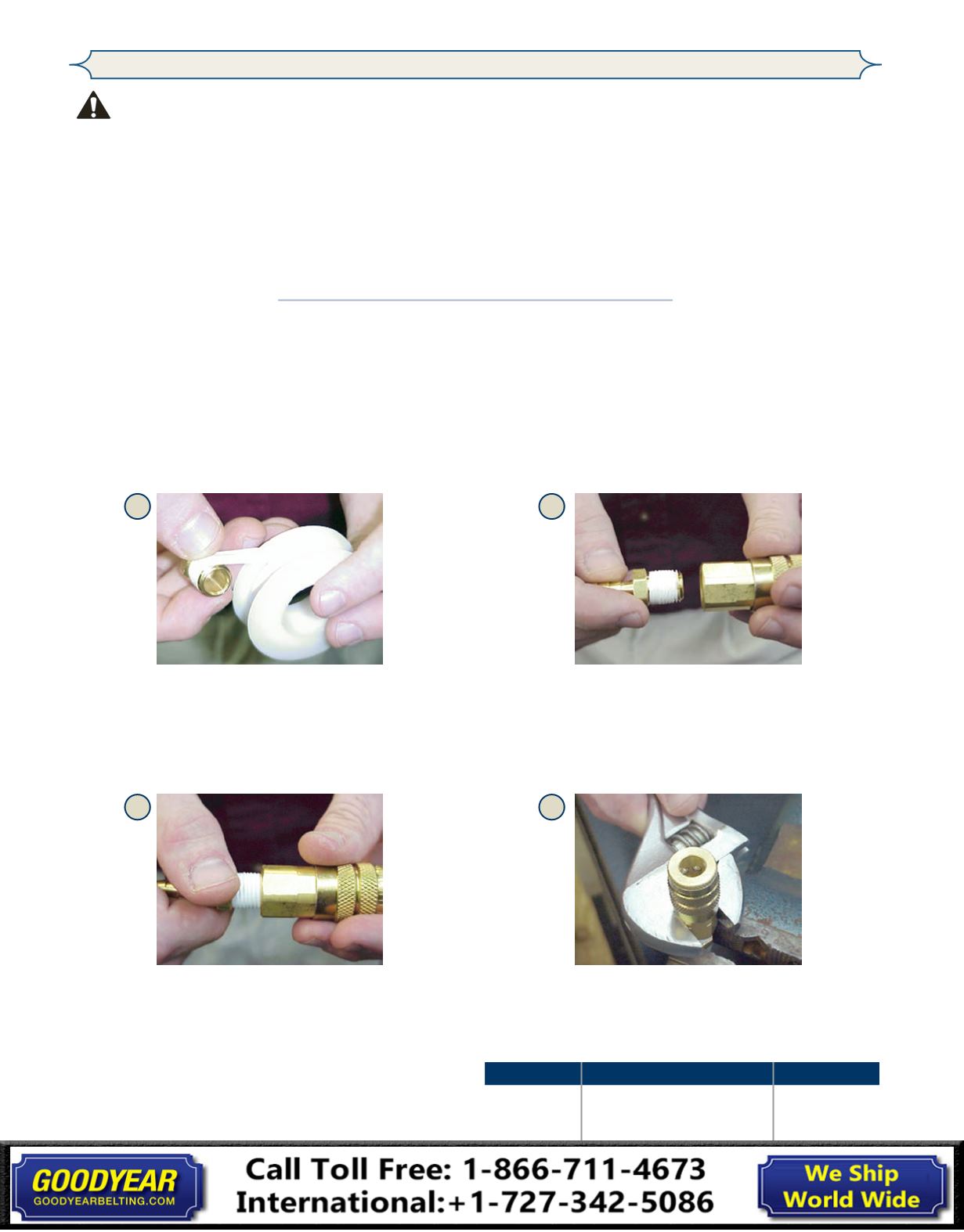

Installation of Tapered Thread Connections (NPTF)

Be Safe When Installing Quick Couplings!

All quick disconnect couplings should be viewed as potential hazards that can cause property damage, personal injury or

even death if used or installed improperly!

Couplings should be installed in a location that will allow easy operation of the coupling and accessibility for all necessary

installation tools. Care should be given to consider operator safety, especially if spillage upon disconnection could result in fluid

ignition or skin and eye irritation.

Only apply wrenches to the hex or machined wrench flats that are provided for assembly purposes, nowhere else. Never clamp

on the sleeve of the coupler or the nose of the nipple, this will cause distortion and/or damage.

Finally, always test quick coupling installations before putting into operation by pressurizing the unit to 150% of the working

pressure in an enclosed/protective environment.

The seal for NPTF threads is created by the metal-to-metal contact between the roots and crests of the male and female threads.

Too much PTFE tape, or pairing liquid sealant with PTFE tape may cause distortion, poor thread engagement, or cracking of the

coupling during assembly.

The total number of tapered threads engaged should be between 3½ to 6. Any number of threads outside this range may

indicate either under or over tightening of the joint or out of tolerance threads. After assembly of a NPTF thread connection,

always proof-test the connection before operating the system. If the joint proves to be inadequately tightened during

proof-pressure testing, tighten it further in 1/8 turn increments until a reliable seal is attained (do not exceed 3 T.F.F.T!)

Apply 1½ to 2 wraps of PTFE tape,

starting one or two threads from the

lead edge, in a clockwise direction.

For 316 stainless steel, be sure to

use stainless grade tape.

Check threads to make sure there

is no obvious damage on either

half and that tape is properly

installed. Align male and female

threaded connections and carefully

begin threading the two halves

together.

Finger tighten the connection and

create a reference mark on the

hex of the hose end/adapter and

the coupling. This mark will help

identify the number of revolutions

during the next step in the

procedure.

With even and smooth force

applied, wrench tighten according

to the 'Turns From Finger Tight'

(T.F.F.T.) values listed below.

DO NOT OVERTIGHTEN!

1

2

3

4

SAE Size

NPTF Thread Size

T.F.F.T

-4

-6

-8

-12

-16

1/4" - 18

3/8" - 18

1/2" - 14

3/4" - 14

1" - 11 1/2

2

2

2

1.5

1.5
