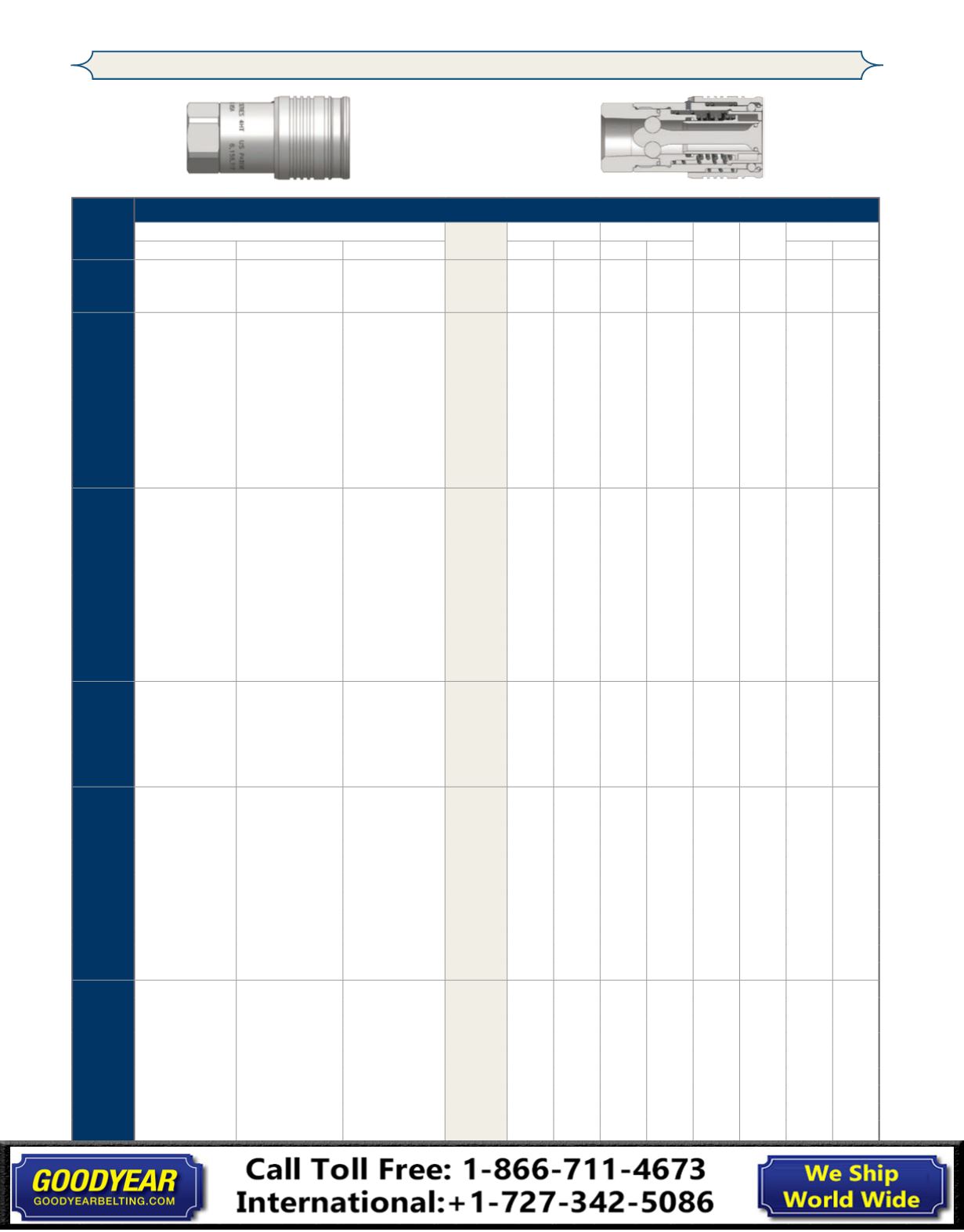

Page Background

104

DQC116

877.963.4966 •

dixonvalve.com

HT-Series Hydraulic Couplings

Body

Size

HT-Series ISO16028 Flushface Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

Inch

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

1/4"

2HTF2

1/4" - 18 NPTF

steel

$74.13

1.98 50.3 1.11 28.3 7/8" 0.23 -

25

1/4"

2HTBF2

1/4" - 19 BSPP

steel

74.13

1.98 50.3 1.11 28.3 7/8" 0.23 -

25

1/4"

2HTOF3 9/16" - 18 ORB

steel

77.84

1.98 50.3 1.11 28.3 7/8" 0.23 -

25

3/8"

3HTF3

3/8" - 18 NPTF

steel

76.45

2.50 63.5 1.24 31.5 1"

0.44 -

25

3/8"

3HTF3-SS 3/8" - 18 NPTF 316 stainless

318.81

2.50 63.5 1.24 31.5 1"

0.44 -

25

3/8"

3HTBF3

3/8" - 19 BSPP

steel

76.45

2.50 63.5 1.24 31.5 1"

0.44 -

25

3/8"

3HTBF3-SS 3/8" - 19 BSPP 316 stainless

318.81

2.50 63.5 1.24 31.5 1"

0.44 -

25

3/8"

3HTOF3 9/16" - 18 ORB

steel

76.45

2.50 63.5 1.24 31.5 1"

0.49 -

25

3/8"

3HTF4

1/2" - 14 NPTF

steel

76.45

2.72 69.1 1.24 31.5 1-1/8" 0.48 -

25

3/8"

3HTF4-SS 1/2" - 14 NPTF 316 stainless

318.81

2.72 69.1 1.24 31.5 1-1/8" 0.48 -

25

3/8"

3HTBF4

1/2" - 14 BSPP

steel

76.45

2.72 69.1 1.24 3.5 1-1/8" 0.48 -

25

3/8"

3HTBF4-SS 1/2" - 14 BSPP 316 stainless

318.81

2.72 69.1 1.24 31.5 1-1/8" 0.48 -

25

3/8"

3HTOF4

3/4" - 16 ORB

steel

76.45

2.72 69.1 1.24 31.5 1-1/8" 0.53 -

25

1/2"

4HTF4

1/2" - 14 NPTF

steel

92.66

3.02 76.7 1.54 39.1 1-3/16" 0.86 -

20

1/2"

4HTF4-SS 1/2" - 14 NPTF 316 stainless

360.92

3.02 76.7 1.54 39.1 1-3/16" 0.86 -

20

1/2"

4HTBF4

1/2" - 14 BSPP

steel

92.66

3.02 76.7 1.54 39.1 1-3/16" 0.86 -

20

1/2"

4HTBF4-SS 1/2" - 14 BSPP 316 stainless

360.92

3.02 76.7 1.54 39.1 1-3/16" 0.86 -

20

1/2"

4HTOF4

3/4" - 16 ORB

steel

98.46

3.02 76.7 1.54 39.1 1-3/16" 0.86 -

20

1/2"

4HTOF5

7/8" - 14 ORB

steel

98.46

3.12 79.2 1.54 39.1 1-5/16" 0.92 -

20

1/2"

4HTF6

3/4" - 14 NPTF

steel

98.46

3.22 81.8 1.54 39.1 1-5/16" 0.98 -

20

1/2"

4HTF6-SS 3/4" - 14 NPTF 316 stainless

384.98

3.22 81.8 1.54 39.1 1-5/16" 0.98 -

20

1/2"

4HTBF6

3/4" - 14 BSPP

steel

98.46

3.22 81.8 1.54 39.1 1-5/16" 0.98 -

20

1/2"

4HTBF6-SS 3/4" - 14 BSPP 316 stainless

384.98

3.22 81.8 1.54 39.1 1-5/16" 0.98 -

20

1/2"

4HTOF6 1-1/16" - 12 ORB

steel

98.46

3.42 86.9 1.54 39.1 1-5/16" 0.96 -

20

5/8"

5HTOF5

7/8" - 14 ORB

steel

139.00

3.32 84.3 1.67 42.4 1-1/2" 1.58 -

10

5/8"

5HTF6

3/4" - 14 NPTF

steel

133.20

3.32 84.3 1.67 42.4 1-1/2" 1.51 -

10

5/8"

5HTF6-SS 3/4" - 14 NPTF 316 stainless

505.28

3.32 84.3 1.67 42.4 1-1/2" 1.51 -

10

5/8"

5HTBF6

3/4" - 14 BSPP

steel

133.20

3.32 84.3 1.67 42.4 1-1/2" 1.51 -

10

5/8"

5HTBF6-SS 3/4" - 14 BSPP 316 stainless

505.28

3.32 84.3 1.67 42.4 1-1/2" 1.51 -

10

5/8"

5HTOF6 1-1/16" - 12 ORB

steel

139.00

3.32 84.3 1.67 42.4 1-1/2" 1.49 -

10

3/4"

6HTOF5

7/8" - 14 ORB

steel

202.42

3.70 94.0 1.85 47.0 1-1/2" 1.82 -

10

3/4"

6HTF6

3/4" - 14 NPTF

steel

208.49

3.70 94.0 1.85 47.0 1-1/2" 1.82 -

10

3/4"

6HTF6-SS 3/4" - 14 NPTF 316 stainless

661.68

3.70 94.0 1.85 47.0 1-1/2" 1.82 -

10

3/4"

6HTBF6

3/4" - 14 BSPP

steel

208.49

3.70 94.0 1.85 47.0 1-1/2" 1.82 -

10

3/4"

6HTBF6-SS 3/4" - 14 BSPP 316 stainless

661.68

3.70 94.0 1.85 47.0 1-1/2" 1.82 -

10

3/4"

6HTOF6 1-1/16" - 12 ORB

steel

208.49

3.70 94.0 1.85 47.0 1-1/2" 1.91 -

10

3/4"

6HTF8

1" - 11 1/2 NPTF

steel

208.49

3.82 97.0 1.92 48.8 1-3/4" 2.06 -

10

3/4"

6HTF8-SS 1" - 11 1/2 NPTF 316 stainless

661.68

3.82 97.0 1.92 48.8 1-3/4" 2.06 -

10

3/4"

6HTBF8

1" - 11 BSPP

steel

208.49

3.82 97.0 1.92 48.8 1-3/4" 2.06 -

10

3/4"

6HTBF8-SS 1" - 11 BSPP 316 stainless

661.68

3.82 97.0 1.92 48.8 1-3/4" 2.06 -

10

3/4"

6HTOF8 1-5/16" - 12 ORB

steel

208.49

3.82 97.0 1.92 48.8 1-3/4" 2.16 -

10

1"

8HTF8

1" - 11 1/2 NPTF

steel

289.57

4.24 107.7 2.29 58.2 1-3/4" 2.67 -

10

1"

8HTF8-SS 1" - 11 1/2 NPTF 316 stainless

1142.90

4.24 107.7 2.29 58.2 1-3/4" 2.67 -

10

1"

8HTBF8

1" - 11 BSPP

steel

289.57

4.24 107.7 2.29 58.2 1-3/4" 2.67 -

10

1"

8HTBF8-SS 1" - 11 BSPP 316 stainless

1142.90

4.24 107.7 2.29 58.2 1-3/4" 2.67 -

10

1"

8HTOF8 1-5/16" - 12 ORB

steel

289.57

4.24 107.7 2.29 58.2 1-3/4" 2.68 -

10

1"

8HTF10 1-1/4" - 11 1/2 NPTF

steel

301.15

4.34 110.2 2.29 58.2 2"

2.75 -

10

1"

8HTF10-SS 1-1/4" - 11 1/2 NPTF 316 stainless

1203.06

4.34 110.2 2.29 58.2 2"

2.75 -

10

1"

8HTBF10 1-1/4" - 11 BSPP

steel

301.15

4.29 109.0 2.29 58.2 2"

2.75 -

10

1"

8HTBF10-SS 1-1/4" - 11 BSPP 316 stainless

1203.06

4.29 109.0 2.29 58.2 2"

2.75 -

10

1"

8HTOF10 1-5/8" - 12 ORB

steel

301.15

4.24 107.7 2.29 58.2 2"

2.84 -

10
