110

DQC116

877.963.4966 •

dixonvalve.com

HTE-Series Hydraulic Couplings

Interchange Data:

Parker FEC-Series, Stucchi APM-Series, Faster 3FFH-Series

Materials:

Machined components are manufactured using solid steel

bar stock.

Steel componentry is plated using a ROHS Compliant Zinc

Nickel process providing superior corrosion resistance.

Stainless steel retaining rings and springs maximize

corrosion resistance and extend service life.

Nipples are hardened to provide resistance to brinneling

during impulse service.

⅜", ½", and ¾" nipples have molded Polyurethane valve

seals,with a temperature range of

-65°F

to

+212°F

(

-54°C

to

+100°C

).

⅝" and 1" nipples have Nitrile-Energized PTFE valve seals,

with a temperature range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Ancillary nipple seals are Nitrile (Buna-N), temperature

range of

-40°F

to

+250°F

(

-40°C

to

+121°C

).

Seal Components:

Body

Size

HTE-Series ISO16028 Connect Under Pressure Flushface Nipple

Steel HT Coupler/

HTE-Plug Coupled

HTE-Plug Uncoupled

Air

Inclusion

Fluid

Loss

Vacuum

Inch HG

Flow

ΔP = 14.5 PSI

Max. Working

Burst

Max. Working

Burst

PSI

Bar

PSI

Bar

PSI

Bar

PSI

Bar

3/8"

5000 345 20,000 1,380 5000 345 20,000 1,380 n/a 0.010cc N/R 9.5 GPM

1/2"

5000 345 20,000 1,380 5000 345 20,000 1,380 n/a 0.010cc N/R 15 GPM

5/8"

5000 345 20,000 1,380 5000 345 20,000 1,380 n/a 0.020cc N/R 18 GPM

3/4"

5000 345 20,000 1,380 5000 345 20,000 1,380 n/a 0.030cc N/R 24 GPM

1"

5000 345 20,000 1,380 5000 345 20,000 1,380 n/a 0.030cc N/R 44 GPM

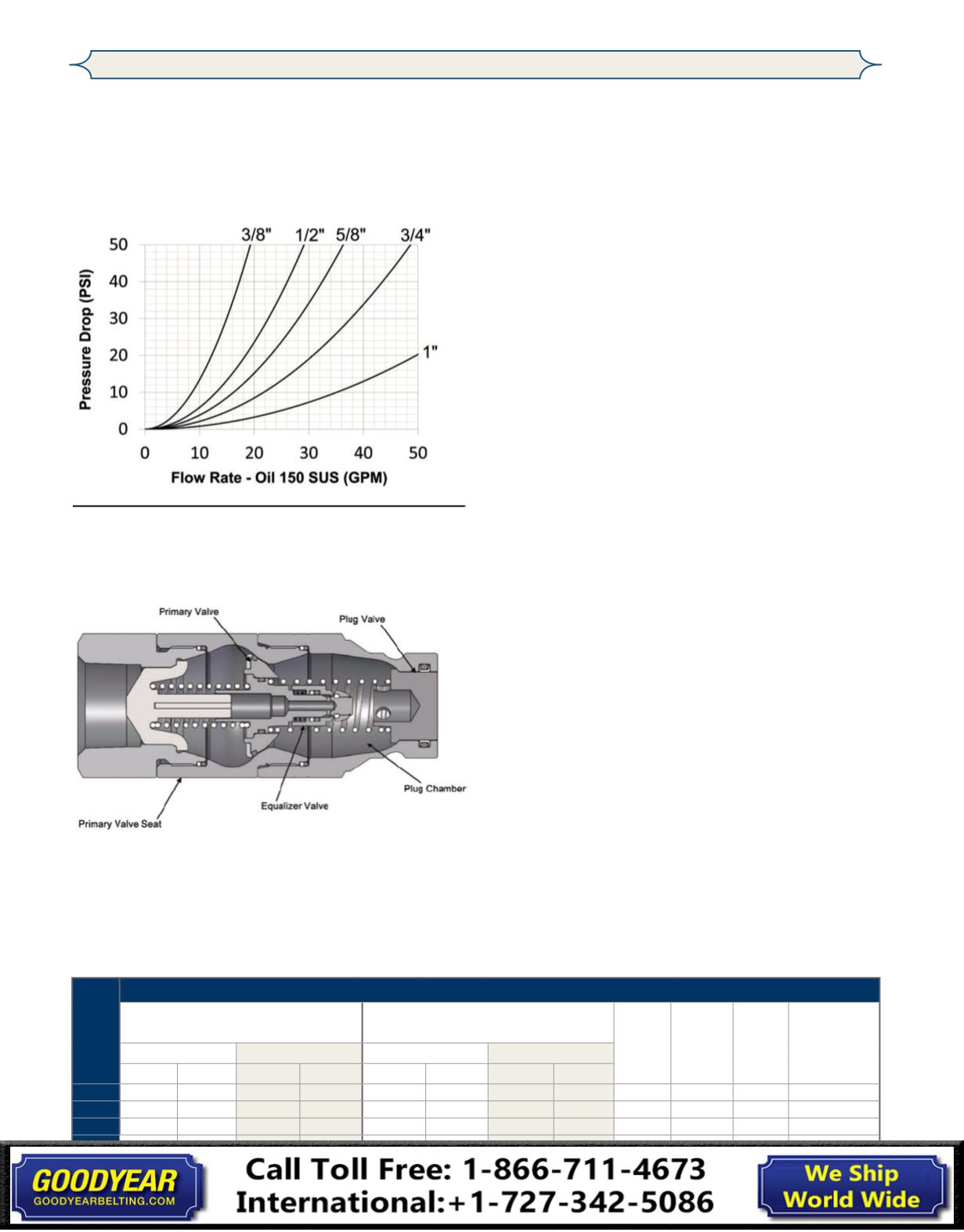

Rated Pressure Chart:

Benefits of the new Equalizer valve system!

Non-linear connection force at all pressures

No maximum connection-pressure restrictions

Head pressure or valve bleed-by has minimal effect on

connection force

Less susceptible to system contamination

Design is scalable performing similarly in all sizes

Smooth connection action

Component Terminology
