101

DQC116

877.963.4966 •

dixonvalve.com

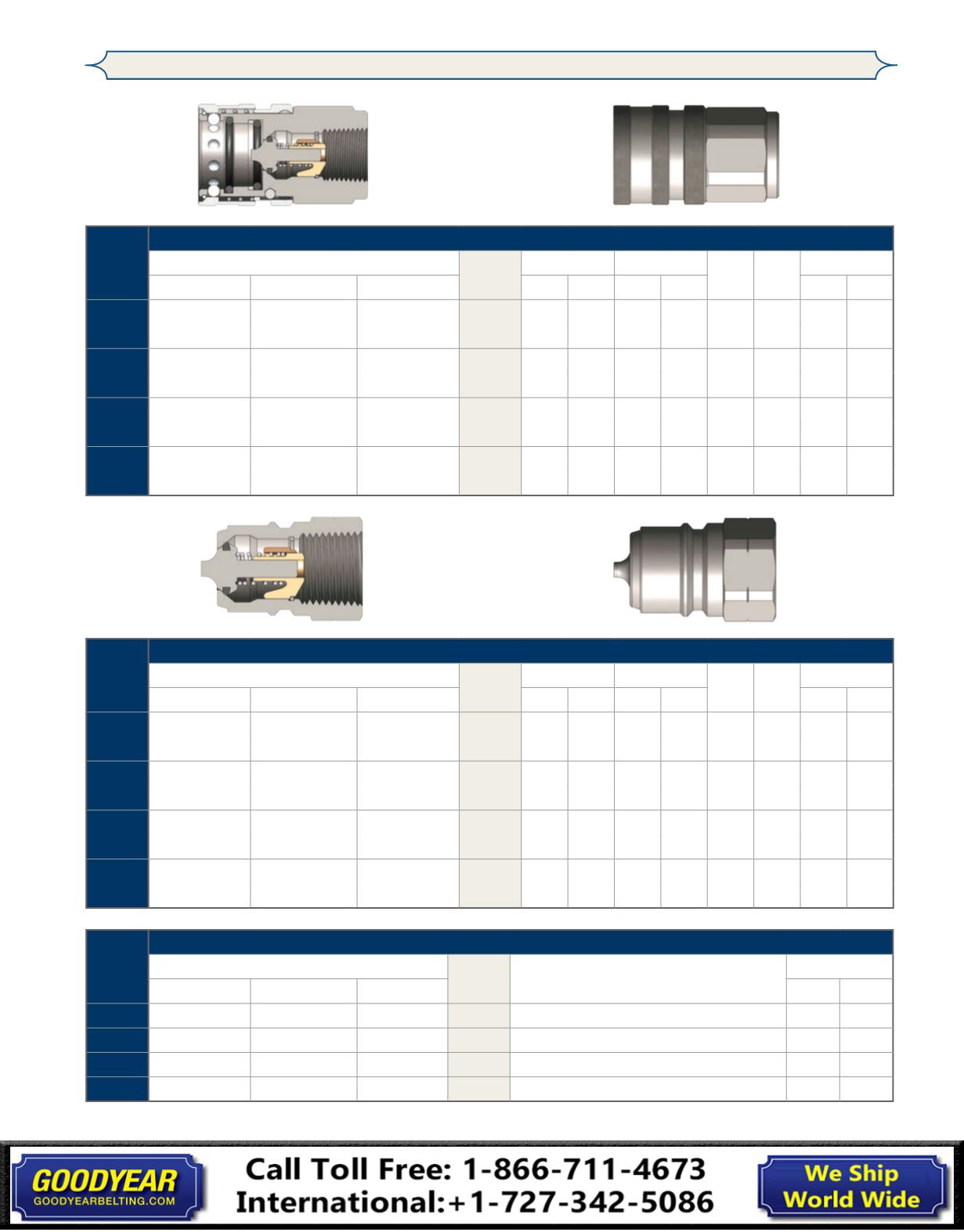

TR-Series Hydraulic Couplings

Body

Size

TR-Series TEMA European Interchange Coupler (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

mm

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

3/8"

3TRF3 3/8" - 18 NPTF steel

$85.23

2.52 64.0 1.38 35.0 30 0.51 10 50

3/8"

3TRBF3 3/8" - 19 BSPP steel

85.23

2.52 64.0 1.38 35.0 30 0.51 10 50

1/2"

4TRF4 1/2" - 14 NPTF steel

101.21

2.62 66.5 1.57 40.0 36 0.80 5 25

1/2"

4TRBF4 1/2" - 14 BSPP steel

101.21

2.62 66.5 1.57 40.0 36 0.80 5 25

3/4"

6TRF6 3/4" - 14 NPTF steel

129.99

3.35 85.0 2.05 52.0 41 1.40 -

10

3/4"

6TRBF6 3/4" - 14 BSPP steel

129.99

3.35 85.0 2.05 52.0 41 1.40 -

10

1"

8TRF8 1" - 11 1/2 NPTF steel

196.76

3.90 99.0 2.56 65.0 55 1.95 -

10

1"

8TRBF8 1" - 11 BSPP

steel

196.76

3.90 99.0 2.56 65.0 55 1.95 -

10

Body

Size

TR-Series TEMA European Interchange Nipple (Female Threads)

Part Detail

List

Price

Length Maximum OD Hex

mm

Weight

Lb

Package Qty

Part Number

Threads

Material

Inch mm Inch mm

Bag Box

3/8"

TR3F3 3/8" - 18 NPTF steel

$31.00

1.59 40.5 1.00 25.4 22 0.16 10 50

3/8"

TR3BF3 3/8" - 19 BSPP steel

31.00

1.59 40.5 1.00 25.4 22 0.16 10 50

1/2"

TR4F4 1/2" - 14 NPTF steel

35.74

1.63 41.5 1.23 31.1 27 0.26 5 25

1/2"

TR4BF4 1/2" - 14 BSPP steel

35.74

1.63 41.5 1.23 31.1 27 0.26 5 25

3/4"

TR6F6 3/4" - 14 NPTF steel

56.93

2.20 56.0 1.63 41.5 36 0.46 -

10

3/4"

TR6BF6 3/4" - 14 BSPP steel

56.93

2.20 56.0 1.63 41.5 36 0.46 -

10

1"

TR8F8 1" - 11 1/2 NPTF steel

84.16

2.48 63.0 2.09 53.0 46 0.80 -

10

1"

TR8BF8 1" - 11 BSPP

steel

84.16

2.48 63.0 2.09 53.0 46 0.80 -

10

Body

Size

TR-Series TEMA European Coupler Seal Kits

Part Detail

List

Price

Seal Kit Contents

Package Qty

Part Number Coupler Style Seal Material

Bag Box

3/8"

3TR-SKIT

all

Nitrile

$4.88

Two O-Rings and One PTFE Back-Up Ring 25 200

1/2"

4TR-SKIT

all

Nitrile

5.67

Two O-Rings and One PTFE Back-Up Ring 25 200

3/4"

6TR-SKIT

all

Nitrile

7.51

Two O-Rings and One PTFE Back-Up Ring 25 200

1"

8TR-SKIT

all

Nitrile

9.98

Two O-Rings and One PTFE Back-Up Ring 25 200

Please contact Dixon™ for dust caps and dust plugs
